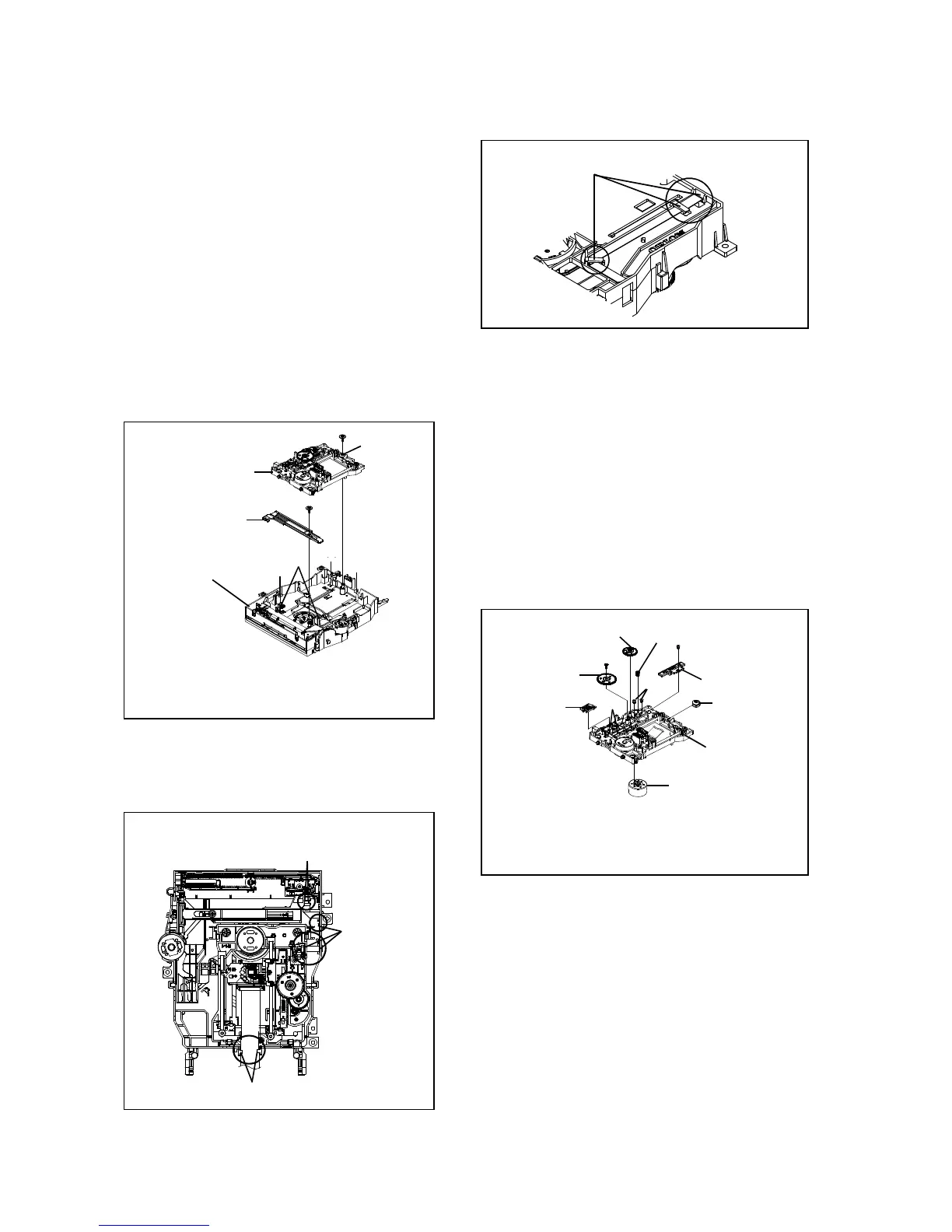

2. REMOVAL OF DVD DECK PART
S
NOTE
1. Disassemble only the DVD DECK PARTS parts listed
here. Minute adjustments are needed if the
disassembly is done. If the repair is needed except
listed parts, replace the DVD MECHA ASS'Y.
2-1: TRAVERSE ASS'Y/LOADING MOTOR PCB ASS'Y/
PLATE TRVS UD (Refer to Fig. 2-1-A)
1. Remove the screw (1).
2. Remove the screw (2). 2.2: INSULATOR (R)/FEED RACK ASS'Y/
3. Unlock the 5 supports (3). PCB630/GEAR MIDDLE/GEAR FEED/
4. Remove the Insulator (R) from the Loader Ass'y. FEED MOTOR/GEAR MOTOR
5. Remove the Traverse Ass'y and Plate Trvs Ud. (Refer to Fig. 2-2-A)
1. Remove the Insulator (R).
2. Remove the screw (1).
3. Remove the Feed Rack Ass'y.
4. Unlock the 2 supports (2).
5. Remove the PCB630.
6. Remove the screw (3).
7. Remove the Gear Feed.
8. Remove the Gear Middle.
9.
Remove the 2 screws (4).
DISASSEMBLY INSTRUCTIONS
Traverse Ass'y
Insulator (R)
(1)
(2)
Plate TRVS UD
(
3
)
(
3
)
Fig. 2-1-C
Check Lock
B2-1
9
.
Remove
the
2
screws
(4)
.
10. Remove the Gear Motor.
11. Remove the Feed Motor.
• Screw Torque: 1.0 ± 0.3kgf•cm (screw(1))
• Screw Torque: 3.0 ± 0.3kgf•cm (screw(2))
NOTE
1. In case of the Traverse Ass'y installation, hook the wire
on the Loader Ass'y as shown Fig. 2-1-B to Fig. 2-1-C.
• Screw Torque: 1.3 ± 0.3kgf•cm (Screw (1))
• Screw Torque: 2.5 ± 0.3kgf•cm (Screw (3))
• Screw Torque: 1.0 ± 0.3kgf•cm (Screw (4))
Loader Ass'y (Top side)
Loader Sub Ass'y
(
)
(3)
(
3
)
Fig. 2-1-A
Fig. 2-1-B
Check Lock
Check Lock
Check Lock
(3)
Chassis
Feed Motor
Gear Middle
(4)
(3)
Gear Feed
(2)
(1)
PCB630
Feed Rack Ass'y
Gear Motor
Fig. 2-2-A
Insulator (R)
B2-1
