Using digital audio output
It is possible to output audio through the COAXIAL
DIGITAL AUDIO OUTPUT terminal. (See page 23 for
details.) PCM audio outputs from the terminal.
To coaxial digital input of
external audio devices
Coaxial digital cable

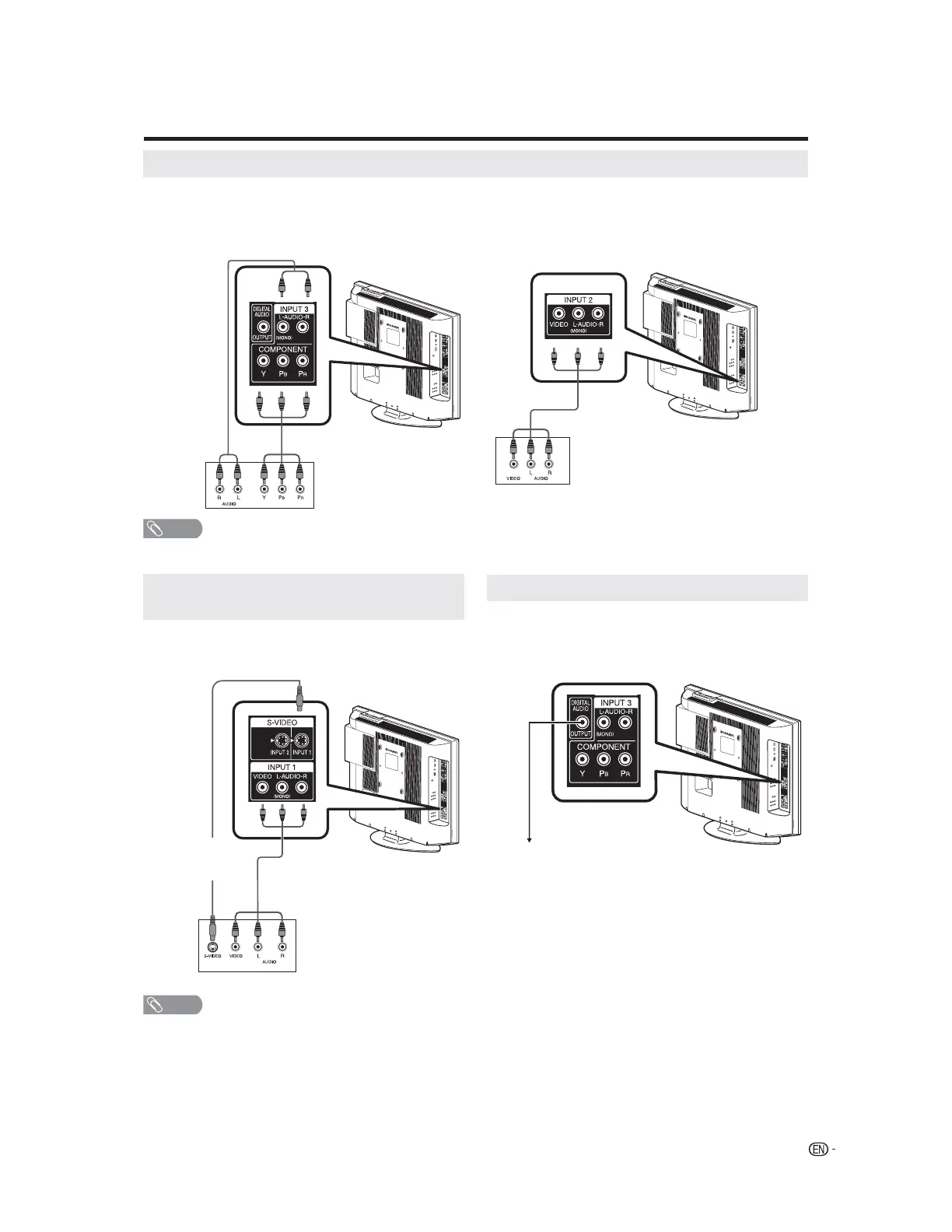

Connecting a DVD player or a digital TV STB (Cable)
You can use the INPUT1–4 terminals when connecting to a DVD player, a Digital TV STB (Cable) and other
audiovisual equipment.
DVD player/
Digital TV STB
NOTE
• See page 16 for connecting a DVD player or a Digital TV STB to the HDMI terminal.
Connecting a VCR, game console or
camcorder
A VCR, game console, camcorder and other
audiovisual equipment can be conveniently connected
using the INPUT1 or 2 terminals.
VCR/Game console/
Camcorder
When using component cable. (INPUT3) When using composite cable. (INPUT1 or 2)
Component video cable
(commercially available)
Audio cable
(commercially
available)
AV cable
(commercially available)
DVD player/
Digital TV STB
NOTE
• The S-video terminal takes priority over the video
terminals.
AV cable
(commercially
available)
S-video cable
(commercially
available)
Using external equipment
