Sharp LC-26SA1E Service Manual

LC-26SA1E/RU, LC-32SA1E/RU
4 – 7

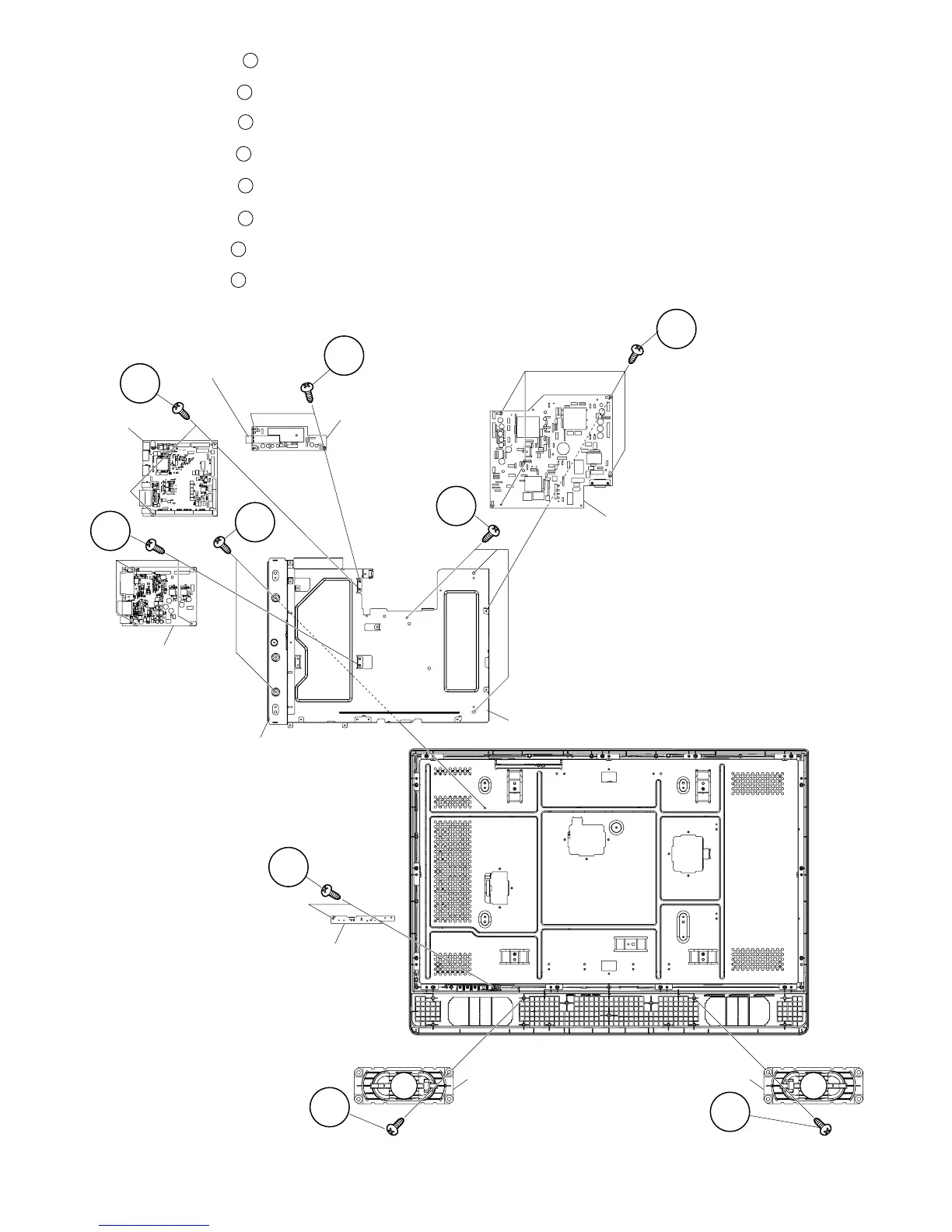

9. Remove the 4 lock screws and detach the Power Unit.
10.Remove the 2 lock screws and detach the Tuner Unit and Tuner Earth Plate.
11.Remove the 2 lock screws and detach the Main Unit.
12.Remove the 4 lock screws and detach the AV Unit.
13.Remove the 5 lock screws detach the Terminal Angle and the Chassis Tray.
14.Remove the 2 lock screws and detach the R/C,LED Unit.
15.Remove the 1 lock screw and detach the Sperker R.
16.Remove the 1 lock screw and detach the Sperker L.
10
11
12
13
14
15
16
17
Chassis Tray
Power Unit
10
11
14
12
15
16
17
Tuner Unit
AV Unit
Terminal Angle
R/C,LED Unit
Speaker R
Speaker L
Main Unit
Tuner Earth Plate
14
13

Sharp LC-26SA1E Specifications

General

Brand	Sharp
Model	LC-26SA1E
Category	LCD TV
Language	English
