Sharp LC-26SA1E - Chapter 8. Overall Wiring Diagram;Block; Overall Wiring Diagram

LC-26SA1E/RU, LC-32SA1E/RU
8 – 1
LC-26SA1E
Service Manual
CHAPTER 8. OVERALL WIRING DIAGRAM/BLOCK DIAGRAM

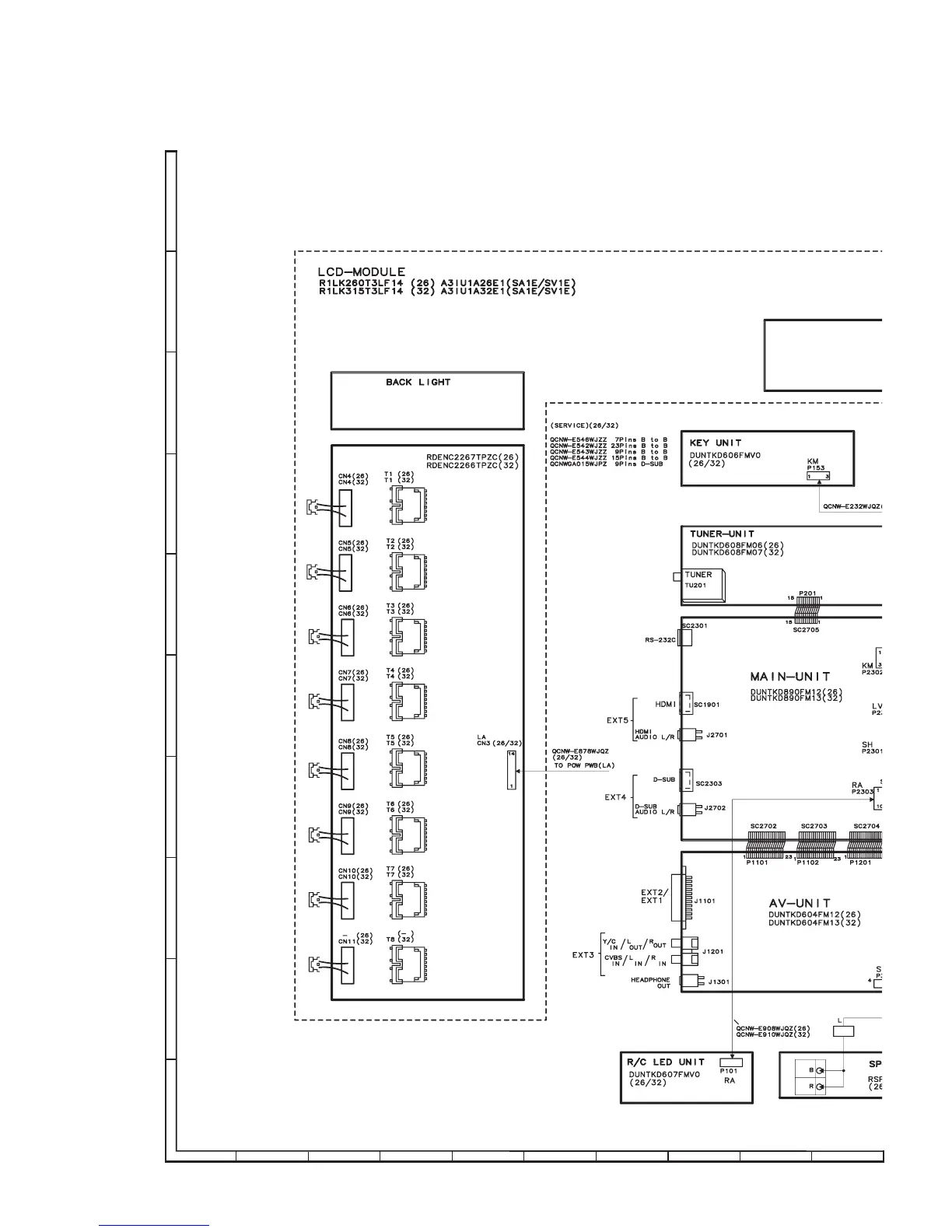

[1] OVERALL WIRING DIAGRAM


  
,
#
$
%
&
'
(
)
*
+
عWIRIN DIAGRAM
