Sharp LC-26SB25S Service Manual

2008-03-14
LC-26SB25E/S/RU, LC-32SB25E/S/RU, LC-42SB55E/S/RU
169
NO. PARTS CODE DESCRIPTION
CABINET PARTS(LC-26SB25E)
30 705TP834023 BEZEL ASSY
35 705TP833007 KEY PAD ASSY
40 705TP834024 REAR COVER ASSY
50 705TP837008 BASE ASSY
60 705TP837012 BASE STAND ASSY
90 P15T0424101 BRACKET_SUPPORT
91 P15T0422101 BRACKET_HOLD_TOP
92 P15T0421101 BRACKET_HOLD_BOTTOM
93 P15T0420101 BRACKET_BASE
94 P15T0423101 BRACKET_VESA
95 P15T0328101 BKT-IO-EUO
97 0M1T 940 16 47 CR3 SCREW M4X6
98 0Q1T 940 16 47 CR3 SCREW
98 A15T0285201 bkt-pwrpcb-holder-t
98 0Q1T 940 16 47 CR3 SCREW
100 0M1T1430 5120 SCREW TAPPING M3X5
101 0M1T1730 8 47 CR3 SCREW
102 0M1T1140 6120 SCREW 4*6MM
102 0M1T1140 6120 SCREW 4*6MM
106 0Q1T1830 12 47 CR3 SCREW_THW K30x12 PT W=8.5
107 0M1T 330 4120 SCREW
1050 750TVM260B1113N000 PANEL V260B1-L11 NH CMO
1053 CBPF82MBPM Main Pcb Assy SHARP 26"-CMO
1054 ADTV82420PA3 POWER PCB ASSY
1056 IRPF8PB7 IR PCB ASSY
1057 KEPF8PB2 KEY BOARD

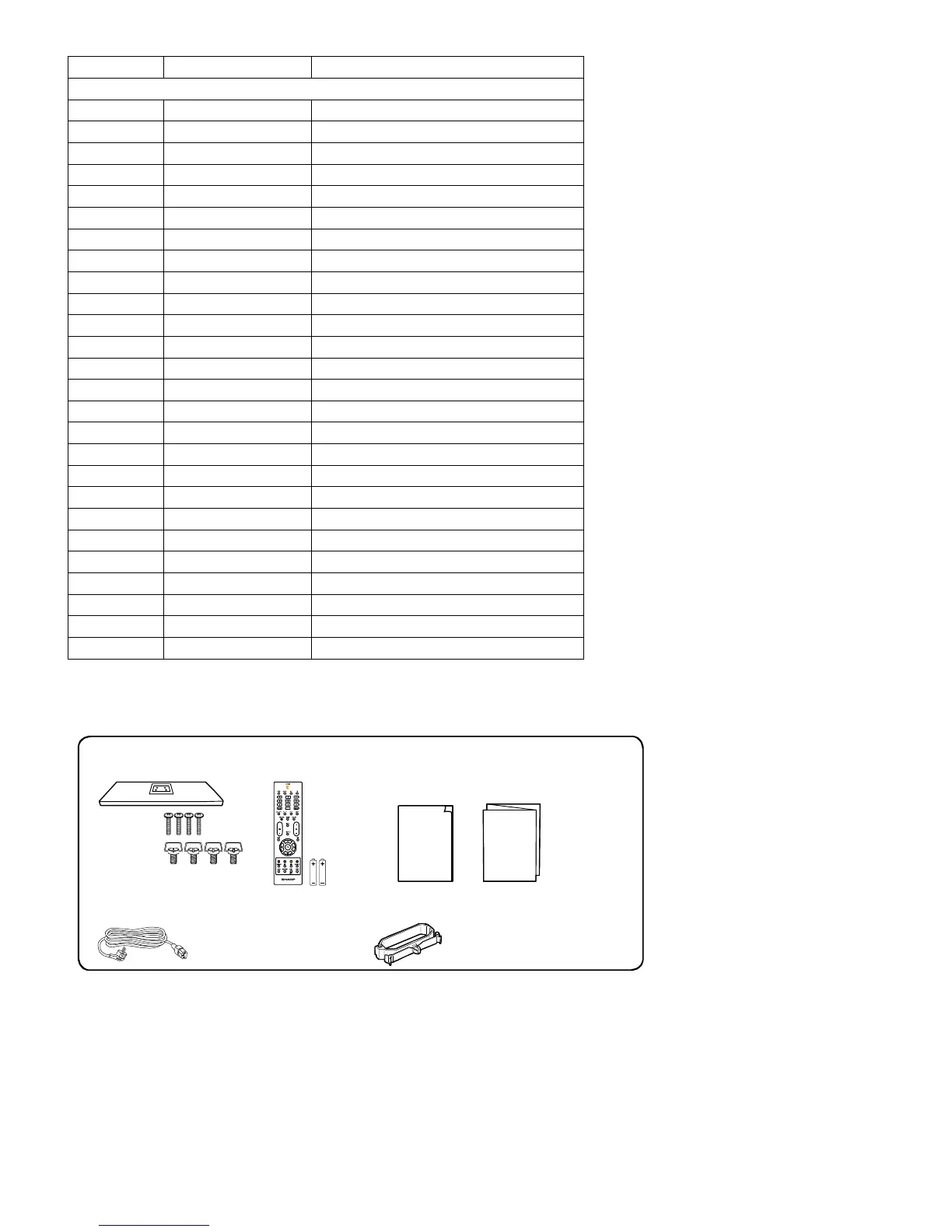

[3] SUPPLIED ACCESSOORIES
Stand unit and Screws Remote control unit(X1)
AAA battery(X2)
Operation manual Quick Setup Guide
Operation manual
Quick Setup Guide
26"
32"
42"
AC cord (X1)
Product shape varies in some countries
Cable clamp (g1)
Attached on the neck
