84
LC-26SB25E/S/RU, LC-32SB25E/S/RU, LC-42SB55E/S/RU
IR Unit (Side-A)

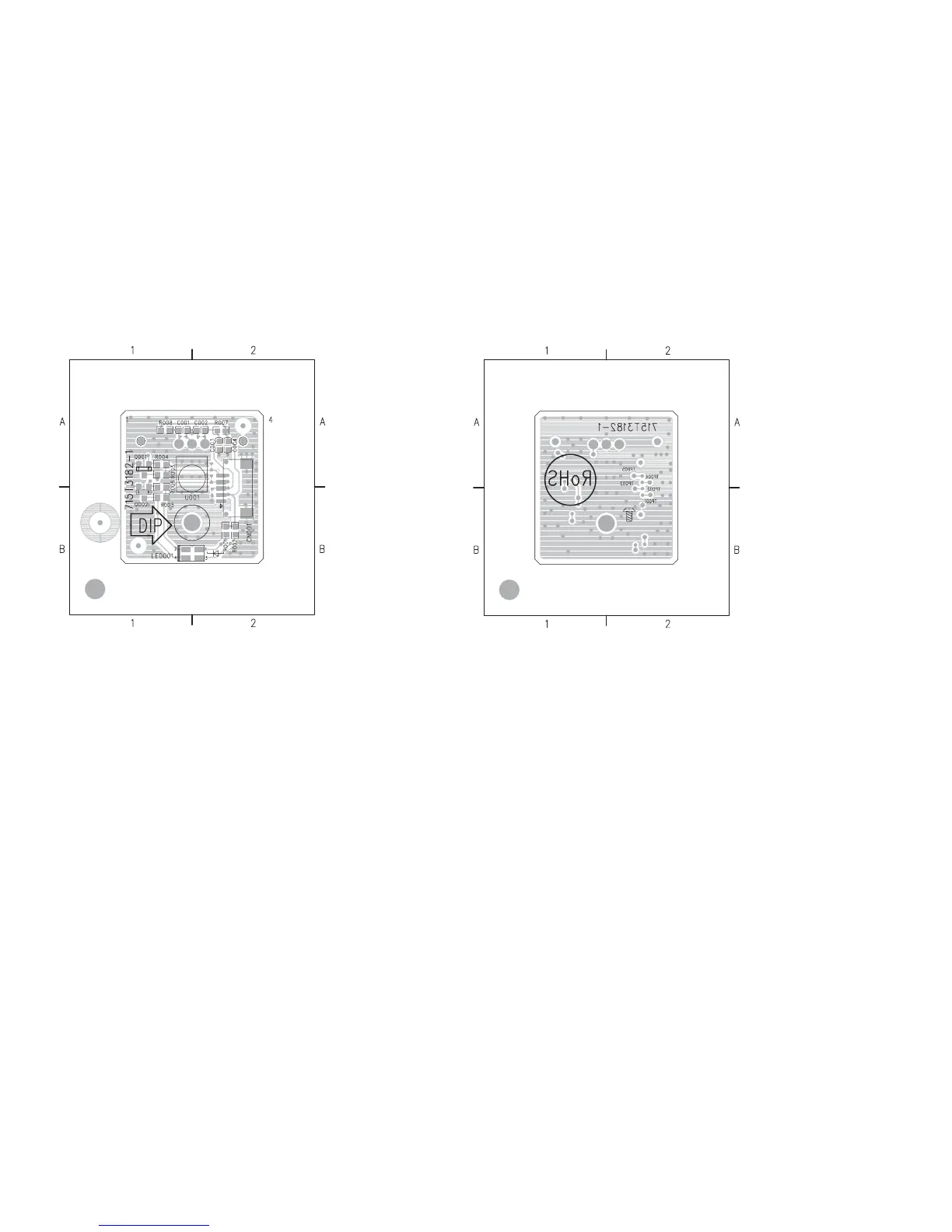

[4] IR UNIT PRINTED WIRING BOARD
IR Unit (Side-B)
C001 A1
C002 A2
C003 A2
C004 A2
CN001 B2
LED001 B1
Q001 A1
Q002 B1
R001 B2
R002 B2
R003 A1
R004 A1
R005 B1
R006 A1
R007 A2
R008 A1
U001 A2
