LC-26SB25E/S/RU, LC-32SB25E/S/RU, LC-42SB55E/S/RU
19

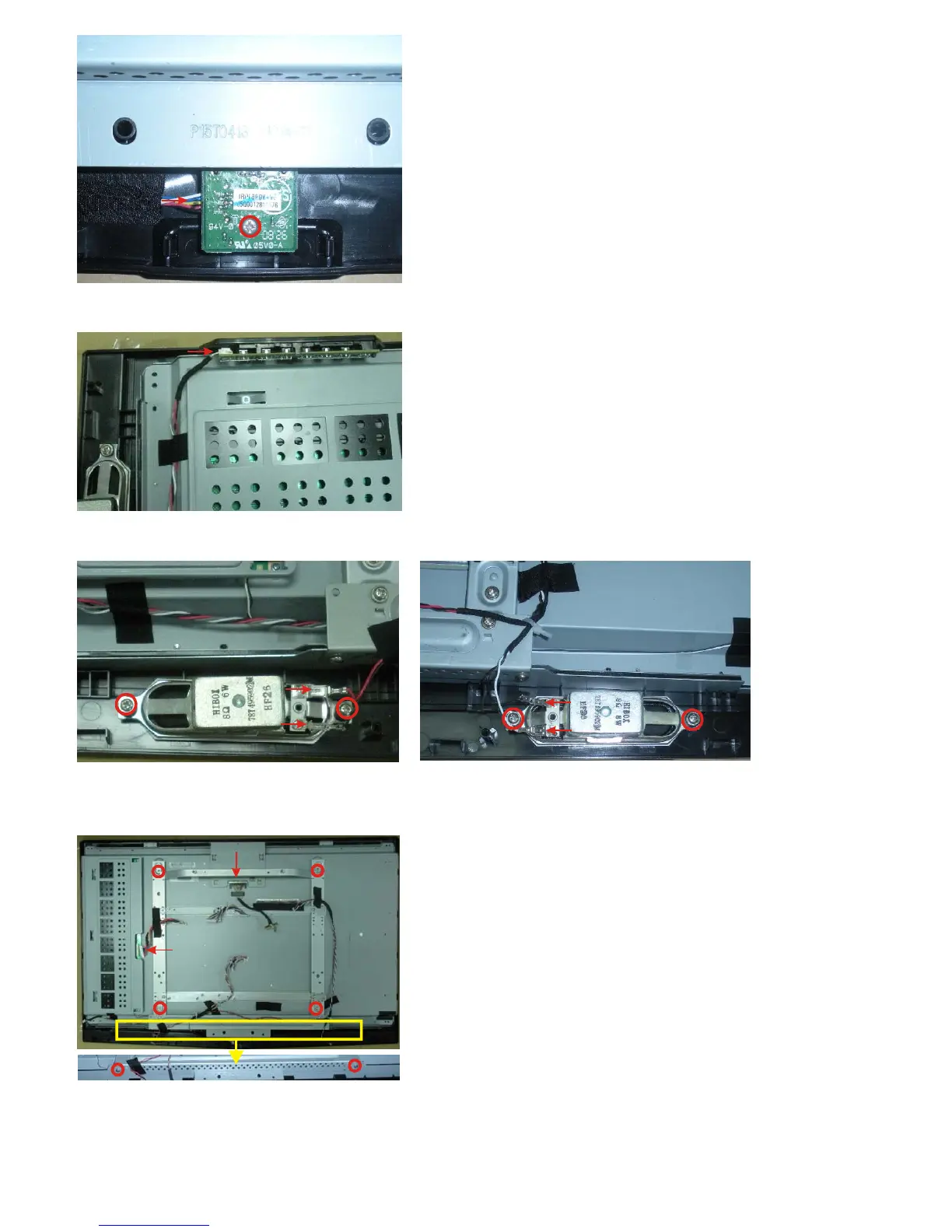

Fig.10
4. Disconnect 1 cable. Detach the Key board as Fig.11.
Fig.11
5. Remove the 4 screws and disconnect 4 cables. Detach the Speakers as Fig.12 and Fig.13.
Fig.12 Fig.13
Step 4. Remove the Metal Frame.
1. Remove the 6 screws and disconnect 2 cables. Detach the Metal Frame as Fig.14.
Fig.14
Step 5. Remove the Bezel Assy.
1. Remove the 6 screws. Detach the Bezel Assy as Fig.15~Fig.17.
