LC-26SB25E/S/RU, LC-32SB25E/S/RU, LC-42SB55E/S/RU
60
2. Detailed ICs Information
2.1. U400 (MT5337PKR PBGA-465. The block diagram and Pin connections of MT5337PKR are same as those of MT5336PKR.)

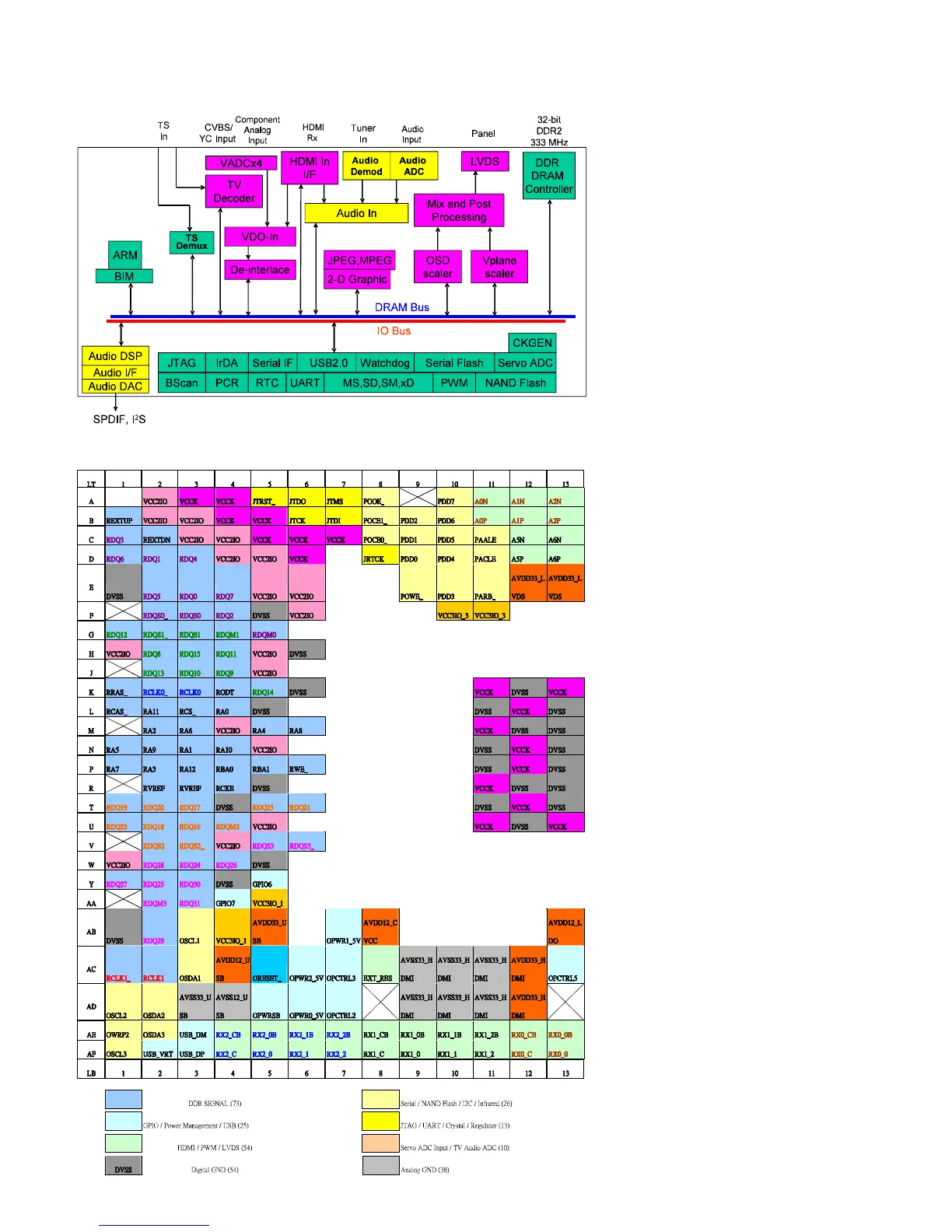

2.1.1 Block Diagram
2.1.2 Pin Connections and short description
