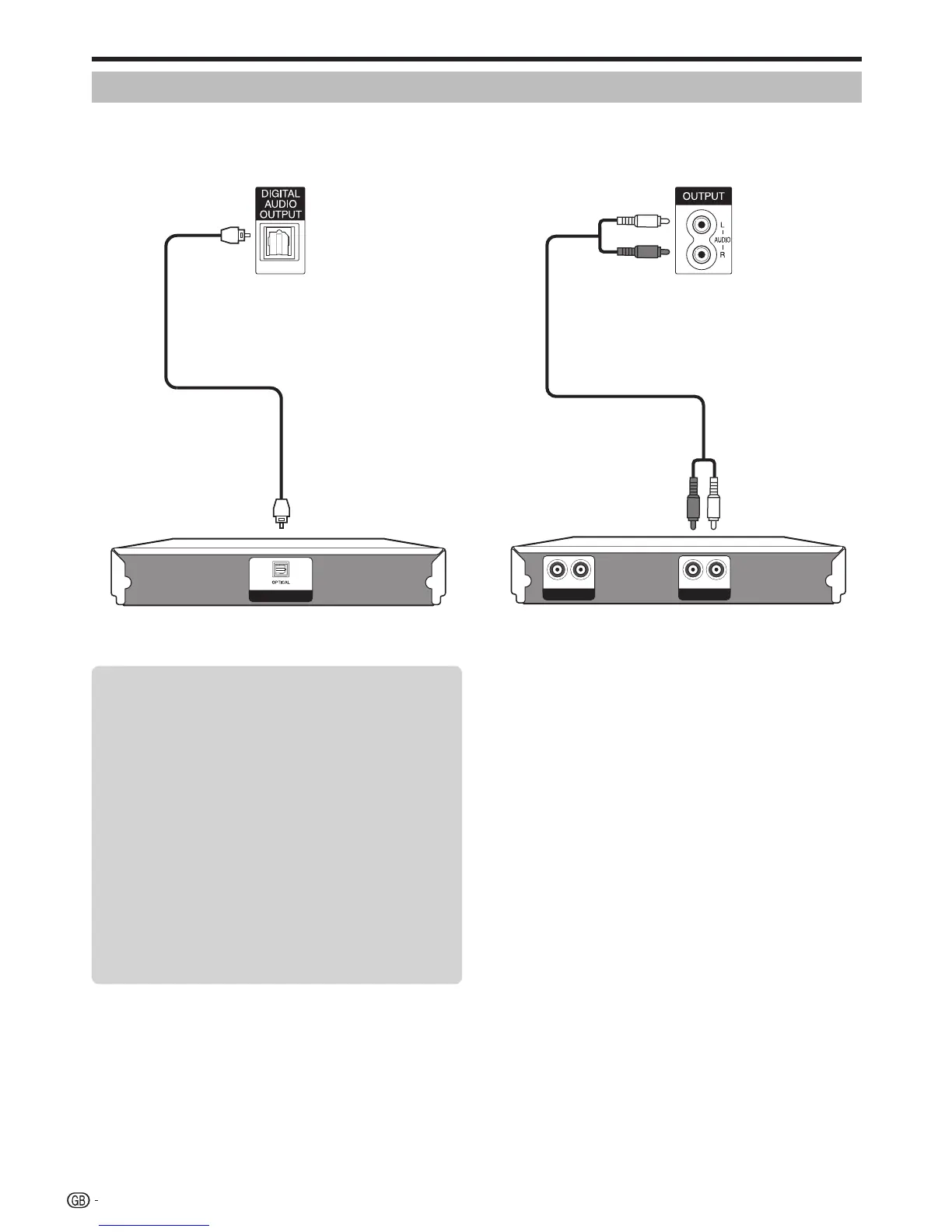

LC-32D65E/RU, LC-37D65E/RU
2 – 9
5. Remove the 1 lock screw 1 lock screw and detach the Speaker (L) , (R) .
6. Remove the 2 lock screws , the 4 hooks and detach the INVETER Unit.
7. Remove the 3 lock screws , the 2 hooks and detach the POWER Unit.
8. Remove the 7 lock screws , 1 lock screw and detach the MAIN Unit.
9. Remove the 1 lock screw and detach the Control Cover Ass’y from the MAIN Unit.
1
2
3
4
5
6
7
8
9
POWER Unit
INVERTER Unit
Speaker(R) Speaker(L)
POWER
PWB
Holder
POWER
PWB
Holder
MAIN Unit
Control Cover Ass'y
4
21
3
5
6
7
9
8
