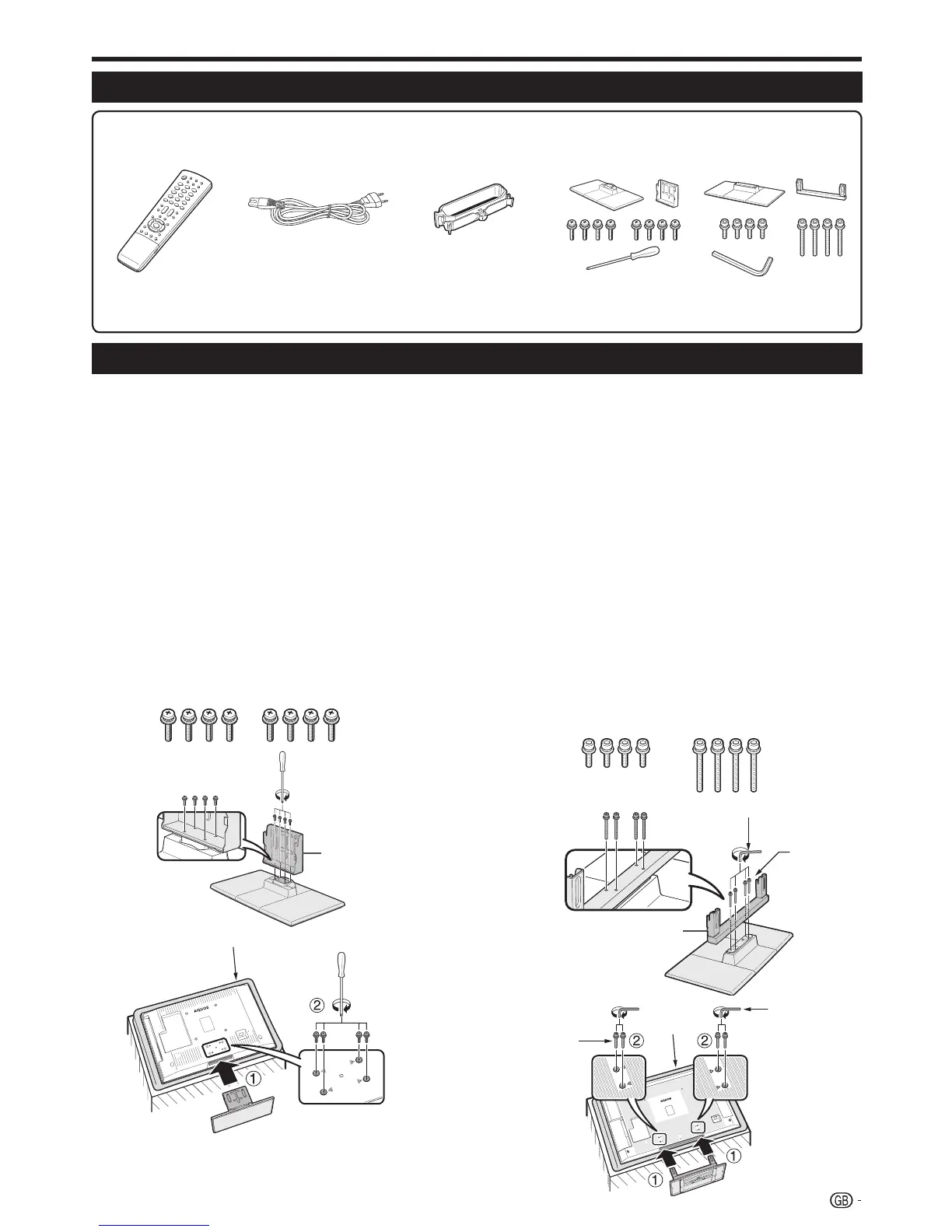

Confirm that there are eight screws with the stand unit.
LC-32DH66E/LC-37DH66E:
Attach the
supporting post for the stand unit onto the base
using the four screws with the screw driver
(supplied) as shown.
LC-46DH66E/LC-52DH66E:
Attach the
supporting post for the stand unit onto the base
using the four long screws with the hex key
(supplied) as shown.
1
2
Preparation
Inserting the stand.
Insert the stand into the openings on the
bottom of the TV (Hold the stand so it will
not drop from the edge of the base area).
LC-32DH66E/LC-37DH66E: Insert and
tighten the four screws into the four holes
on the rear of the TV.
LC-46DH66E/LC-52DH66E: Insert and
tighten the four short screws into the four
holes on the rear of the TV.
3
1
2
Supplied accessories
Attaching the stand unit
Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
Before performing work, spread cushioning over the surface on which you will be laying the TV. This will prevent
it from being damaged.
CAUTION
Attach the stand in the correct direction.
Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
•
•
•
•
NOTE
To detach the stand unit, perform the steps in reverse order.•
5
Remote control unit
(g1)
AC cord (g1)
Stand unit (g1)
Cable clamp (g1)
Pages 3 and 6 Page 5
Page 8Page 8
Operation manual (This publication)•
“AAA” size alkaline battery (g2) ... Page 6•
Product shape varies in
some countries.
Long
screw
Short
screw
Supporting post
Soft
cushion
Hex key
LC-46DH66E
LC-52DH66E
LC-32DH66E
LC-37DH66E
LC-32DH66E/LC-37DH66E:
LC-46DH66E/LC-52DH66E:
Hex key
Supporting post
Soft cushion
1
2
3
1
2
3
To Next Page
