Sharp LC-32DH57E-BK User Manual

LC-32DH57E-BK/RU-BK/S-BK
2 – 2

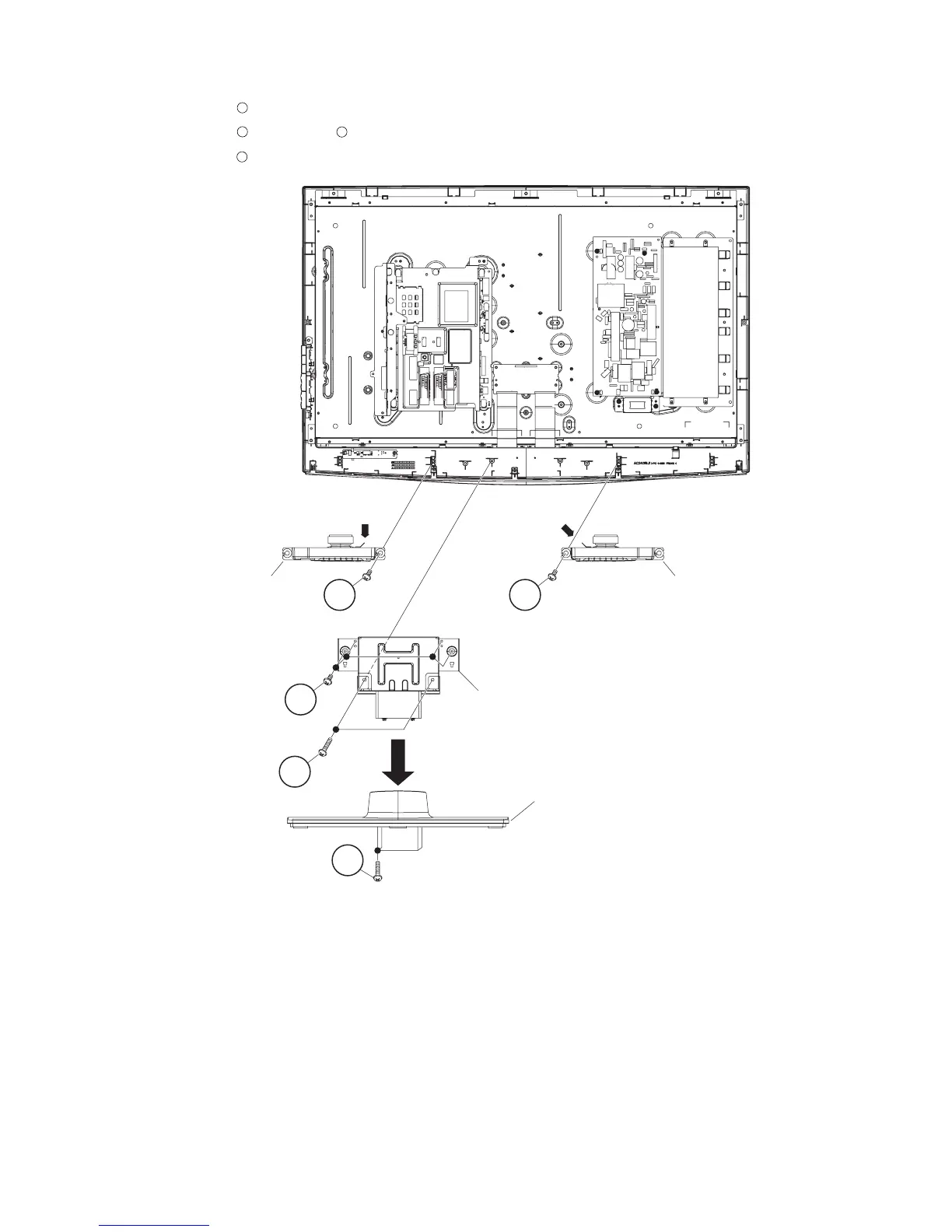

2. Removing of Connectors, Speakers, Stand Angle Ass’y and Stand Ass’y.
1. Remove all the connectors from all the PWBs.
2. Remove the 2 lock screws and detach the Speaker-L and Speaker-R.
3. Remove the 2 lock screws , 4 lock screws and detach the Stand Angle Ass’y.
4. Remove the 4 lock screws and detach the Stand Ass’y.
1
2
3
4
Speaker-R
1
3
2
4
Speaker-L
Stand Ass'y
Stand Angle Ass'y
1
[SP] [SP]
