LC-32LE225
MAIN Unit
12
9
Speaker (L)
8
Speaker (R)
10
LED PWB
POWER Unit
14
11
13
CONNECTIVITY Unit
MAIN Unit
12
9
Speaker (L)
8
Speaker (R)
10
LED PWB
POWER Unit
14
11
13
CONNECTIVITY Unit
LC32LE225E models:
LC32LE225EB models:

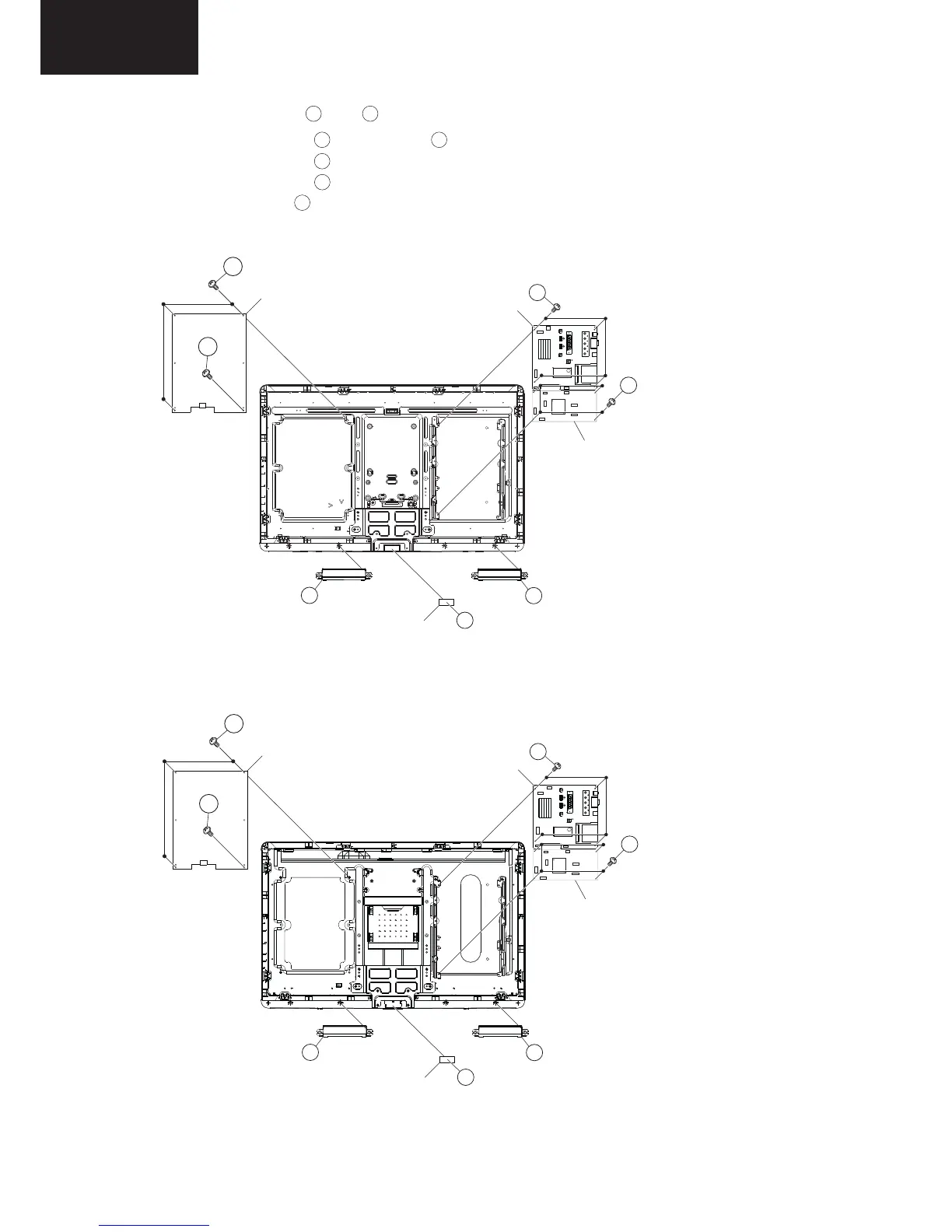

Removing of major parts (Continued)
5. Remove the speaker (R)  , (L) .
6. Remove the 3 lock screws , 1 lock screw and detach the POWER Unit
.
7. Remove the 4 lock screws , and detach the MAIN Unit.
8. Remove the 4 lock screws , and detach the CONNECTIVITY Unit. .
9. Remove the LED PWB . .
8
9
10
11
12
14
13
