17
LC-32LE225

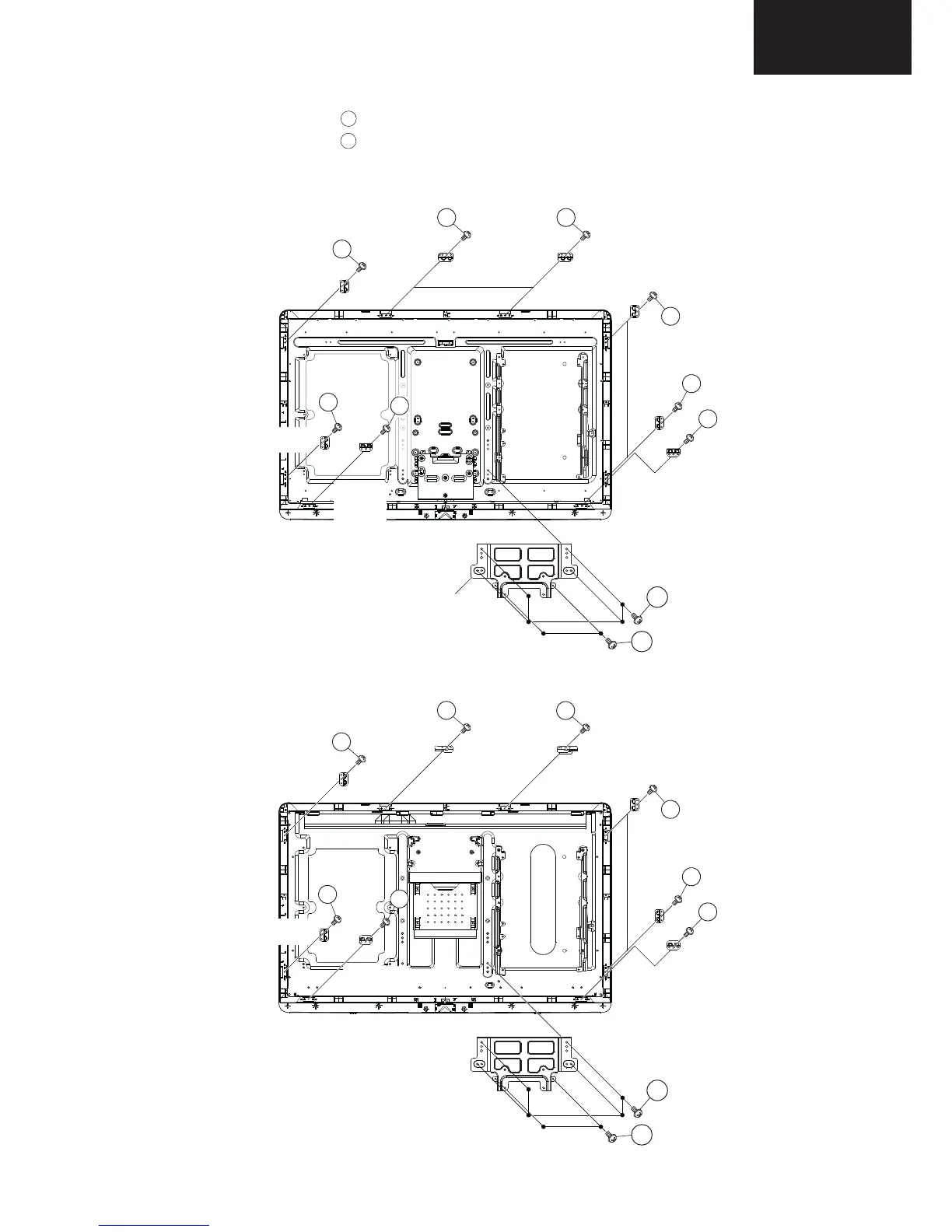

Removing of major parts (Continued)
Panel Brackets TOP
Panel Bracket
CENTER
Panel Bracket
CENTER
Panel
Brackets
CENTER
Panel
Bracket
BOTTOM
Panel
Bracket
BOTTOM
16
16 16
16
16
16
16
16
15
15
Stand angle
15
15
Panel Bracket
TOP RIGHT
16
16
Panel Bracket
TOP LEFT
Panel Bracket
CENTER
16
Panel Bracket
CENTER
16
Panel Bracket
BOTTOM
16
Panel
Brackets
CENTER
Panel
Bracket
BOTTOM
16
16
16
LC32LE225E models:
LC32LE225EB models:
9. Remove the 6 lock screws and detach the stand angle.
10. Remove the 8 lock screws and detach the panel brackets.
15
