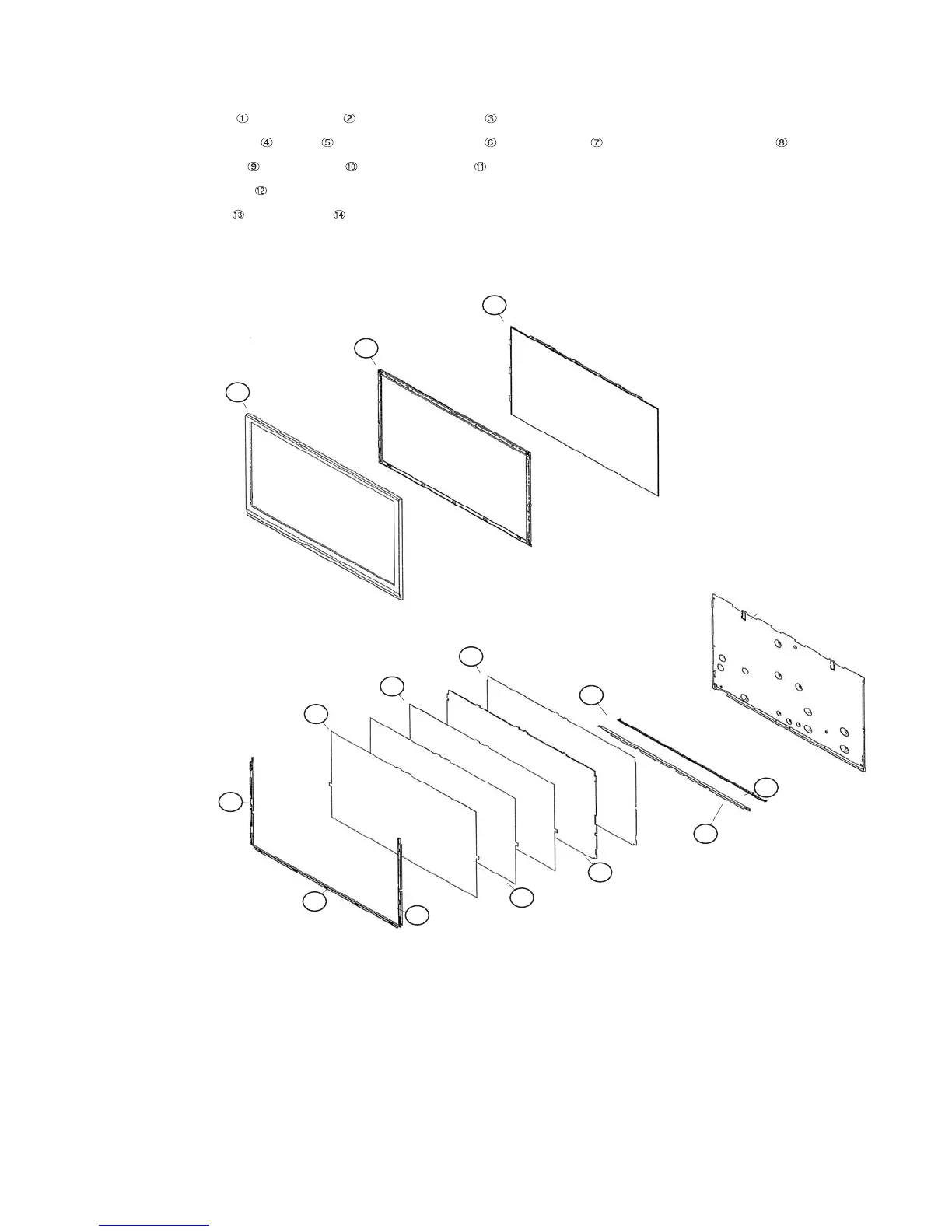

5. Removing LCD Panel Unit
1. Detach the LED PWB-A , LED PWB-B and Heat Spreader .
2. Detach the Reflection Sheet , LGP , Lower Diffusion Sheet , Prism Sheet and Upper Diffusion Sheet .
3. Detach the Bottom Frame , Left Frame and Right Fra me .
4. Detach the LCD Panel Unit .
5. Detach the Bezel Ass’y from CAB-A .
2 LED PWB-B
3
4
Heat Spreader
Reflection Sheet
14
13
12
5
LGP
8
Upper Diffusion Sheet
6
Lower Diffusion Sheet
7
Prism Sheet
10
Left Frame
11
Right Frame
9
Bottom Frame
Bezel Ass'y
LCD Panel Unit
CAB-A Ass'y
1
LED PWB-A
Chassis Ass'y
