LC-32LE345T
3 – 1
CHAPTER 3. OPERATION MANUAL
[1] OPERATION MANUAL

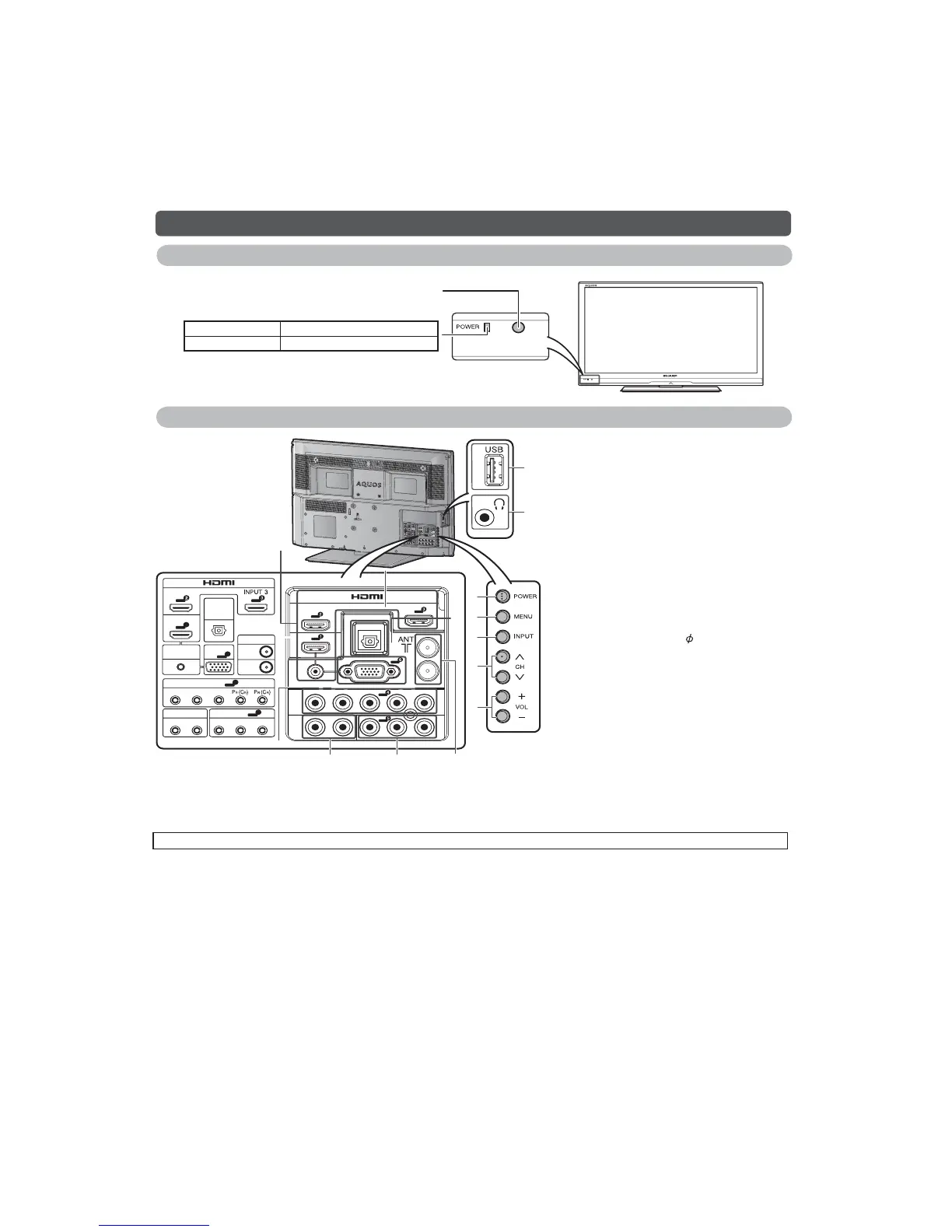

Part names
TV (Front)
POWER indicator
Lighted (Red) The TV is in standby mode.
Lighted (Green) The TV is on.
Remote control sensor
TV (Rear)
DIGITAL
AU D IO
OUTPUT
INP UT 2
INP UT 1
AUD IO IN
(R/L)
INP UT6
INP UT5
R -AUDIO-L
R -AUDIO-L R -AUDI O-L
VIDEO
Y
AU D IO OUT
INP UT4
PC
ANTENNA
CABLE
AIR
1
6
4
5
1
2
3
4
5
14
13
10
9
12
11
6
87
1POWER(On/Off) button
2 MENU button
3INPUTbutton
4 Channel up (
r
)/down (
s
) buttons
5 Volume up (
e
)/down (
f
) buttons
6 INPUT 1*/INPUT 2/INPUT 3 (HDMI)
terminal
7 INPUT 4 terminals
8 AUDIO OUT terminals
9 INPUT 5 terminals
10 Antenna input terminal (AIR/CABLE)
11 INPUT 6 PC terminal*
12 DIGITAL AUDIO OUTPUT terminal
13 USB terminal**
14 Headphone jack (
3.5 mm)
• The speakers do not output volume
when headphones are plugged in.
* The INPUT 1 and INPUT 6 PC terminals can both use the same analogue audio input terminal. However, the proper item
must be selected in the “HDMI Audio Select” menu.
• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
**
USB terminal use for USB media player.
