CHAPTER 4. REMOVING OF MAJOR
PARTS
LC-32LE240M/340M/240M-RD,WH/340M-RD,WH/243M
5GTXKEG/CPWCN

[1] REMOVING OF MAJOR PARTS

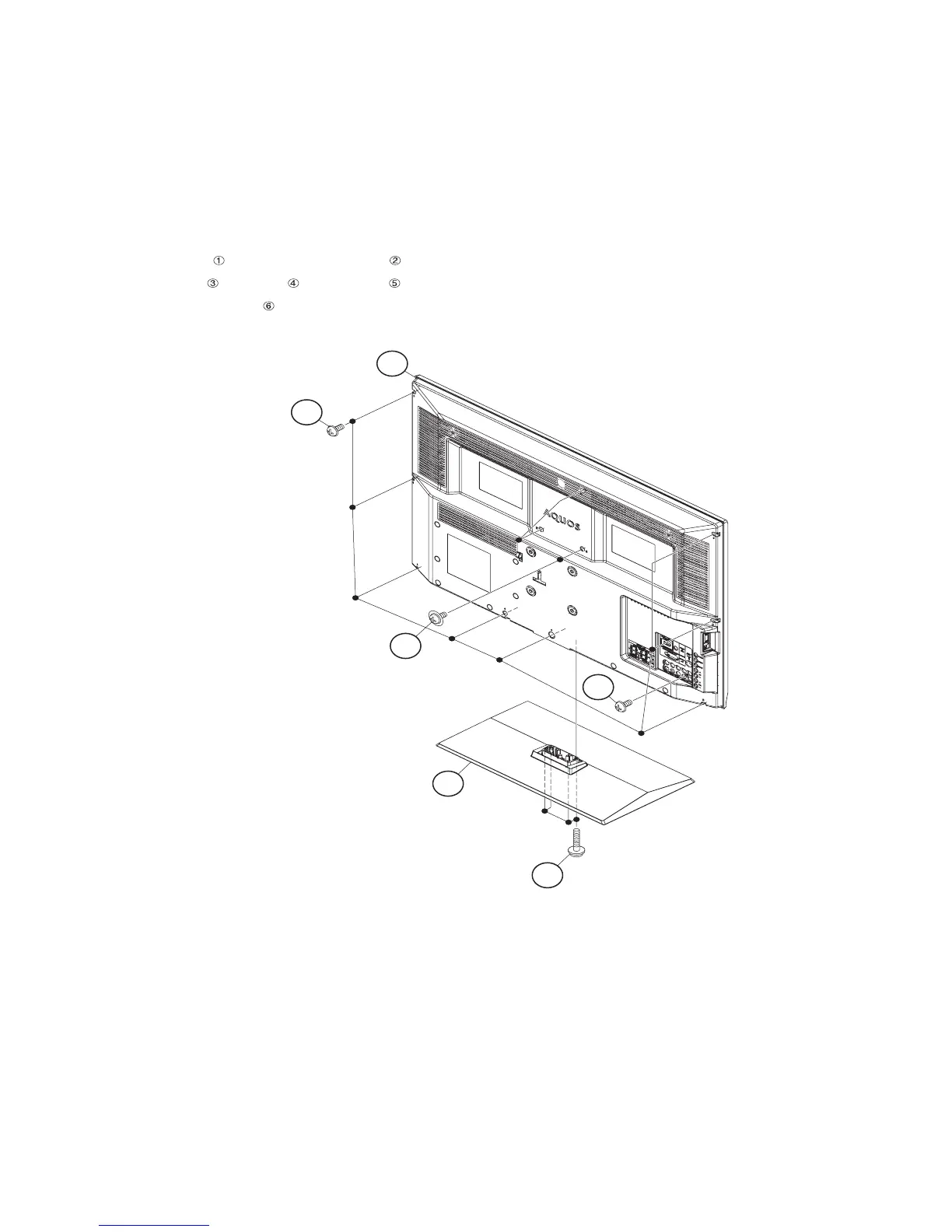

1. Removing of the Rear Cabinet Ass’y and Stand Base
1. Remove the 4 screws and detach the Stand Base .
2. Remove the 1 screw , 3 screws and 8 screws .
3. Detach the Rear Cabinet Ass’y .
6Rear Cabinet Ass'y
2
1
4
3
Stand Base
5
