Appendix
Wall Mount Kit Specifications

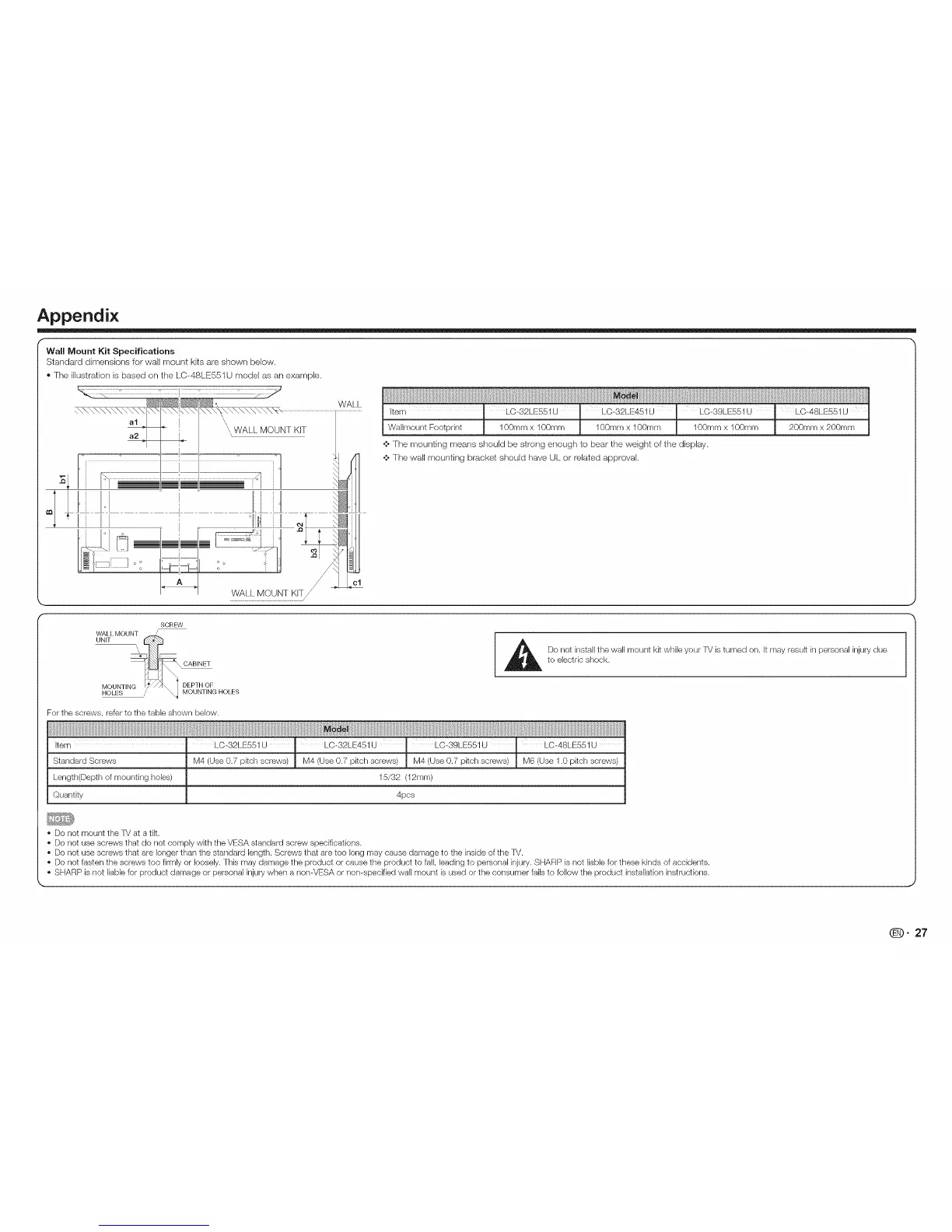

Standard dimensions for wall mount kits are shown below,
® The illustration is based on the LC-48LE551U model as an example.
at \\
" WALL MOUNT KIT
r i]
t " I
li II
o i !1
WALL
iiiiii]iiiiiiiiiiiiiiiii_iiiiiii_iii!iiiIii1iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_ii_iii_iHiiHii1iiiiiiiiiiiiiiiiii_iiiiiiii!iHHi1iiiiii_iiiiiii_iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii_iiiiiii_iiiiiii_iiiiiii_iiiiiii_iiiii!_iiiHiiiiiiii1ii_iii_iii_iii_iii_iii_iii_ii_iiiY_ii_i_i_i_i_ii_i_ii_i_ii_i_ii_i_ii_i_i_!i_1ii_iiii_i_i_i_ii_i_ii_i_ii_i_ii_i_H_i_iii_i_ii_i_ii_i_ii_i_ii_i_ii_i_ii_i_ii_i_iHH_ii;_i_i_i_i_iii_i_i_iH_Ii_t_!i_iiiii_i_iii_ii_i_i_ii_ii_i_ii_H_iii_i_i_i_ii_i_ii_i_ii_i_ii_i_ii_i_ii_i_iHH_ii;_i_i_i_i_iii_
,torn 1 LO32LE551Uf ¸¸L°-32L 4 1u¸l L039 -E551ul LO48L 1U1
WallmountFootprint ! 100mmxlOOmm | lOOmmxlO0mm J 100mmxlOOmm j 200mmx200mm !
•:* The mounting means should be strong enough to bear the weight of the display,
•:* The wall mounting bracket should have UI.. or related approval,
cl
SCREW
,_ Do not install the wall mount kR while your TV is turned on. it may resuR in personal injury due
to electdc shock.
For the screws, refer to the table shown below.
i i ii i _i
Item -LO-32LE551U _ LO-32LE451U : LO-39LE551U " LC_48LE551U
Standard Screws M4 (Use 0.7 pRch screws) M4 (Use 0.7 pitch screws) M4 (Use 0.7 pitch screws) M6 (Use 1.0 pitch screws)
Length(Depth of mounting holes) 15/32 (12mm)
Quantity 4pcs
Do not mount the TV at a tilt.
* Do not use screws that do not comply with the VESA standard screw specifications.
o Do not use screws that are longer than the standard length. Screws that are too long may cause damage to the inside of the TV.
o Do not fasten the screws too firmly or loosely. This may damage the product or cause the product to fall, leading to personal injury. SHARP is not liable for these kinds of accidents.
o SHARP is not liable for product damage or personal injury when a nomVESA or non-specified wall mount is used or the consumer fails to follow the product installation instructions.
@- 27
