Sharp LC-32LE700UN Service Manual

LC-32/40/46/52LE700UN
4 – 12

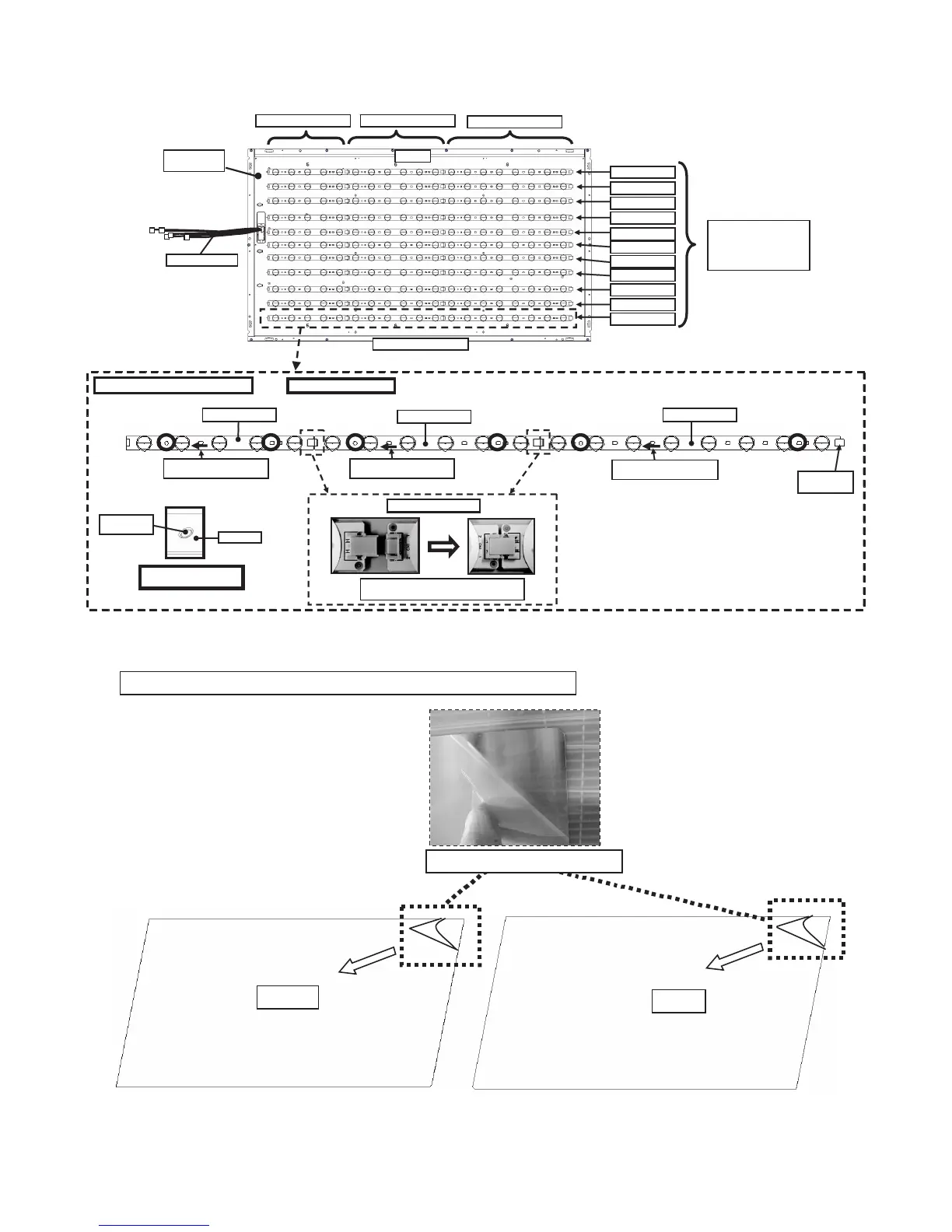

11. Handling notes (LC-46LE700UN).
1. Set and connect LED-PWBs.
2. Peel off the lamination film of LENS SHEET on the both sides.
RUNTKA595WJ01 / WJ02 RUNTKA596WJ01 / WJ02
RUNTKA598WJ01 / WJ02
㧨CAUTION㧪
It being alternated
RUNTKA***WJ01
and RUNTKA***WJ02.
Top Side
Bottom Side (C-PWB side)
RUNTKA***WJ01
RUNTKA***WJ02
RUNTKA***WJ01
RUNTKA***WJ02
RUNTKA***WJ01
RUNTKA***WJ02
RUNTKA***WJ01
RUNTKA***WJ02
RUNTKA***WJ01
RUNTKA***WJ02
RUNTKA***WJ01
*Same for other lines.
INSIDE of
BL-CHASSIS
Connect LED-PWBs
Set and connect LED-PWBs
Boss fitting
(showing in blue circles)
RUNTKA595WJ**
RUNTKA596WJ**
RUNTKA598WJ**
LED-PWB
Boss of
BL-CHASSIS
TERMINATOR
is Attached
WIRE HARNESS
LED-PWB set direction
(arrow mark to harness side)
LED-PWB set direction
(arrow mark to harness side)
LED-PWB set direction
(arrow mark to harness side)
Insert the connector horizontally mutually.
Do not add impossible power.
FRONT
BACK
Peel off the lamination film of LENS SHEET on the both sides.
Peel off the lamination film.
