4. Removing of the PWB Units

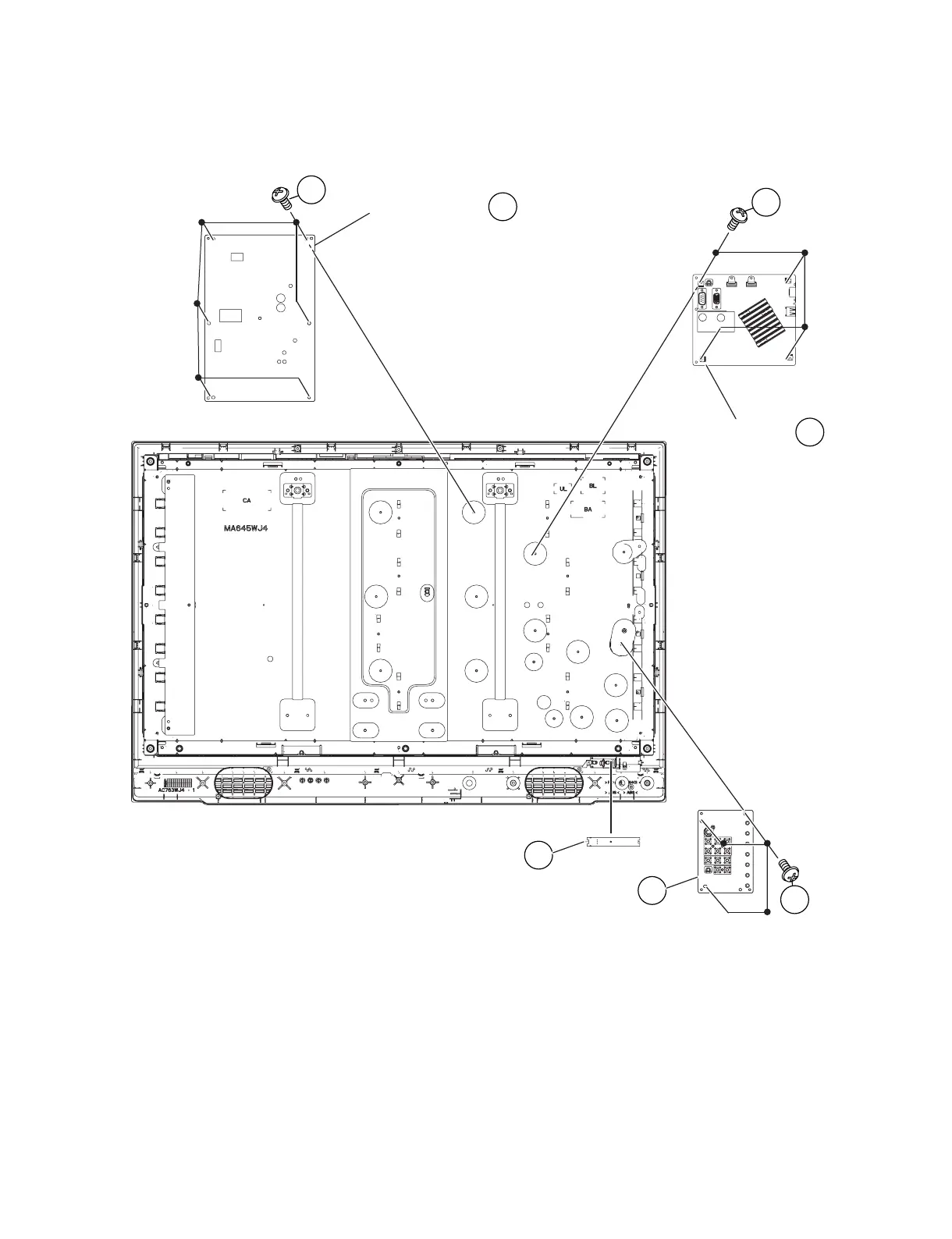

1. Detach the IR/OPC Unit [1].
2. Remove the 4 lock screws [2] and detach the TERMINAL Unit [3].
3. Remove the 4 lock screws [4] and detach the MAIN Unit [5].
4. Remove the 6 lock screws [6] and detach the POWER Unit [7].
MAIN Unit
POWER Unit
2
1
4
5
IR OPC Unit
3
TERMINAL Unit
6
7
