LC-32PX5M/X/LC-37PX5M/X
4 – 2

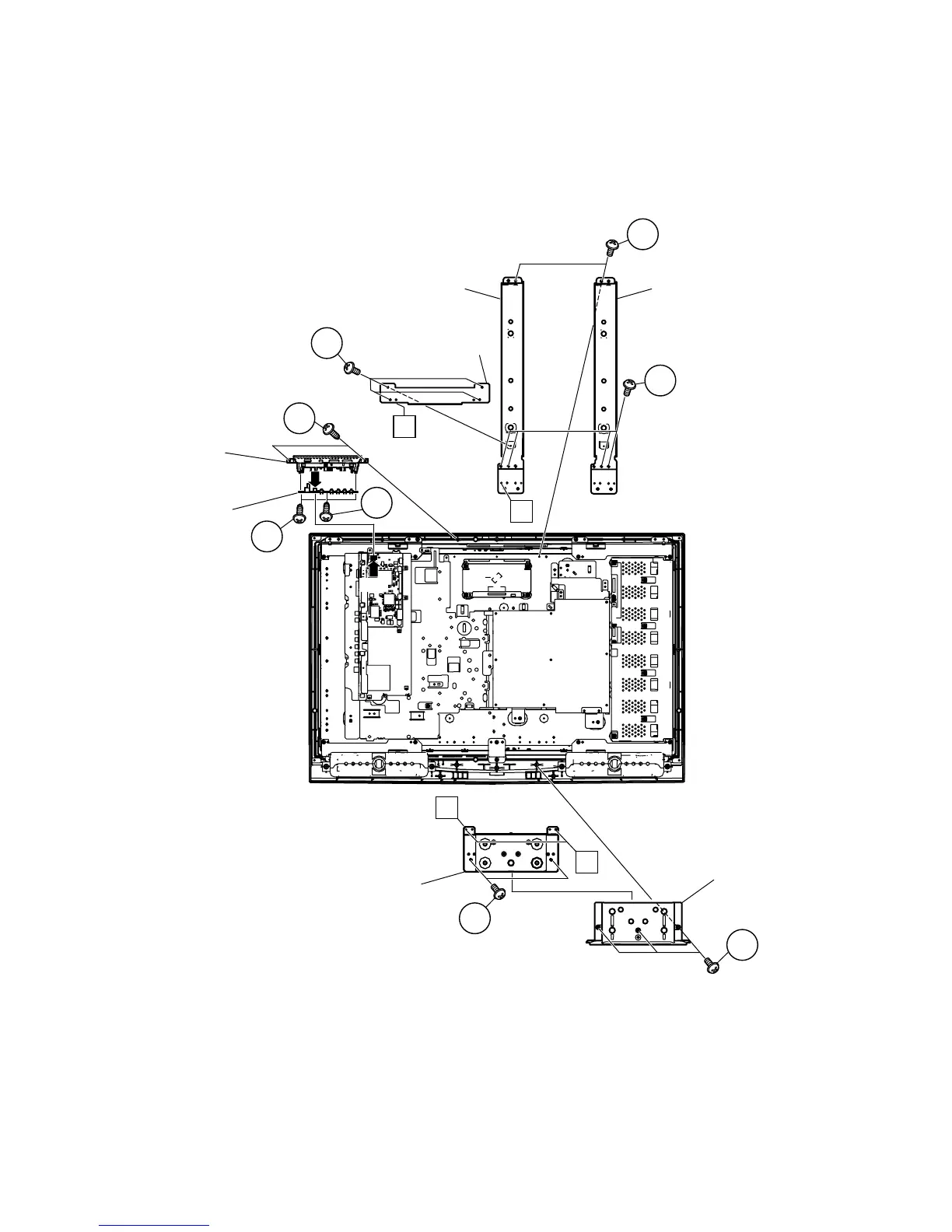

4. Remove the 4 screws [6] and detach the Support Angle.
5. Remove the 3 screws [7] and the Bottom Cover.
6. Remove the 2 (32PX5M/X)/4 (37PX5M/X) screws [8] and detach the Stand Angle.
7. Remove the 6 (32PX5M/X)/4 (37PX5M/X) screws [9].
Detach the SUS Angle-L and SUS Angle-R.
8. Remove the 2 screws [10] and detach the Top Control Cover Ass'y.
Remove the 2 screws [11] , 1 screw [11A] and detach the OPERATION PWB Unit from Top Control Cover Ass'y.
(LC-32PX5M/X)
䎤
䎤
䎥
䎥
䬌䎮䎰䬍
䬌䎮䎰䬍
6
9
9
10
11
8
7
Top Control
Cover Ass'y
OPERATION
PWB Unit
Center Angle-R
Support Angle
Stand Angle
Bottom Cover
Center Angle-L
11A
To Next Page
