CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS

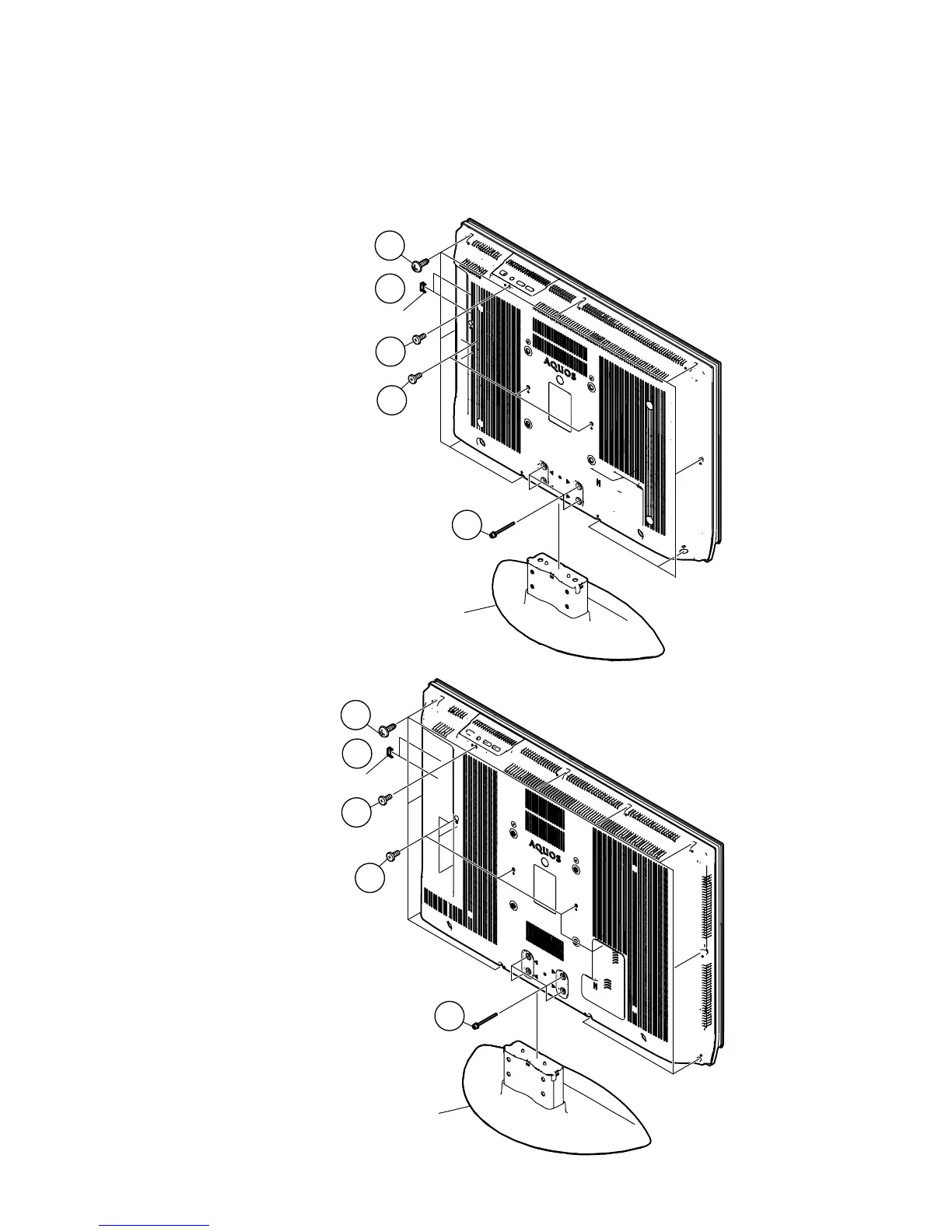

1. Detach the 2 BUS Covers [1].
2. Remove the 4 screws [2] and detach the Stand.
3. Remove the 1 screw [3], 4 (32PX5M/X)/6 (37PX5M/X) screws [4] and the 9 (32PX5M/X)/10 (37PX5M/X) screws [5].
Detach the Rear Cabinet.
5
1
3
4
2
Stand
BUS Cover
(LC-32PX5M/X)
5
1
3
4
2
BUS Cover
Stand
(LC-37PX5M/X)
