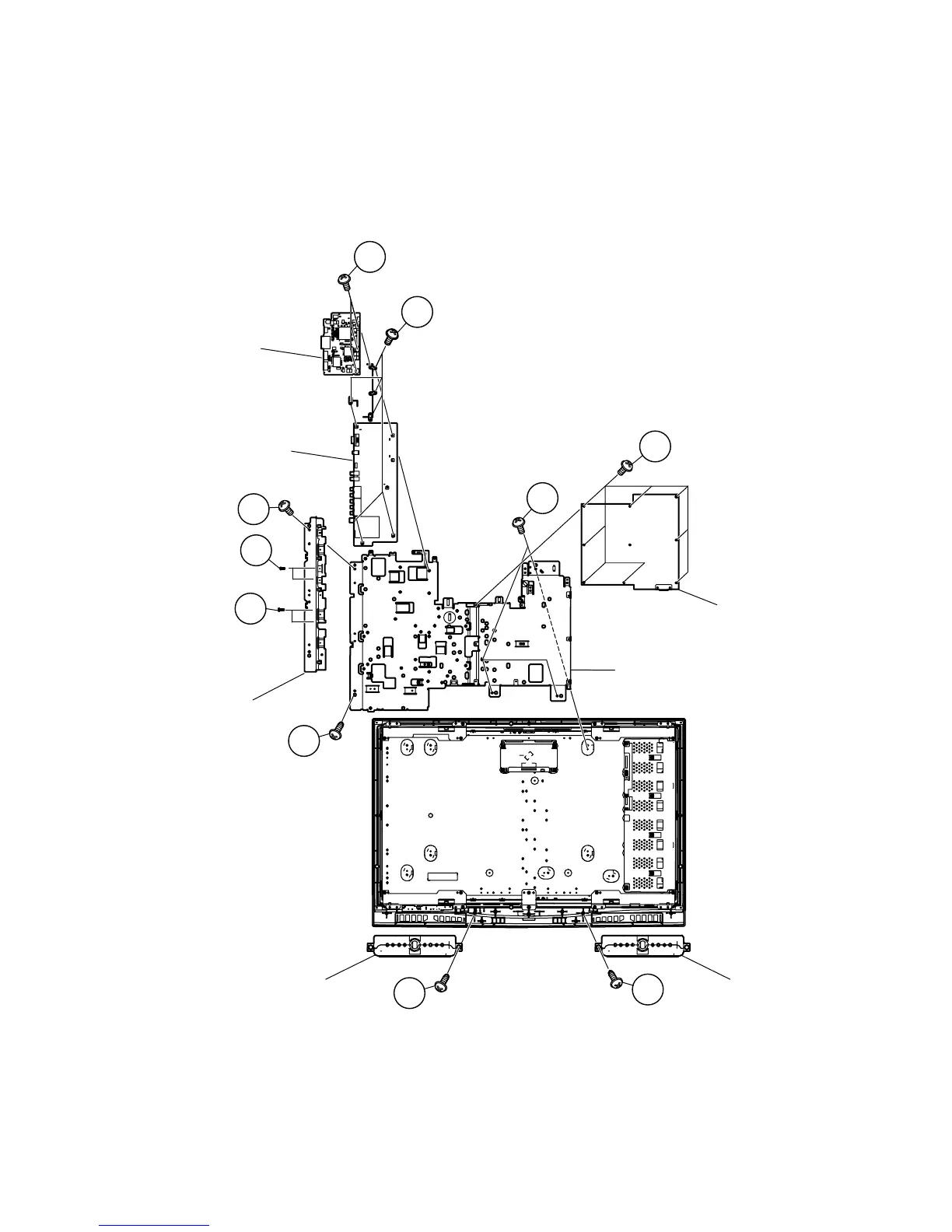

10.Remove the 2 (32PX5M/X)/4 (37PX5M/X) screws [13]. Detach the Speaker Box L and Speaker Box R.
11.Remove the 5 (32PX5M/X)/4 (37PX5M/X) screws [14] and detach Chassis Tray.
12.Remove the 2 screws [16] and 2 screws [17].
Detach the AV Terminal Cover.
13.Remove the 8 screws [18] and detach the POWER PWB Unit from Chassis Tray.
14.Remove the 6 screws [19] and detach the SUB PWB Unit from Chassis Tray.
15.Remove the 3 screws [20] and detach the MAIN PWB Unit from SUB PWB Unit.
20
19
14
18
14
17
16
13
13
MAIN PWB Unit
SUB PWB Unit
AV Terminal Cover
Speaker Box R
Speaker Box L
Chassis Tray
POWER PWB Unit
(LC-32PX5M/X)
