Sharp LC-32R24B - CHAPTER 2. REMOVING OF MAJOR PARTS; Remove the 8 lock screws, 2 lock screws, 2 lock shafts and detach the Main Shield.

LC-32R24B
2 – 2

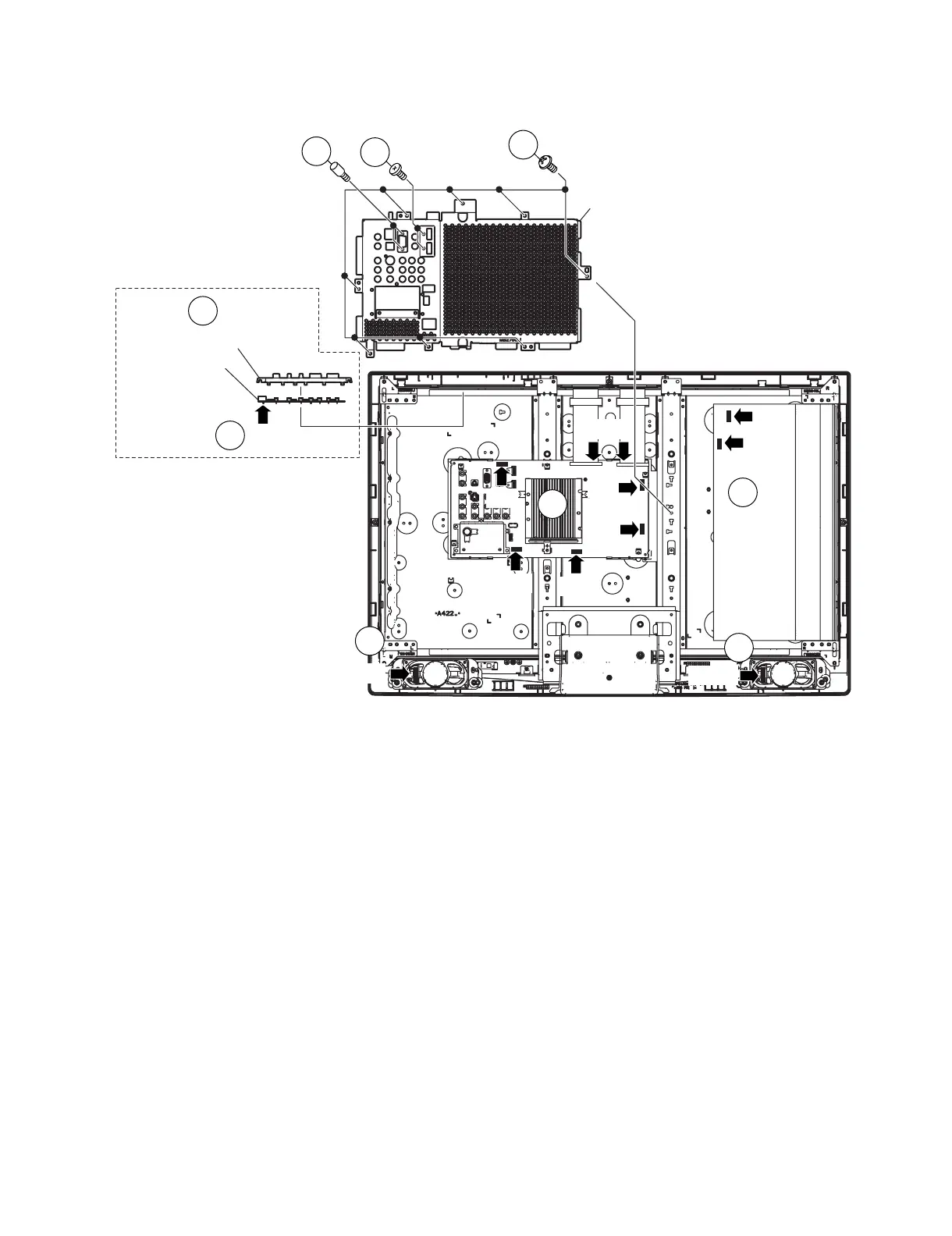

3. Remove the 8 lock screws, 2 lock screws, 2 lock shafts and detach the Main Shield.
4. Disconnect all the connectors from all the PWBs.
5. Remove the KEY Unit Ass'y.
3
4
5
Main Shield
KEY Unit Ass'y
Operation Button
KEY Unit
3
3
KM
KM
RA
SP
PD
PD
LB
FPC
LB
SP-L
SP-R
4
4
4
4
