Sharp LC-32R24B - CHAPTER 2. REMOVING OF MAJOR PARTS; Remove the Speaker (L) (R). Remove the 3 lock screws and detach the POWER;INVERTER Unit.

LC-32R24B
2 – 3

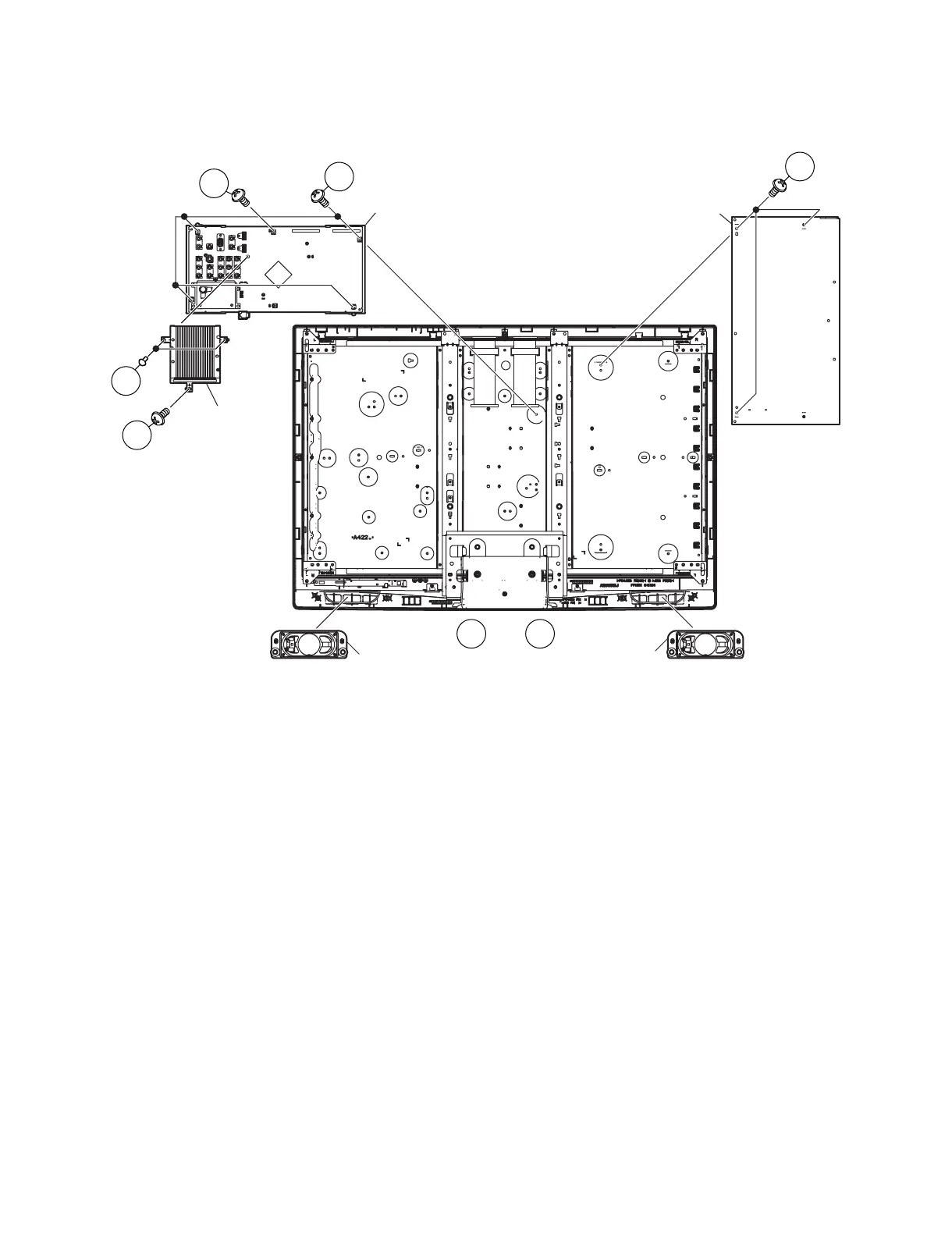

6. Remove the Speaker (L) (R).
7. Remove the 3 lock screws and detach the POWER/INVERTER Unit.
8. Remove the 4 lock screws, 2 lock screws and detach the MAIN Unit.
9. Remove the 2 lock rivets and detach the Heat Sink.
7
8
8
8
9
6 6
MAIN Unit
POWER/INVERTER Unit
Heat Sink
Speaker (L)
Speaker (R)
