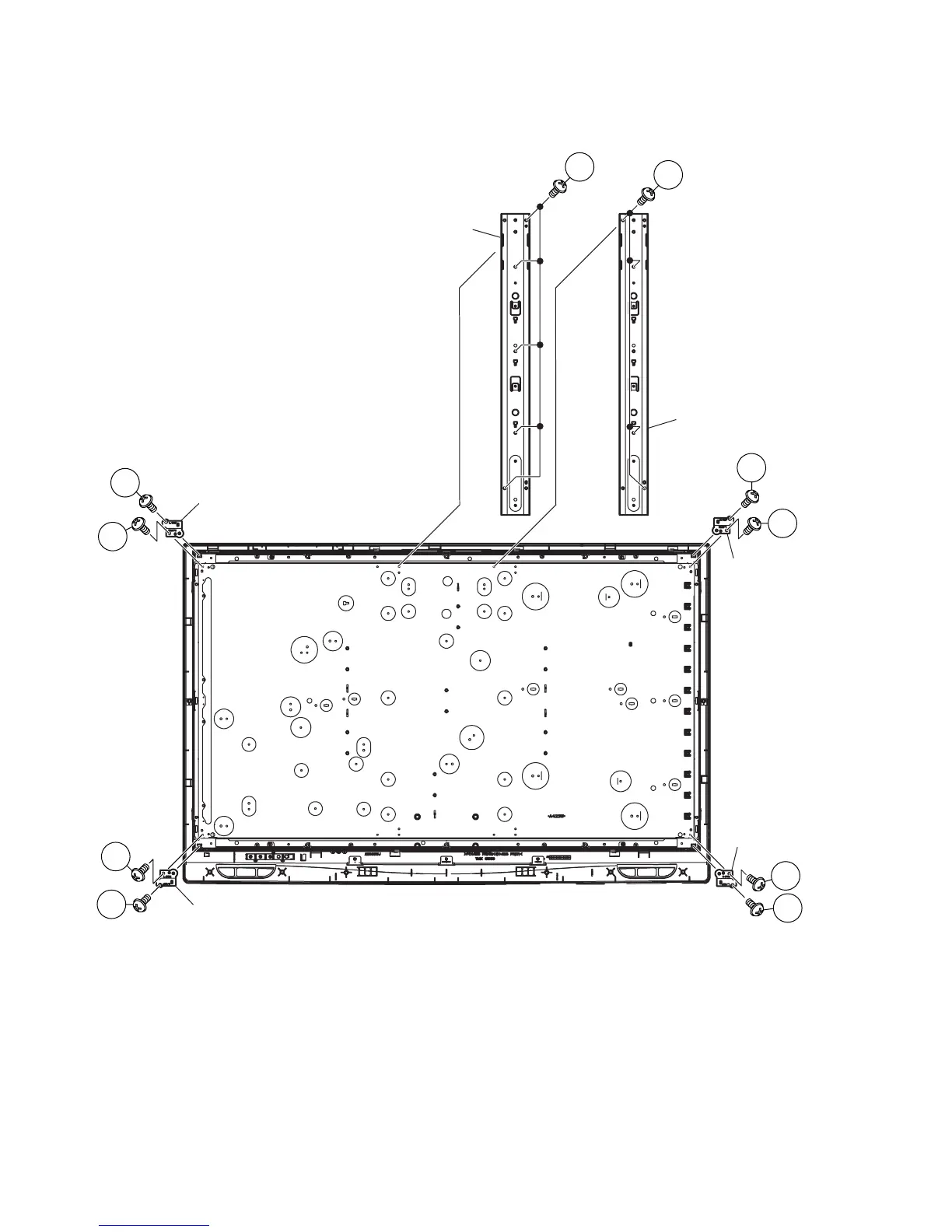

14.Remove the 4 lock screws and detach the LCD Panel Module.
15.Remove the 2 lock screws and detach the LCD Fix Angle-B.
16.Remove the 2 lock screws and detach the LCD Fix Angle-T.
17.Remove the 9 lock screws and detach the VESA Angle.
14
15
14
16
17
17
16
14
15
14
LCD Fix Angle-T
VESA Angle
VESA Angle
LCD Fix Angle-T
LCD Fix Angle-B
LCD Fix Angle-B
