LC-32/37D64U
4 – 2

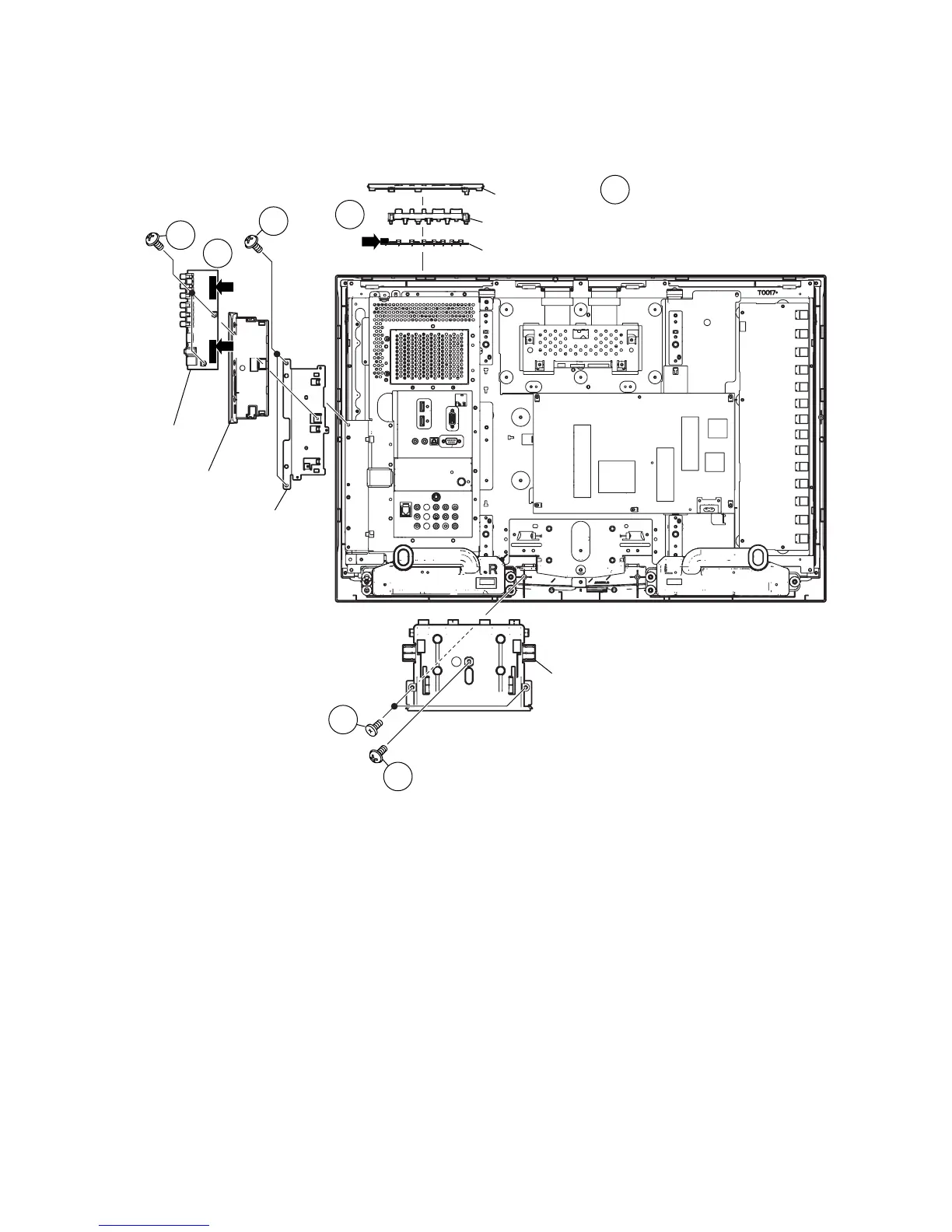

4. Remove the Top cover Ass'y.
5. Disconnect the KM, VD, US connectors from KEY Unit and SIDE Unit.
6. Remove the 2 lock screws and detach the Mini AV Cover Ass'y.
7. Remove the 2 lock screws and detach the SIDE Unit, Mini AV Cover from the Mini AV Angle.
8. Remove the 2 lock screws, 1 lock screw and detach the Stand Area Cover.
7
5
5
6
4
8
8
Operation Button
KEY Unit
Top Cover
Mini AV Angle
Stand Area Cover
Mini AV Cover
SIDE Unit
VD
KM
US
