LC-32/37D64U
4 – 3

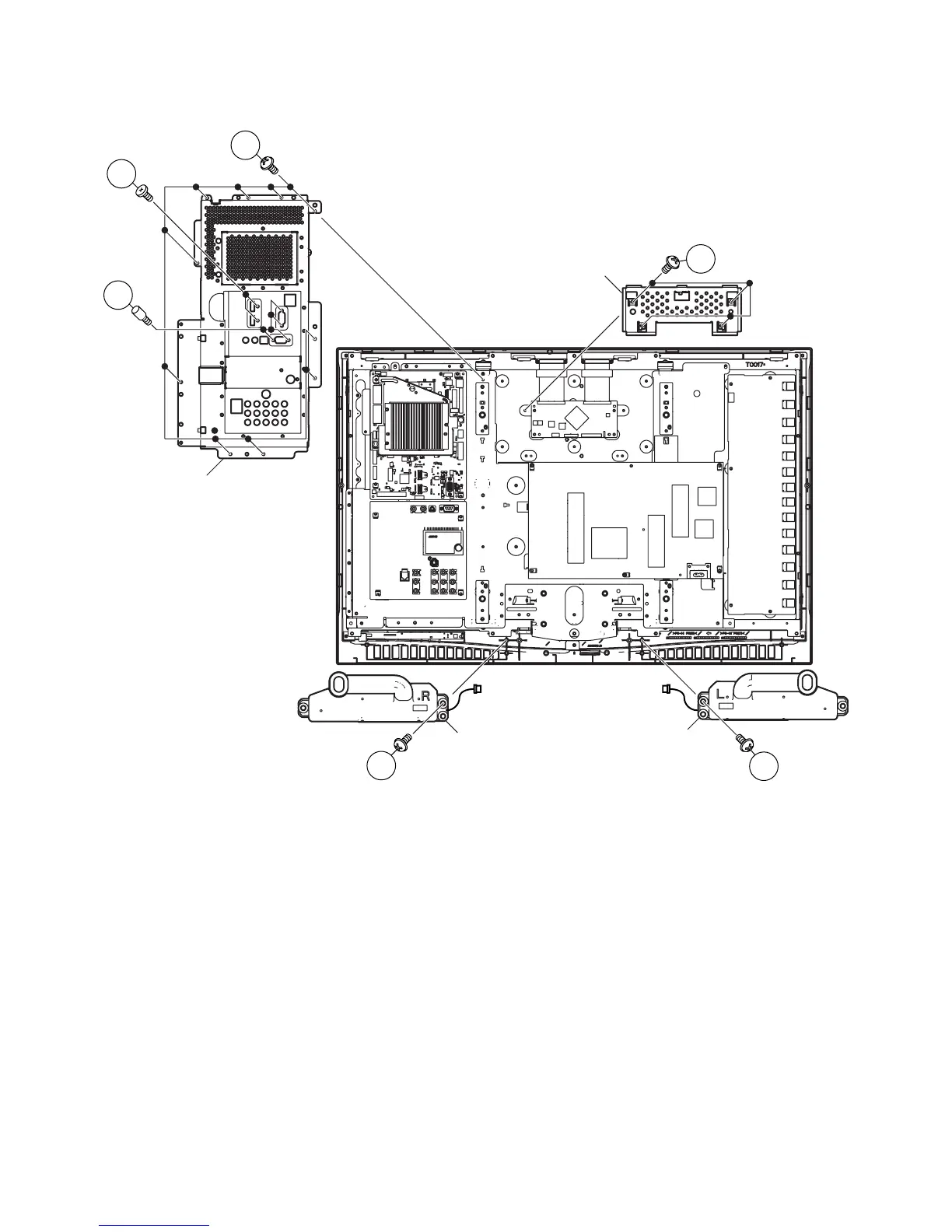

9. Remove the 2 lock screws and detach the Speaker (L) (R).
10.Remove the 10 lock screws, 2 lock screws, 4 lock Shafts and detach the Main Shield.
11.Remove the 4 lock screws and detach the LCD Shield Cover.
10
11
9
9
10
10
LCD Shield Cover
Main Shield
Speaker (L)
Speaker (R)
