LC-32/37D64U
4 – 9

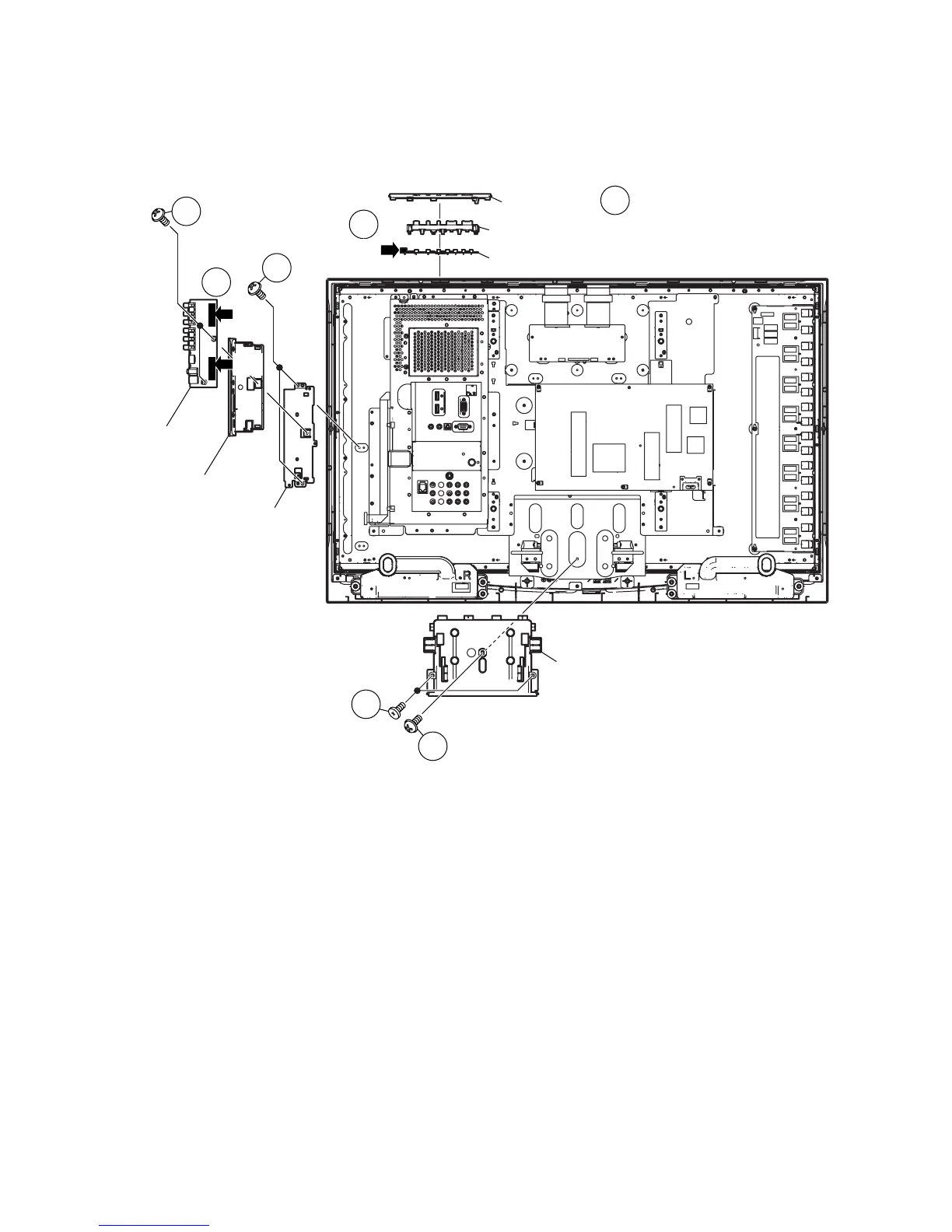

3. Remove the Top cover Ass'y.
4. Disconnect the KM, VD, US connectors from KEY Unit and SIDE Unit.
5. Remove the 2 lock screws and detach the Mini AV Cover Ass'y.
6. Remove the 2 lock screws and detach the SIDE Unit, Mini AV Cover from the Mini AV Angle.
7. Remove the 2 lock screws, 1 lock screw and detach the Stand Area Cover.
6
5
4
4
3
7
7
Operation Button
KEY Unit
Top Cover
Stand Area Cover
Mini AV Cover
SIDE Unit
KM
VD
US
Mini AV Angle
