LC-32/37D64U
4 – 10

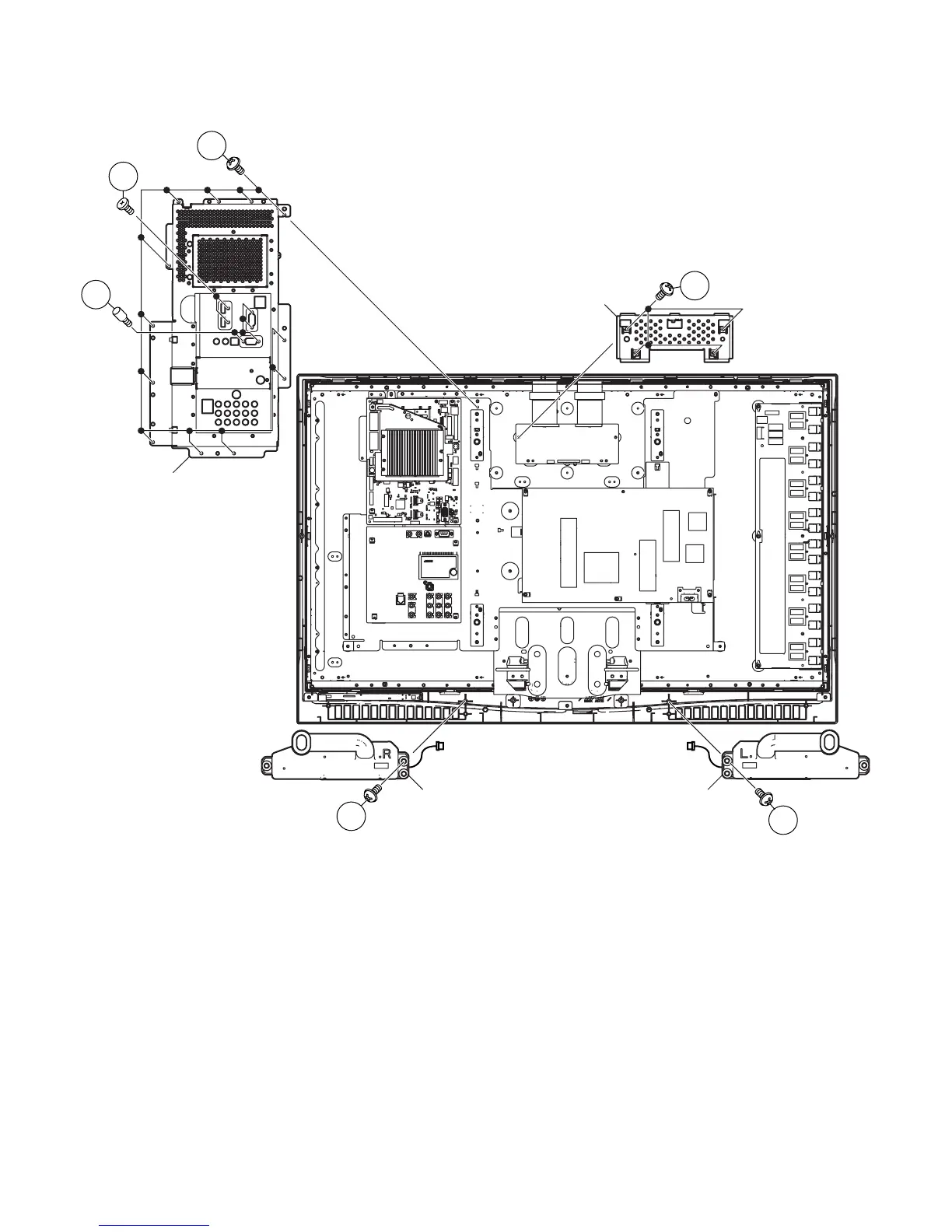

8. Remove the 2 lock screws and detach the Speaker (L) (R).
9. Remove the 12 lock screws, 2 lock screws, 4 lock Shafts and detach the Main Shield.
10.Remove the 4 lock screws and detach the LCD Shield Cover.
9
10
8
8
9
LCD Shield Cover
Main Shield
Speaker (L)
Speaker (R)
9
