Sharp LC-40CFG6452E Service Manual

41
5.3 ADC ADJUST & WHITE BALANCE AUTO ADJUST
It’s for adjusting the YPBPR and PC color. Press key “right” or “ok”
to enter the subpage.
ADC Mode: Display current input source and resolution
ADC Auto Adjust: Start to auto color to get ADC value
[ADC]R-Gain, G-Gain, B-Gain: Display current ADC R,G,B value
[ADC]R-Oset, G-Oset, B-Oset: Display
current ADC R oset value
5.4 PICTURE SETTING
Source: Current input source. (use for change source)
5.4.1 PICTURE MODE
Source: Change input source
Picture Mode: Select picture mode
Contrast: Adjust contrast
Brightness: Adjust brightness
Color: Adjust color
Sharpness: Adjust Sharpness
Tint: Adjust tint
5.4.2 PICTURE CURVE
Source: Change input source
Picture Mode: Select picture mode
Brightness: Adjust the real brightness for
main menu from OSD 0 to OSD 100
Contrast: Adjust the real contrast for main
menu form OSD 0 to OSD 100
Color: Adjust the real color for main menu from OSD 0 to OSD 100
Sharpness: Adjust the real sharpness for
main menu from OSD 0 to OSD 100
Tint: Adjust the real tint for main menu from OSD 0 to OSD 100.

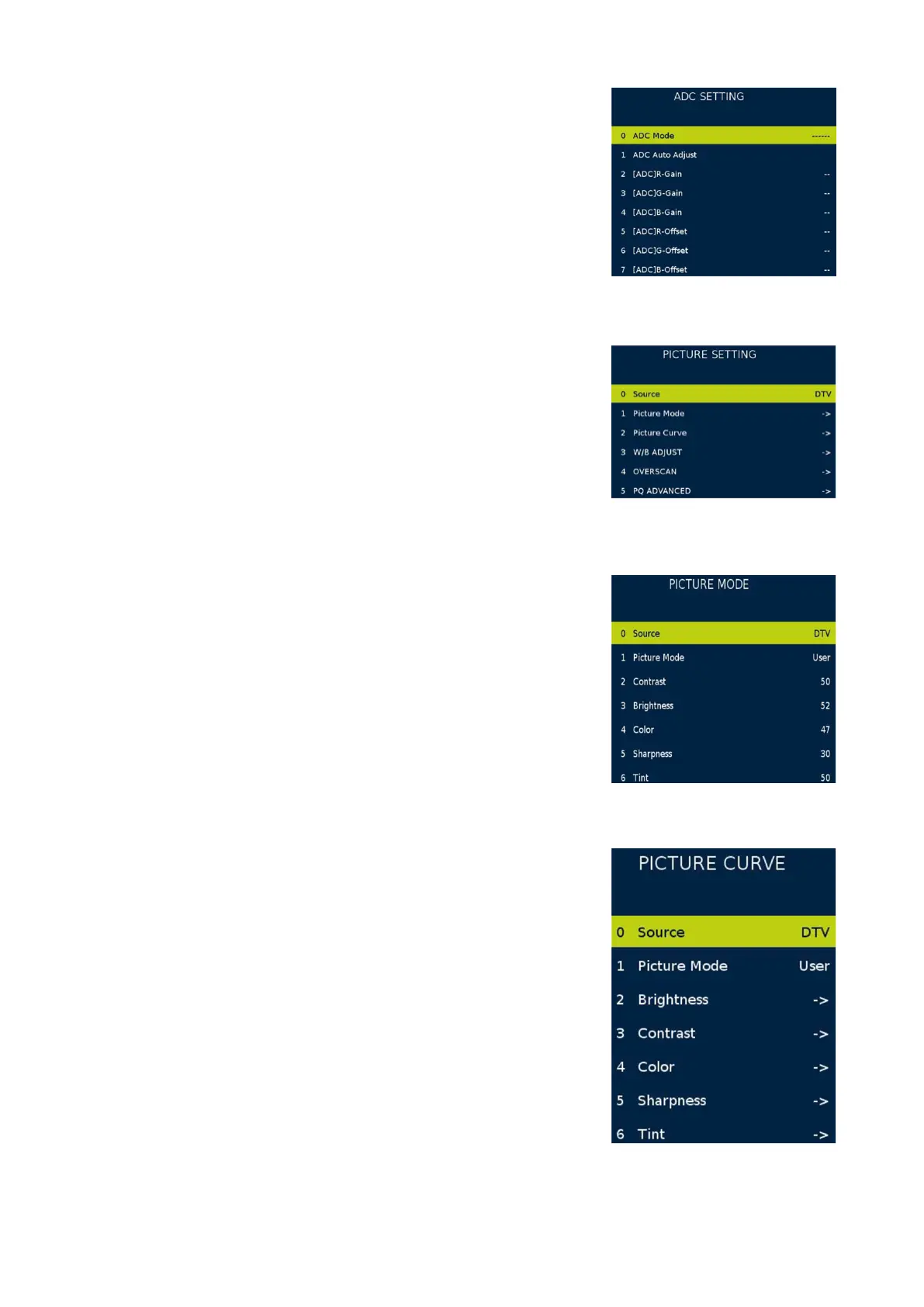

Picture 2 ADC Setting
Picture 3 Picture setting
Picture 4 Picture mode
Picture 5 Picture curve

Sharp LC-40CFG6452E Specifications

General

Desktop stand	Yes
Video apps	Netflix, YouTube
Operating system installed	-
Product color	Black, Silver
Panel mounting interface	400 x 200 mm
Screen shape	Flat
Display diagonal	40 \
Display brightness	300 cd/m²
Display technology	LED
LED backlighting type	Direct-LED
Contrast ratio (dynamic)	1000000:1
Display diagonal (metric)	102 cm
Motion interpolation technology	AMR (Active Motion Rate) 400
3D	No
Annual energy consumption	66 kWh
Number of batteries supported	2
AC input voltage	220 - 240 V
AC input frequency	50 Hz
Power consumption (max)	80 W
Power consumption (standby)	0.5 W
Power consumption (typical)	45 W
Package depth	632 mm
Package width	964 mm
Package height	114 mm
Package weight	10500 g
Sustainability certificates	RoHS
Audio decoders	Dolby Digital, DTS TruSurround
RMS rated power	20 W
Tuner type	Analog & digital
Analog signal format system	PAL, SECAM
Digital signal format system	DVB-C, DVB-S, DVB-S2, DVB-T, DVB-T2
Audio formats supported	AAC, AC3, EAC3, LPCM, M4A, MP3, OGG, WMA
Image formats supported	BMP, JPEG, JPG, PNG
Video formats supported	ASF, AVI, FLV, H.264, H.265, HEVC, M2TS, M4V, MKV, MP4, MPEG4, MPG, RM, RMVB, SWF, TS, VOB, VP9, WMV
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Ethernet LAN (RJ-45) ports	1

Weight and Dimensions

Depth (with stand)	202 mm
Height (with stand)	569.1 mm
Weight (with stand)	7700 g
Depth (without stand)	67.1 mm
Width (without stand)	916.8 mm
Height (without stand)	546.5 mm
Weight (without stand)	- g
