LC-40LE540
LC-46LE540
45

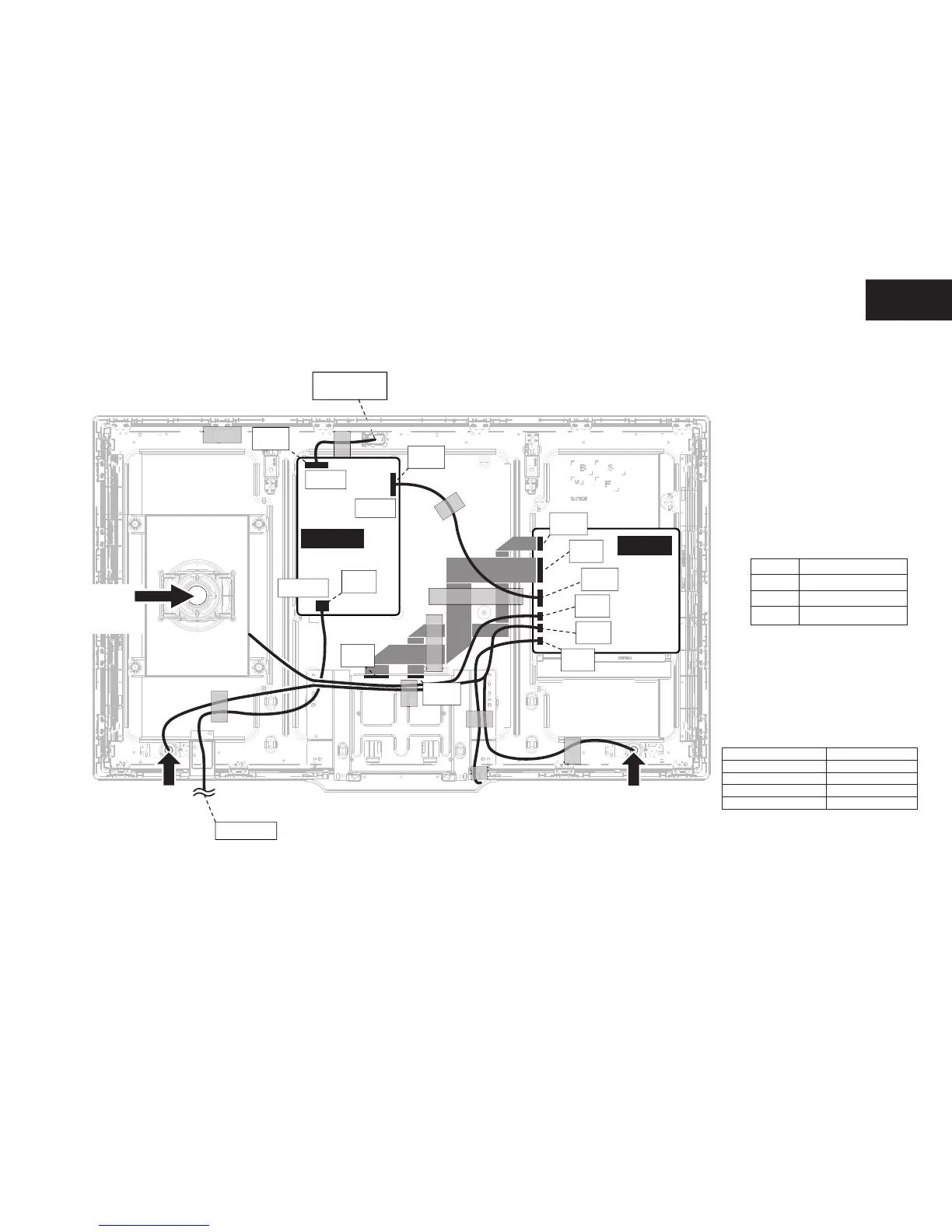

40” OVERALL WIRING DIAGRAMS
TO DISPLAY
SUPPLY
[PD]
[LV]
[LW]
[SB]
[SP]
[RA]
[PD]
[EL]
SPEAKER -L
(TWEETER)
SPEAKER -R
(TWEETER)
SPEAKER
(SUBWOOFER)
[LV]
AC CORD
[LW]
CN1
CN2
CN4
[BL]
Main unit
Power unit
LW 310431114481
LV 310431115371
PD QCNW-M004WJQZ
AC CORD QACCKA058WJPZ
WIRES
POWER SUPPLY RDENCA447WJQZ
MAIN BOARD DUNTKF915FM06
PANEL R1LK400D3LB43C
SPEAKER TWEETER RSP-ZA595WJZZ
SPEAKER SUBWOOFER RSP-ZA594WJZZ
OTHER
