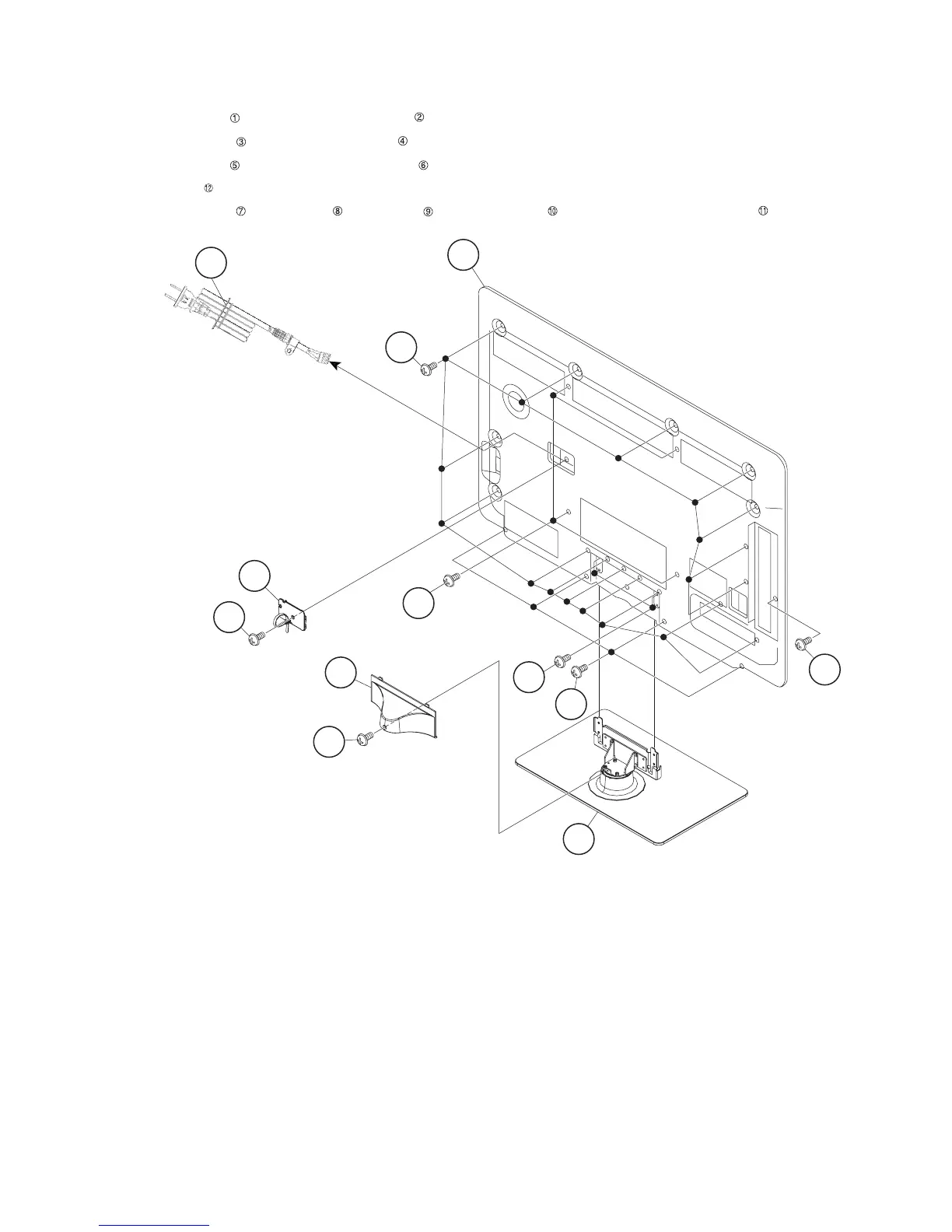

[2] REMOVING OF MAJOR PARTS (LC-46LE820UN)
1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 1 lock screw and detach the Support Cover .
2. Remove the 4 lock screws and detach the Stand Unit .
3. Remove the 1 lock screw and detach the AC Cord Cover .
4. Disconnect AC Cord .
5. Remove the 4 lock screws , 4 lock screws , 1 lock screw and 16 lock screws and detach the Rear Cabinet Ass’y .
AC Cord
12
9
Rear Cabinet Ass'y
10
11
6AC Cord Cover
5
2Support Cover
3
4
Stand Unit
7
8
1
