LC-40/46/52/60LE820UN
6 – 10

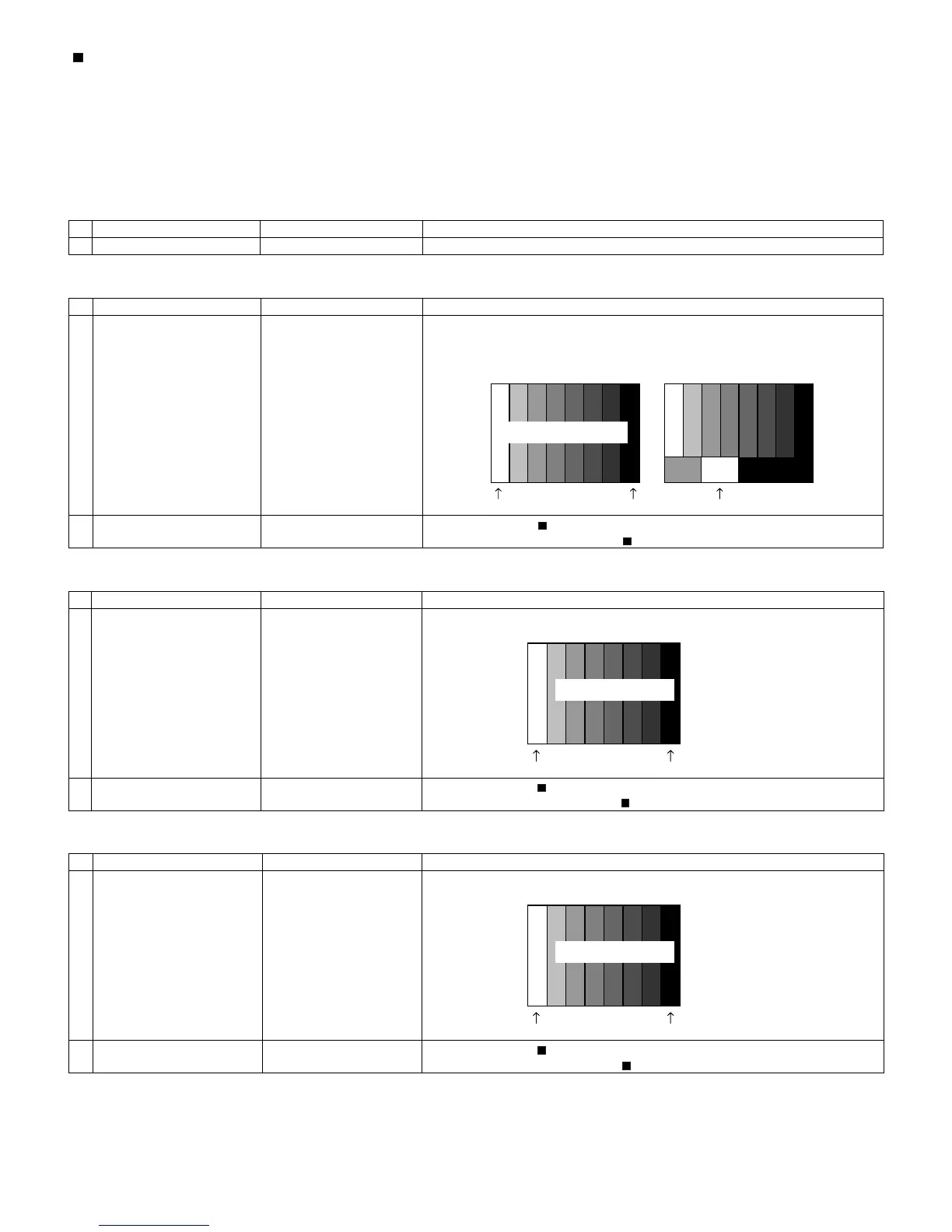

Signal generator level adjustment check (Adjust to the standard value level.)
8.2.2 Process mode
8.2.3 Composite N358 signal/tuner adjustment
8.2.4 Component 15K signal adjustment
8.2.5 COMPONENT 33K signal adjustment
•Composite signal: 0.714Vp-p ± 0.02Vp-p (Pedestal to white)
•15K component signal: Y level: 0.714Vp-p± 0.02Vp-p (Pedestal to white)
PB/PR level: 0.7Vp-p ± 0.02Vp-p
•33K component signal: Y level: 0.7Vp-p ± 0.02Vp-p (Pedestal to white)
PB/PR level: 0.7Vp-p ± 0.02Vp-p
•Analog RGB: RGB level: 0.7Vp-p ± 0.02Vp-p (Pedestal to white)
Adjustment point Adjustment conditions Adjustment procedure
Process mode Enter the process adjustment mode using the process adjustment remote control.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting N358 signal
US-10ch
•Send the N358 color bar (color saturation: 75%) signal to the Video 2 video input.
•Send the in-house signal (use US-10ch) to TUNER.
2 Automatic adjustment exe-
cution
Point the cursor to [ N358 ALL ADJ(INPUT2)] and press the [Enter] key.
The adjustment is complete when [ N358 ALL ADJ(INPUT2) OK] is displayed.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting 480i signal •Send the 100% color bar signal to the Video 1 component input.
2 Automatic adjustment exe-
cution
Point the cursor to [ COMP15K ADJ(INPUT1)] and press the [Enter] key.
The adjustment is complete when [ COMP15K ADJ(INPUT1) OK] is displayed.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting 1080i signal •Send the 100% color bar signal to the Video 1 component input.
2 Automatic adjustment exe-
cution
Point the cursor to [ COMP33K ADJ(INPUT1)] and press the [Enter] key.
The adjustment is complete when [ COMP33K ADJ(INPUT1) OK] is displayed.
[Video input signal] [In-house US-10ch]
100% white 100% white
0% black
Color saturation: 75%
100% white 0% black
480i
100% color bar
Color saturation: 100%
100% white 0% black
1080i
100% color bar
Color saturation: 100%
To Next Page
