Sharp LC-40LX630E User Manual

18
LC-32LE63x
LC-40LE63x
LC-46LE63x

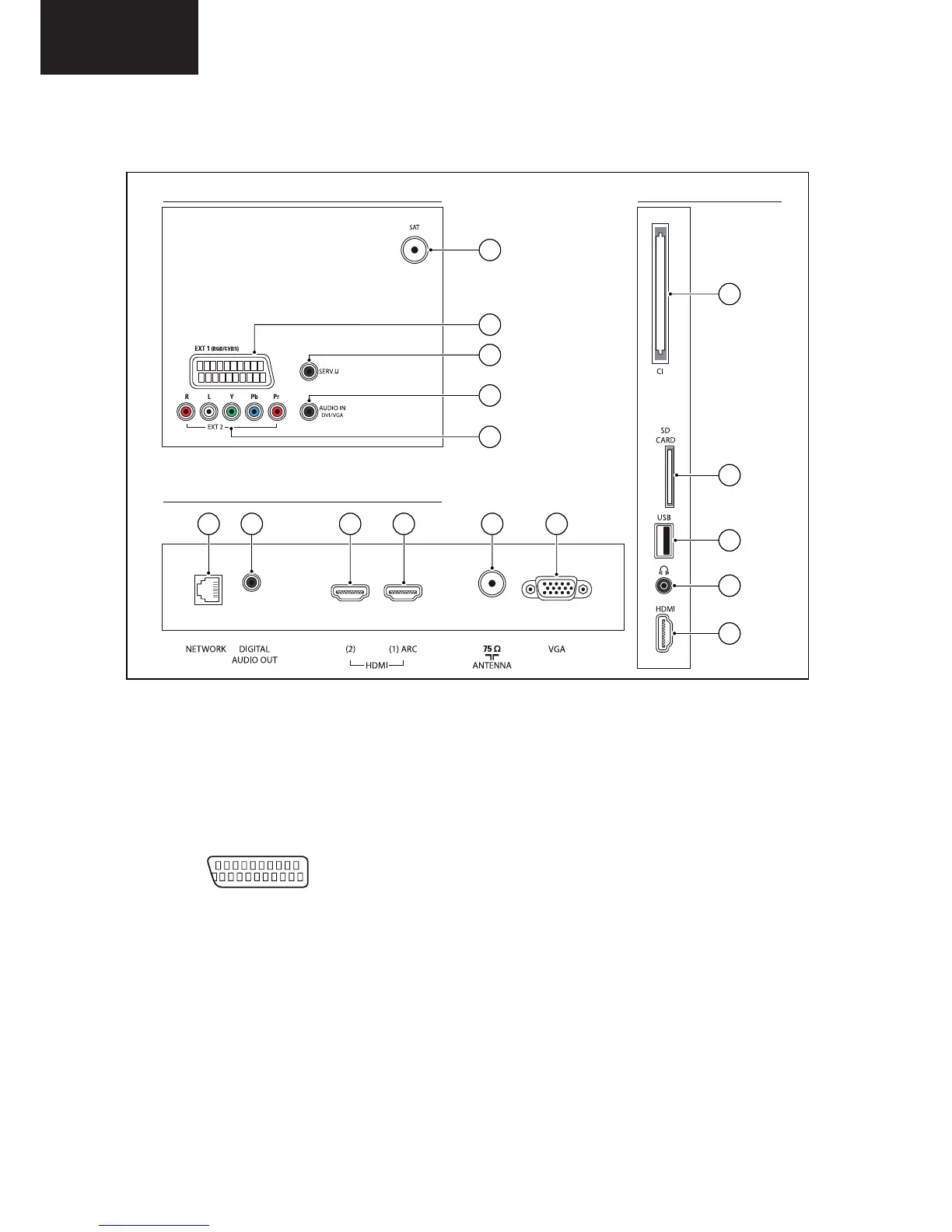

2.3 Connections
Figure 2-1 Connection overview
Note: The following connector colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy=
Grey, Rd= Red, Wh= White, Ye= Yellow.
2.3.1 Rear Connections
1 - EXT1: Video RGB - In, CVBS - In/Out, Audio - In/Out
Figure 2-2 SCART connector
1 - Audio R 0.5 V
RMS
/ 1 kohm k
2 - Audio R 0.5 V
RMS
/ 10 kohm j
3 - Audio L 0.5 V
RMS
/ 1 kohm k
4 - Ground Audio Gnd H
5 - Ground Blue Gnd H
6 - Audio L 0.5 V
RMS
/ 10 kohm j
7 - Video Blue 0.7 V
PP
/ 75 ohm jk
8 - Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9 - Ground Green Gnd H
10 - n.c.
11 - Video Green 0.7 V
PP
/ 75 ohm j
12 - n.c.
13 - Ground Red Gnd H
14 - Ground P50 Gnd H
15 - Video Red 0.7 V
PP
/ 75 ohm j
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 ohm j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS/Y 1 V
PP
/ 75 ohm k
20 - Video CVBS 1 V
PP
/ 75 ohm j
21 - Shield Gnd H
2 - Service Connector (UART)
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
3 - EXT2: Cinch: Video YPbPr - In, Audio - In
Gn - Video Y 1 V
PP
/ 75 ohm jq
Bu - Video Pb 0.7 V
PP
/ 75 ohm jq
Rd - Video Pr 0.7 V
PP
/ 75 ohm jq
Rd - Audio - R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio - L 0.5 V
RMS
/ 10 kohm jq
4 - Cinch: Audio - In (VGA/DVI)
Rd - Audio R 0.5 V
RMS
/ 10 kohm jq
Wh - Audio L 0.5 V
RMS
/ 10 kohm jq
5 - SAT - In
- - F-type Coax, 75 ohm D
REAR CONNECTORS
BOTTOM REAR CONNECTORS
SIDE CONNECTORS
19100_043_110214.eps
110216
12
5
3
4
2
1
13
14
15
16
6 7 8 9 10 11
21
20
1
2
10000_001_090121.eps
090121
Technical Specifi cation, Diversity and Connections (continued)

Sharp LC-40LX630E Specifications

General

Response time	6 ms
Display diagonal	40 \
Display brightness	450 cd/m²
Native aspect ratio	16:9
Native refresh rate	100 Hz
LED backlighting type	Edge-LED
Supported video modes	1080p
Display diagonal (metric)	102 cm
Viewing angle, horizontal	176 °
Supported graphics resolutions	1920 x 1080 (HD 1080)
3D	No
Annual energy consumption	70 kWh
Tuner type	Analog & digital
Analog signal format system	NTSC, PAL, SECAM
Digital signal format system	DVB-C, DVB-T
RMS rated power	10 W
Number of speakers	2
HDMI version	1.4
HDMI ports quantity	3
DVI-D ports quantity	0
USB 2.0 ports quantity	1
Video formats supported	H.264, MPEG4
Panel mounting interface	400 x 400 mm
Power consumption (standby)	0.15 W
Power consumption (typical)	48 W

Weight and Dimensions

Depth (with stand)	242 mm
Height (with stand)	630 mm
Weight (with stand)	14700 g
Depth (without stand)	40 mm
Width (without stand)	947 mm
Height (without stand)	560 mm
