Sharp LC-42D62U - Removing Internal Components; Chassis and Stand Components

LC-42D62U/LC-62C42U
4 – 2
4. Remove the 4 lock screws and detach the Chassis Fixing Angle.
5. Remove the 4 lock screws and detach the Center Angle (L)(R).
6. Remove the 2 lock screws and detach the Stand Assist Angle.
7. Remove the 2 lock screws and detach the Stand Assist Cover.
8. Remove the 4 lock screws and detach the Stand Fixing Angle.
9. Remove the 7 lock screws, 1 lock screw and detach the MAIN Shield and Earth Plate.

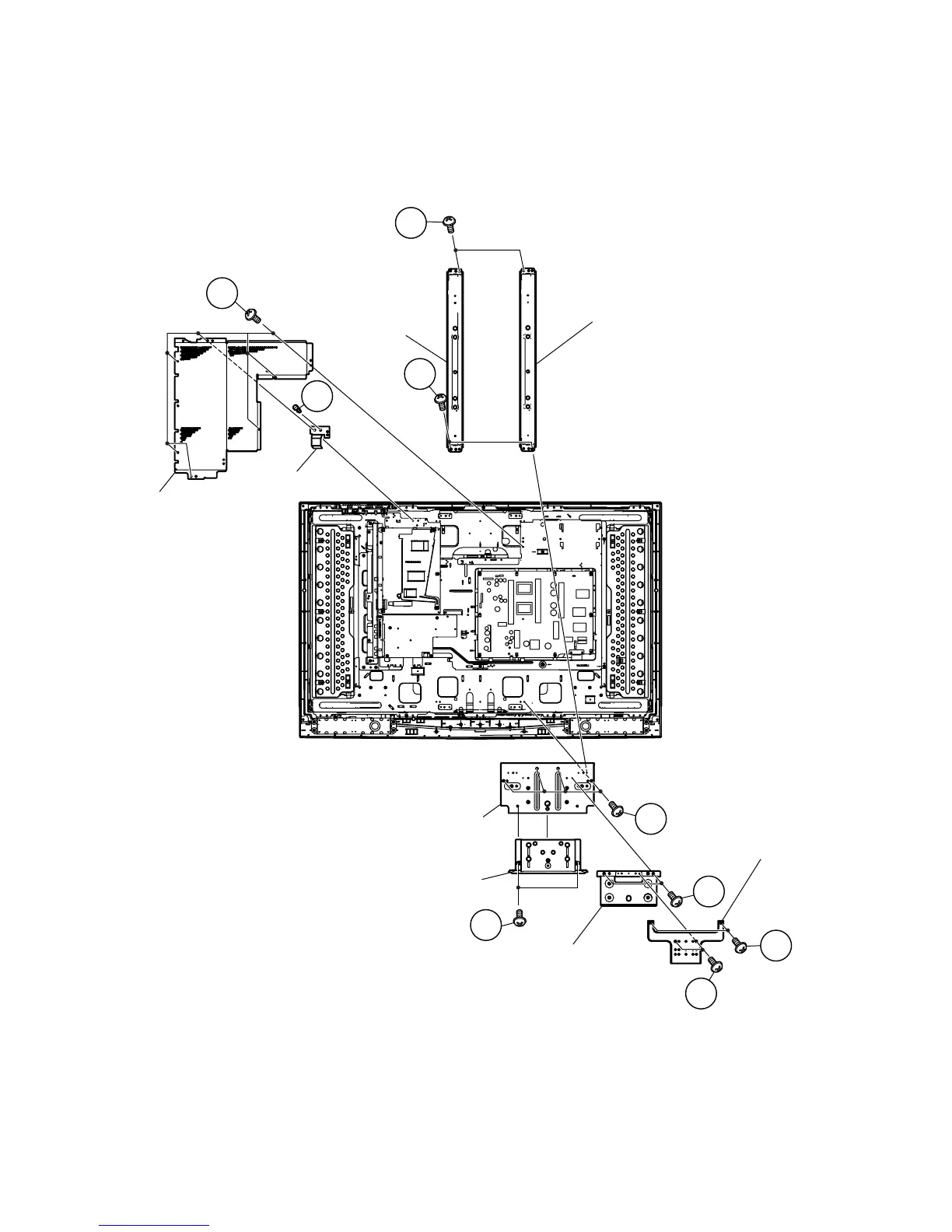

Stand Fixing Angle
Stand Assist Angle
Chassis Fixing Angle
Center Angle (L)
Center Angle (R)
MAIN Shield
Earth Plate
Stand Assist Cover
5
5
9
9
6
4
4
7
8
