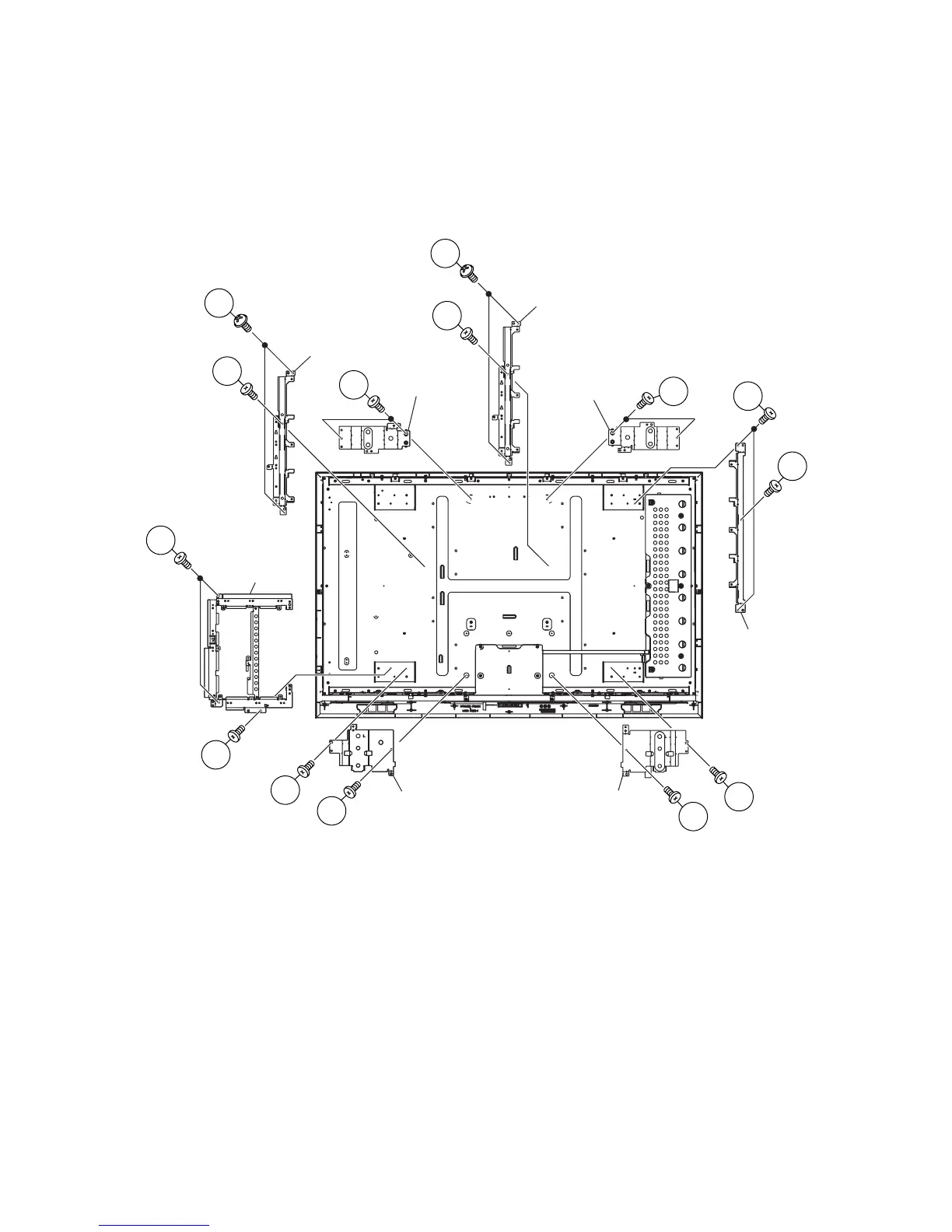

15.Remove the 1 lock screw, 2 lock screws and detach the MAIN PWB Angle Ass'y.
16.Remove the 1 lock screw, 2 lock screws and detach the POWER MAIN PWB Angle-R.
17.Remove the 1 lock screw, 2 lock screws and detach the POWER MAIN PWB Angle-L.
18.Remove the 1 lock screw, 2 lock screws and detach the POWER PWB Angle.
19.Remove the 1 lock screw, 1 lock screw and detach the Stand Angle-B.
20.Remove the 1 lock screw, 1 lock screw and detach the Stand Angle-A.
21.Remove the 2 lock screws and detach the VESA Angle-B.
22.Remove the 2 lock screws and detach the VESA Angle-A.
15
16
17
15
MAIN PWB
Angle Ass'y
Stand Angle-B
Stand Angle-A
POWER
PWB Angle
VESA Angle-B
POWER MAIN
PWB Angle-R
16
21
17
22
18
18
19
20
20
19
VESA Angle-A
POWER MAIN
PWB Angle-L
