3
Confi rm that there are 8 screws (4 short screws
and 4 long screws) supplied with the TV.
Attach the two parts of the stand unit to each
other using the 4 screws and the hex key
(supplied with the product) as shown.
1
2
1
Insert the stand into the openings on the
bottom of the TV.
2
Insert and tighten the 4 long screws into the
4 holes on the rear of the TV.
3

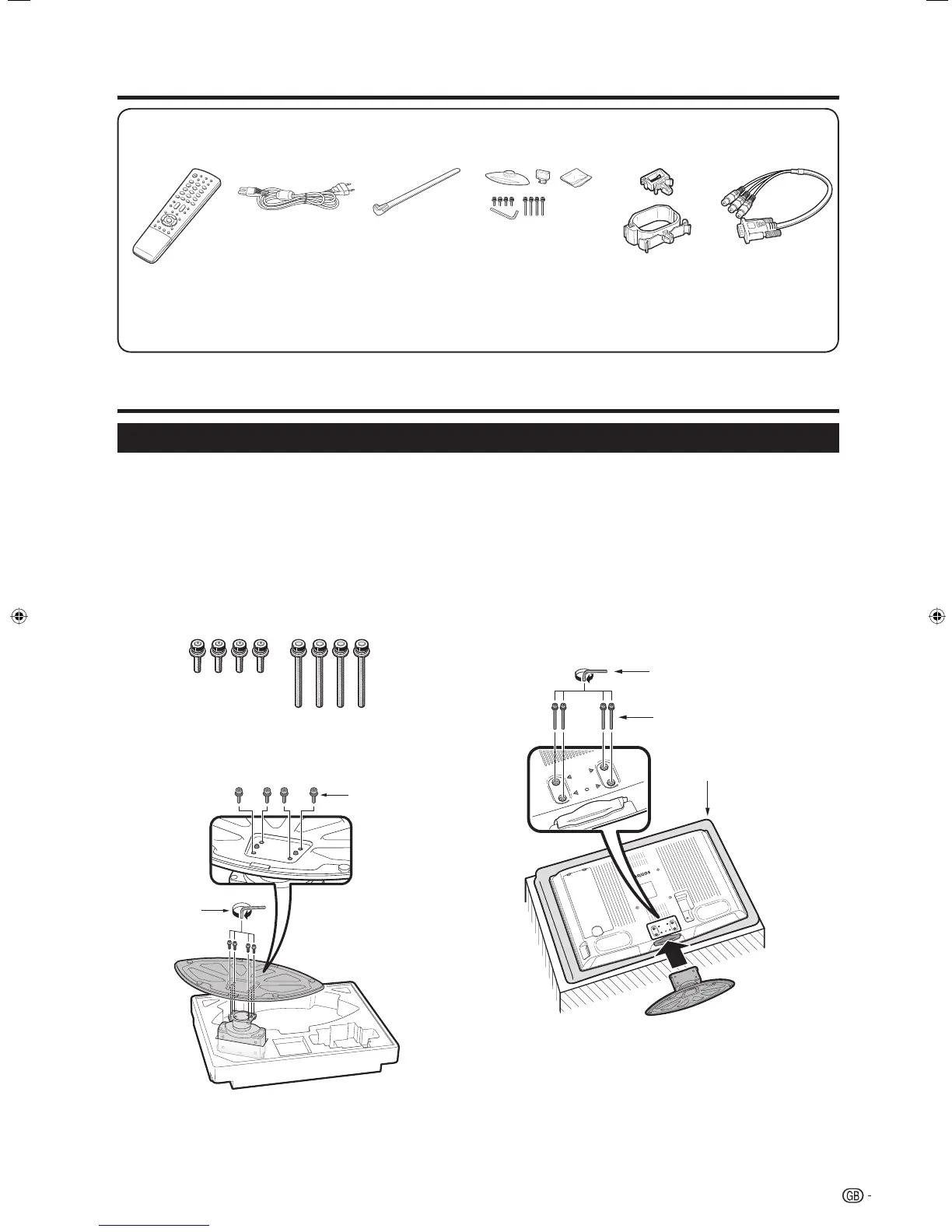

Supplied accessories
Remote control
unit (
g
1)
AC cord (
g
1)
Pages 6 and 7
Page 4
• “AAA” size battery (
g
2)..........Page 6
Cable clamp
(Small
g
1, Large
g
1)
Page 4
Cable tie (
g
1)
Page 4
3 RCA to 15-pin
D-sub adapter
(
g
1)
Page 10
• Operation manual (This publication)
Quick guide
Stand unit (
g
1)
Page 3
Attaching the stand
Before attaching (or detaching) stand, unplug the AC cord from the AC INPUT terminal.
CAUTION
• Attach the stand in the correct direction.
• Be sure to follow the instructions. Incorrect installation of the stand may result in the TV falling over.
NOTE
• To detach the stand, perform the above steps in reverse
order.
Before performing work spread cushioning over the base area to lay the TV on, making sure the area is
completely fl at. This will prevent it from being damaged.
Hex key
Short screw
Hex key
Long screw
Soft cushion
2
1
LC-42BG1E_gb_a.indd 3LC-42BG1E_gb_a.indd 3 2007/05/23 13:48:482007/05/23 13:48:48
