LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
2 – 1
LC42XL2E
Service Manual
CHAPTER 2.
REMOVING OF MAJOR P
ARTS
[1] REMOVING OF MAJOR P
ARTS (LC-42XL2E/S/RU)
1.

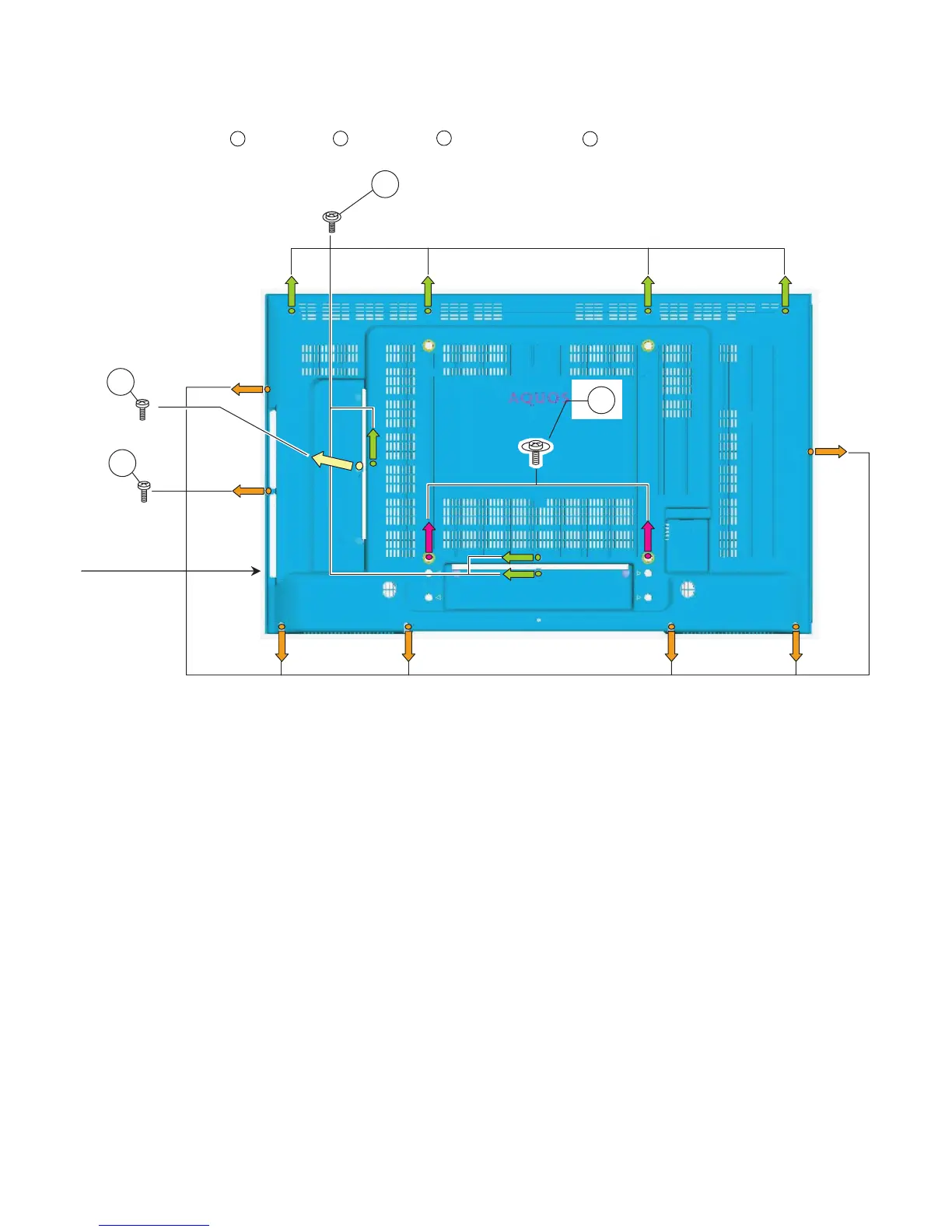

Remove the 1 lock screw
, 2 lock screws
, 7 lock scre
ws
and the 7 lo
ck screws
. Detach the Rear Cabinet.
1
2
3
4
REAR
CABINET
1
3
2
4
17
19
