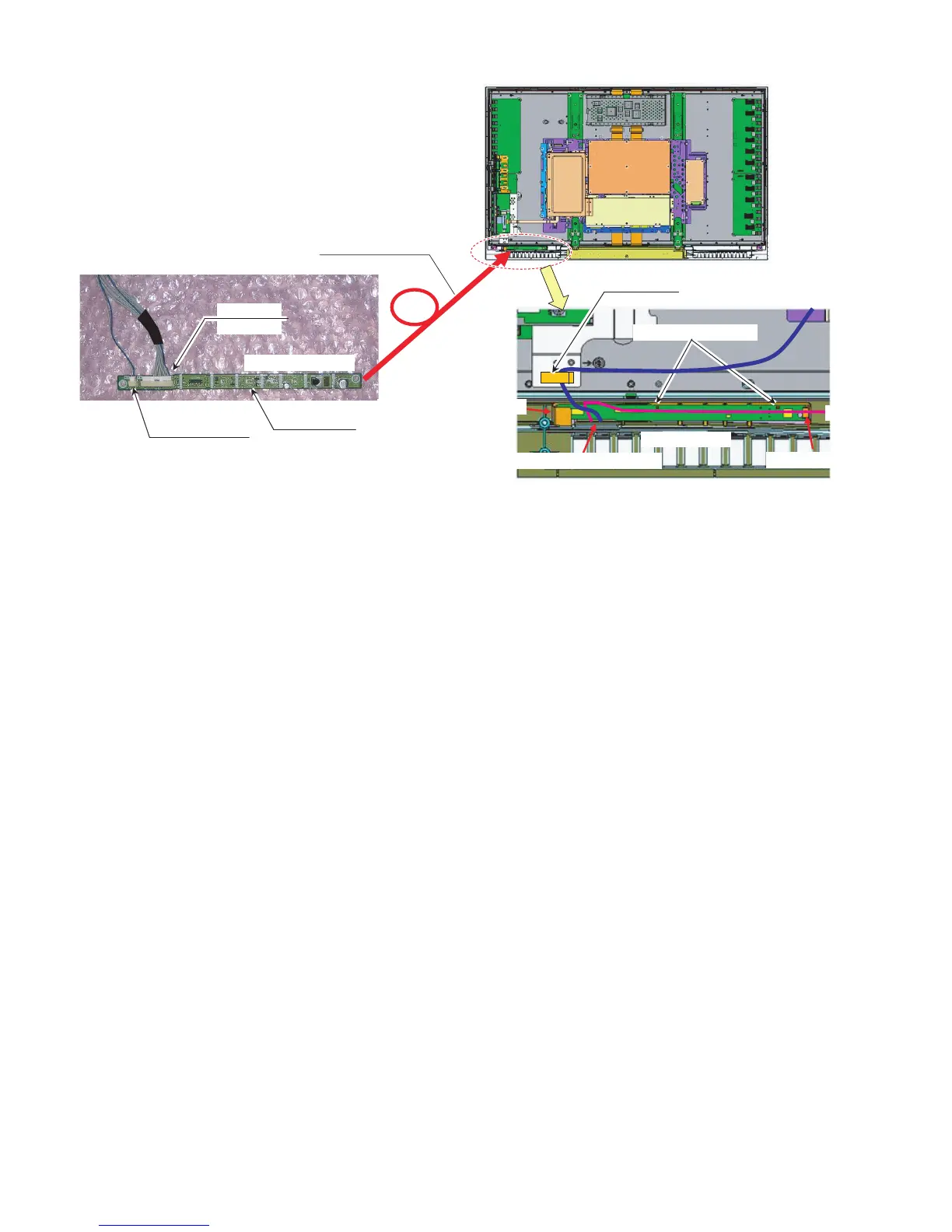

4. Remove all the connectors from PWBs.
5. Remove the R/C, LED Unit.
R/C, LED PWB
Wire "RA"
from OBON
Wire "IL"
from Illumination
Wire "IL"
Wire
R/C, LED PWB Front side
LED PWB Back side
(3-3)Pull out Wire "IL","RA" from bottom
(3-1) Set R/C, LED PWB Under LIB
R/C, LED PWB
(with wire)
(3-2) Push PWB hooked
#Set PWB to gide lib surely
Wire "RA" to WH
