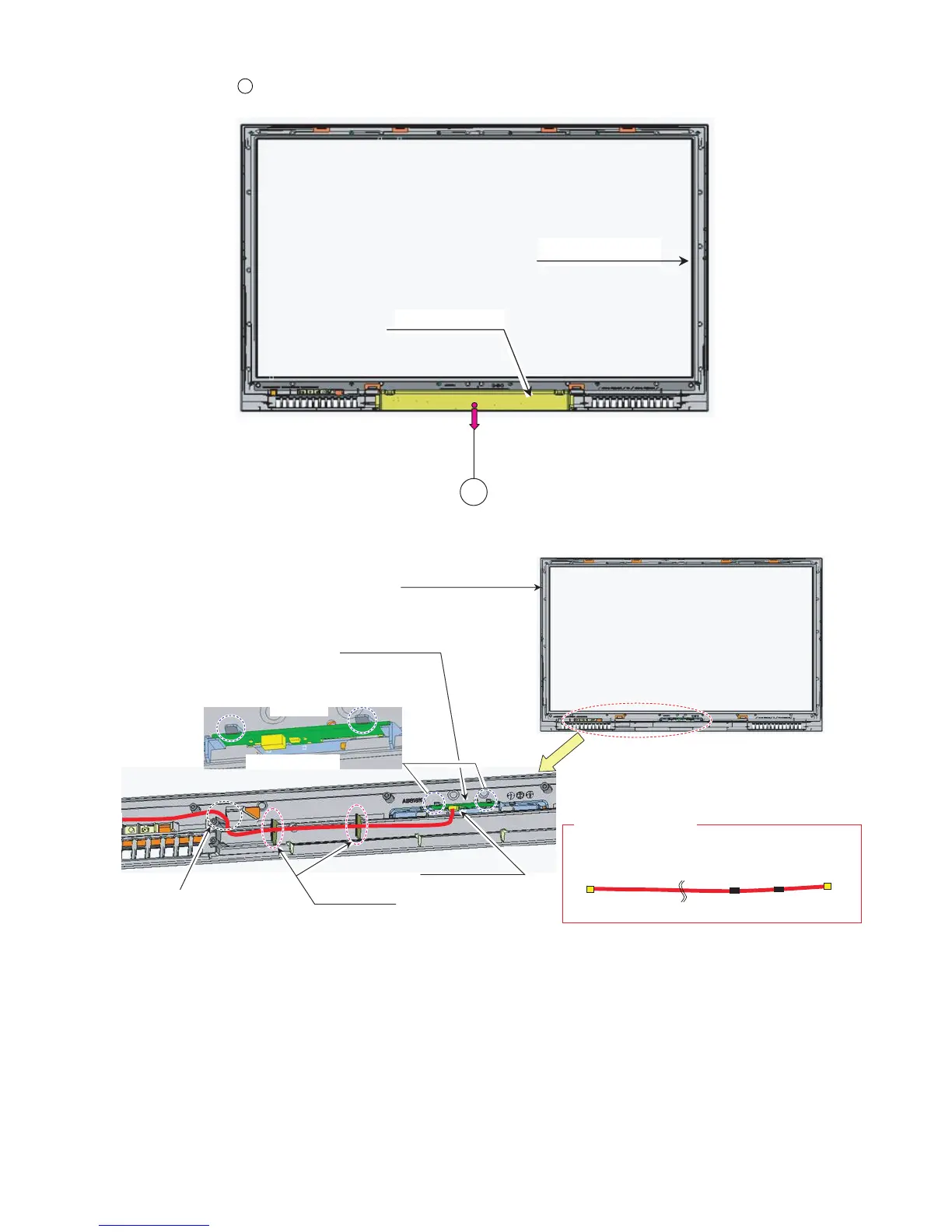

7. Remove the 2 lock screws . and detach the Bottom Cover.
8. Remove all the connectors from PWBs.
7
BOTTOM COVER
FRONT CABINET
7
FRONT CABINET
Wire "IL"
Wire "IL" to rib
Illumination Unit
Wire "IL"
#Hook Surely
#Connector side Down
#Wire "IL" pass between SP Boss
and Panel hooker
To Illumination UnitTo R/C, LED PWB
Wire "IL" Connection Direction
