LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
2 – 22

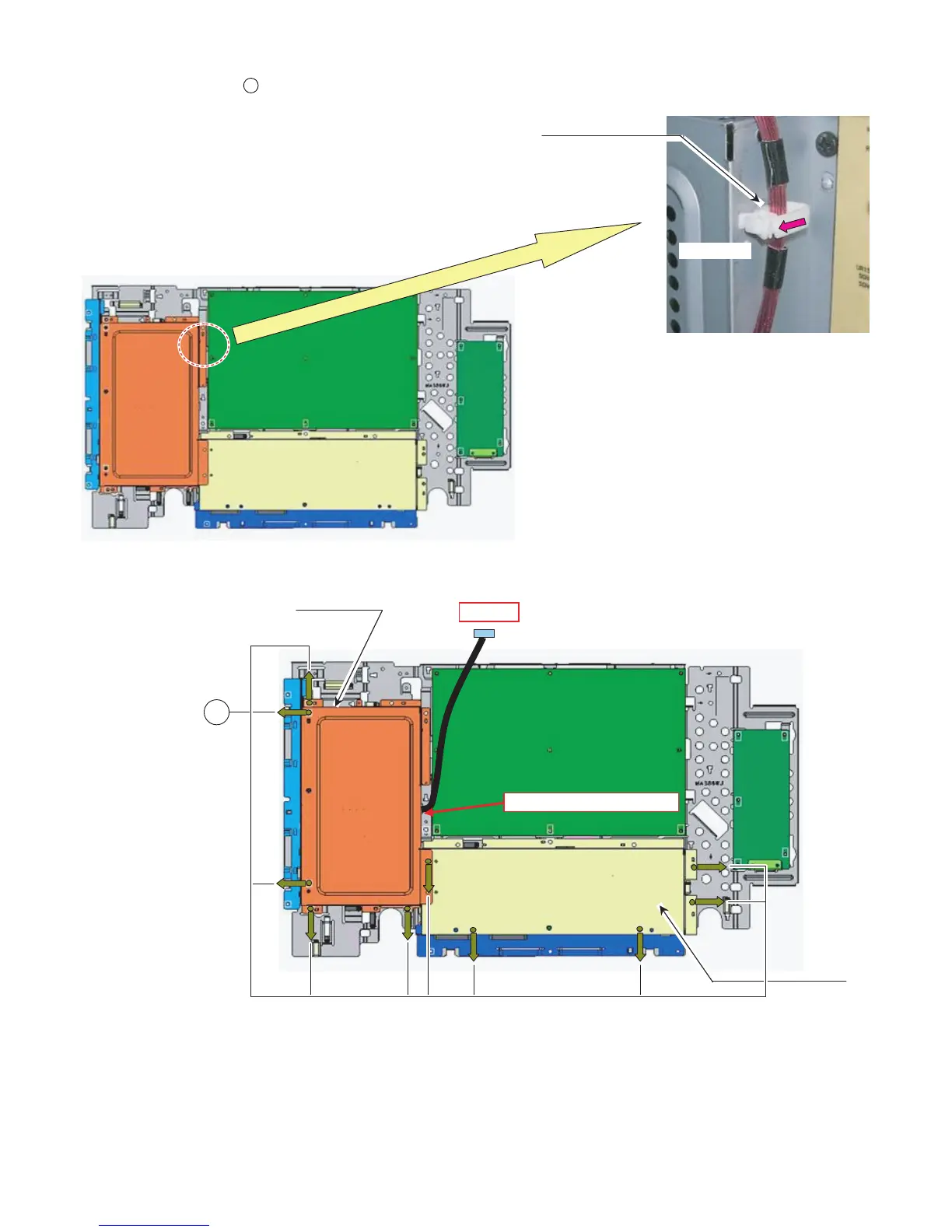

16.Remove all the connectors from PWBs.
17.Remove the 10 lock screws . and detach the Main Shield and AV Shield.
15
Open Side
Wire "LW" to WH
AV SHIELD
MAIN SHIELD
Wire "LW"
Pull out Wire "LW" form Opening
15
