Sharp LC-42XL2E - Page 45

LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
2 – 28

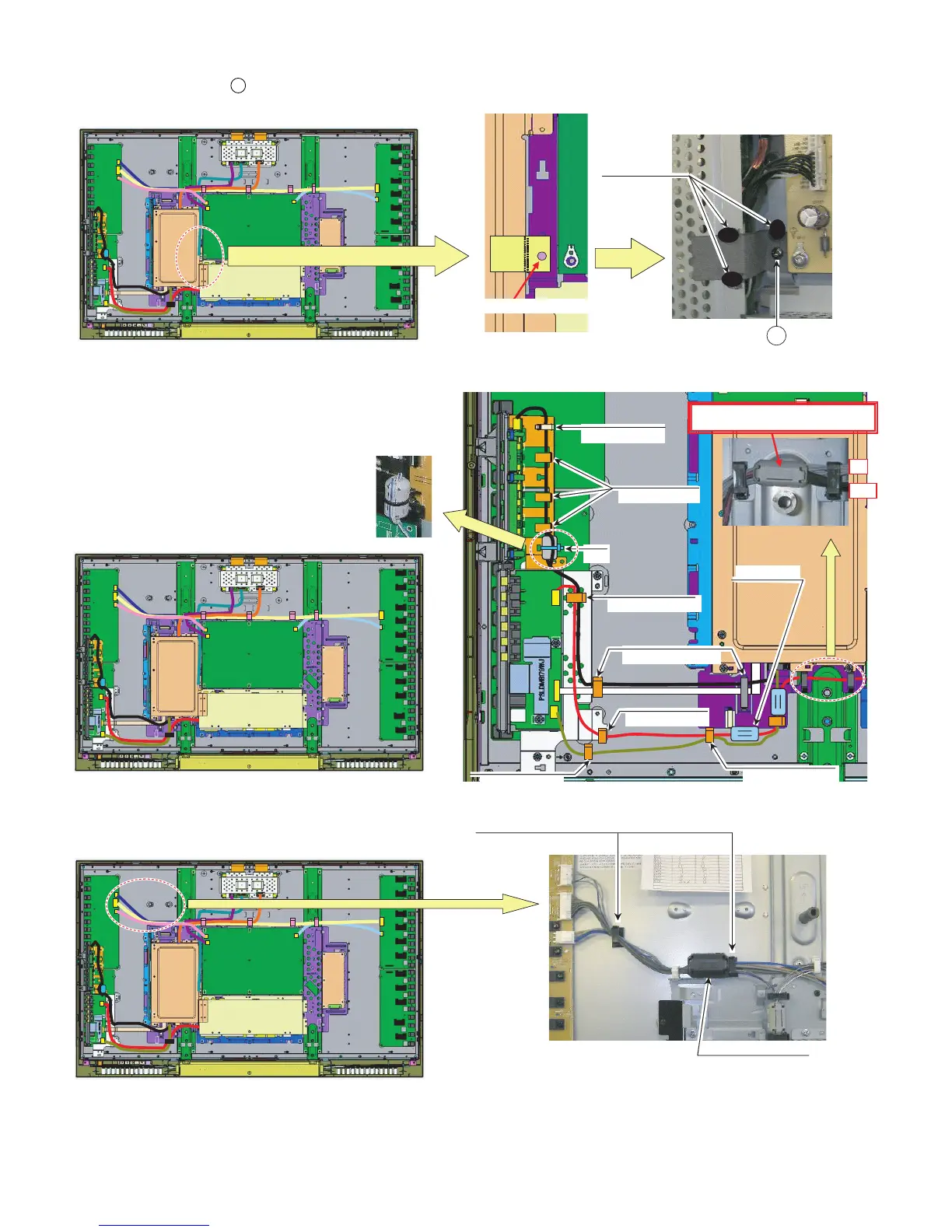

4. Remove the 1 lock screw .
5. Remove all the connectors from PWBs.
6
#Fit CONDUCTIVE Tape hole to SCREW hole
SILICON BOND
6
#For EMC
Set Wire "VD" under Wire "SP-R" (with core)
VD
SP-R
for Wire "VD"
Wire "HM","KM" to WH
Wire "US","VD" to WH
Wire "US" to WH
Wire "VD" to WH
Wire "VD","KM to WH
Wire "KM to WH
Wire "KM" to Hook
WH
for Wire "LA2","LB","LC"
Wire "LA2","LB","LC" to WH
