LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
2 – 52

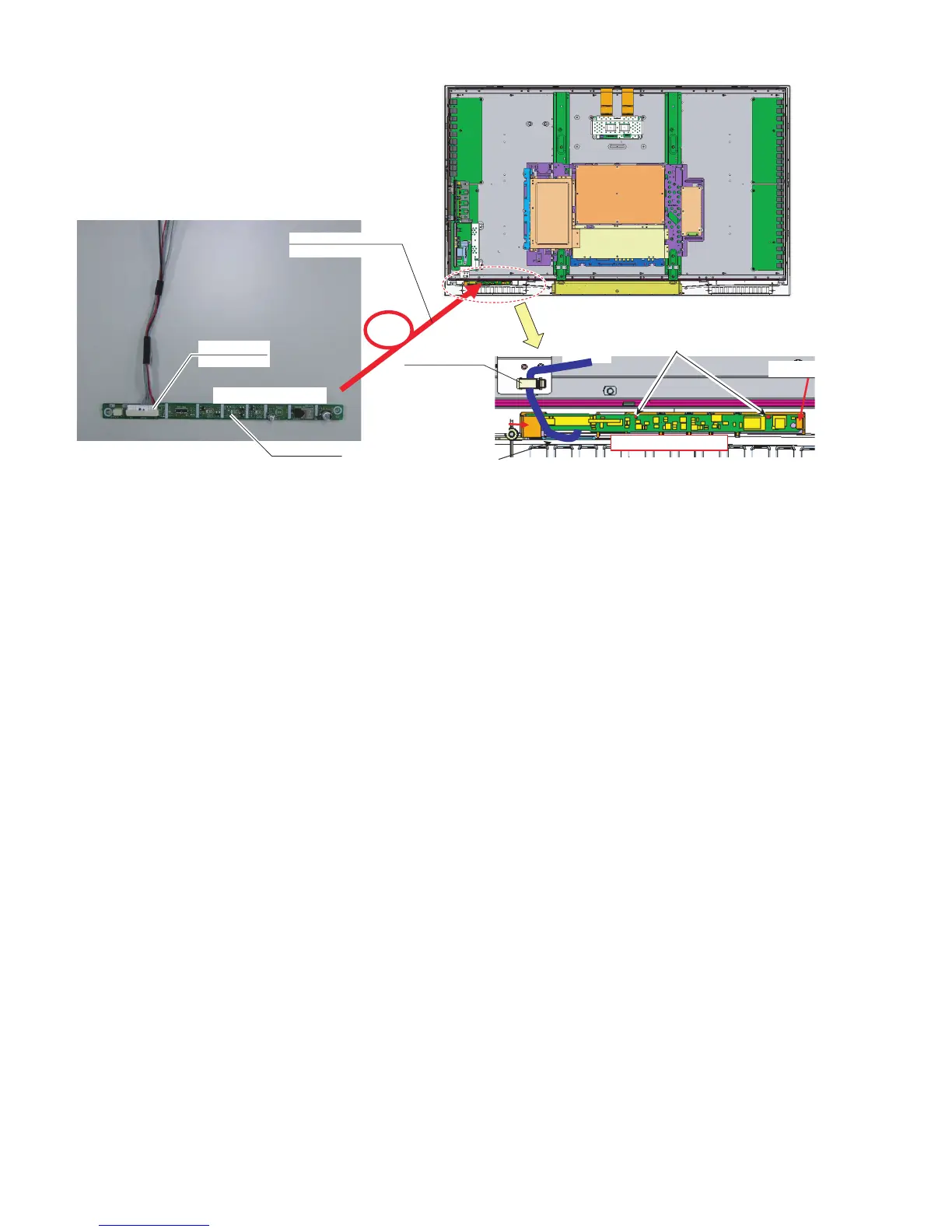

4. Remove all the connectors from PWBs.
5. Remove the R/C, LED Unit.
R/C, LED PWB
Wire "RA"
from OBON
Wire "RA"
R/C, LED PWB Front side
R/C, LED PWB Back side
Pull out Wire "RA" from bottom
Set R/C, LED PWB Under LIB
R/C, LED PWB
(with wire)
Next,Push PWB hooked
#Set PWB to gide lib surely
Wire "RA" to WH
