LC-42XL2E/S/RU, LC-46XL2E/S/RU, LC-46X20E/S/RU, LC-52XL2E/S/RU, LC-52X20E/S/RU
1 – 4
2
3
4
12
13
16
6 7891011
1
15
14
5

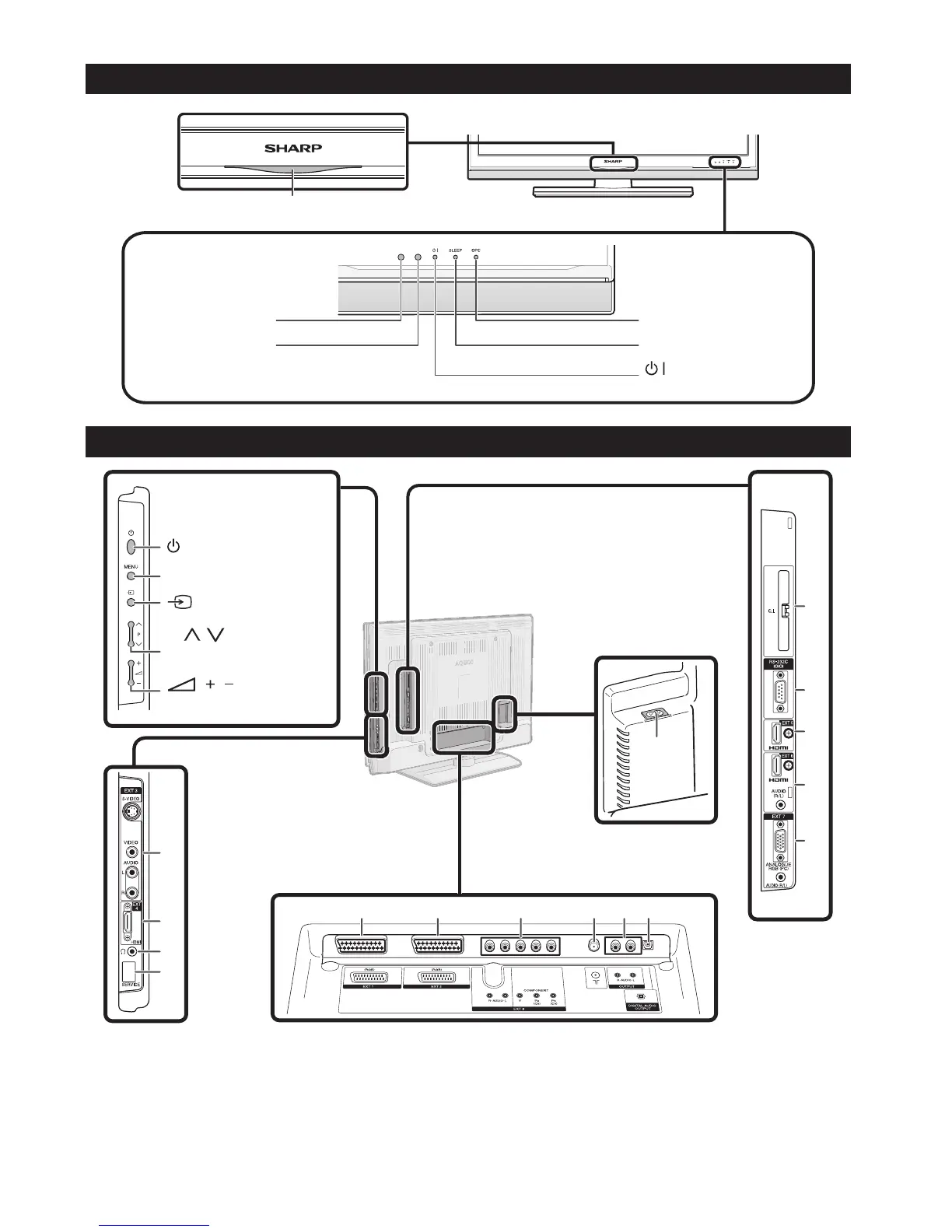

1 AC INPUT terminal
2 EXT 3 terminals
3 EXT 4 (HDMI) terminal
4 Headphones
5 SERVICE socket
6 EXT 1 (RGB) terminal
7 EXT 2 (RGB) terminal
8 EXT 8 (COMPONENT/AUDIO) terminals
9 Antenna terminal
10 OUTPUT (AUDIO) terminals
11 DIGITAL AUDIO OUTPUT terminal
12 COMMON INTERFACE slot
* Remove the cover when inserting the CI
Module.
13 RS-232C terminal
14 EXT 5 (HDMI) terminal
15 EXT 6 (HDMI/AUDIO) terminals
16 EXT 7 (ANALOGUE RGB/AUDIO) terminals
TV (Front view)
TV (Rear view)
Remote control censor
OPC censor
OPC indicator
SLEEP indicator
(Standby/On)
indicator
MENU button
(Power) button
( / )
Volume buttons
P (
/ )
Programme [channel]
buttons
(Input source) button
Blue illumination LED indicator
