19
LC-43LB601U / LC-50LB601U / LC-43LB601C / LC-50LB601C
43" / 50" Full HD LED 1080p Sharp Roku TV

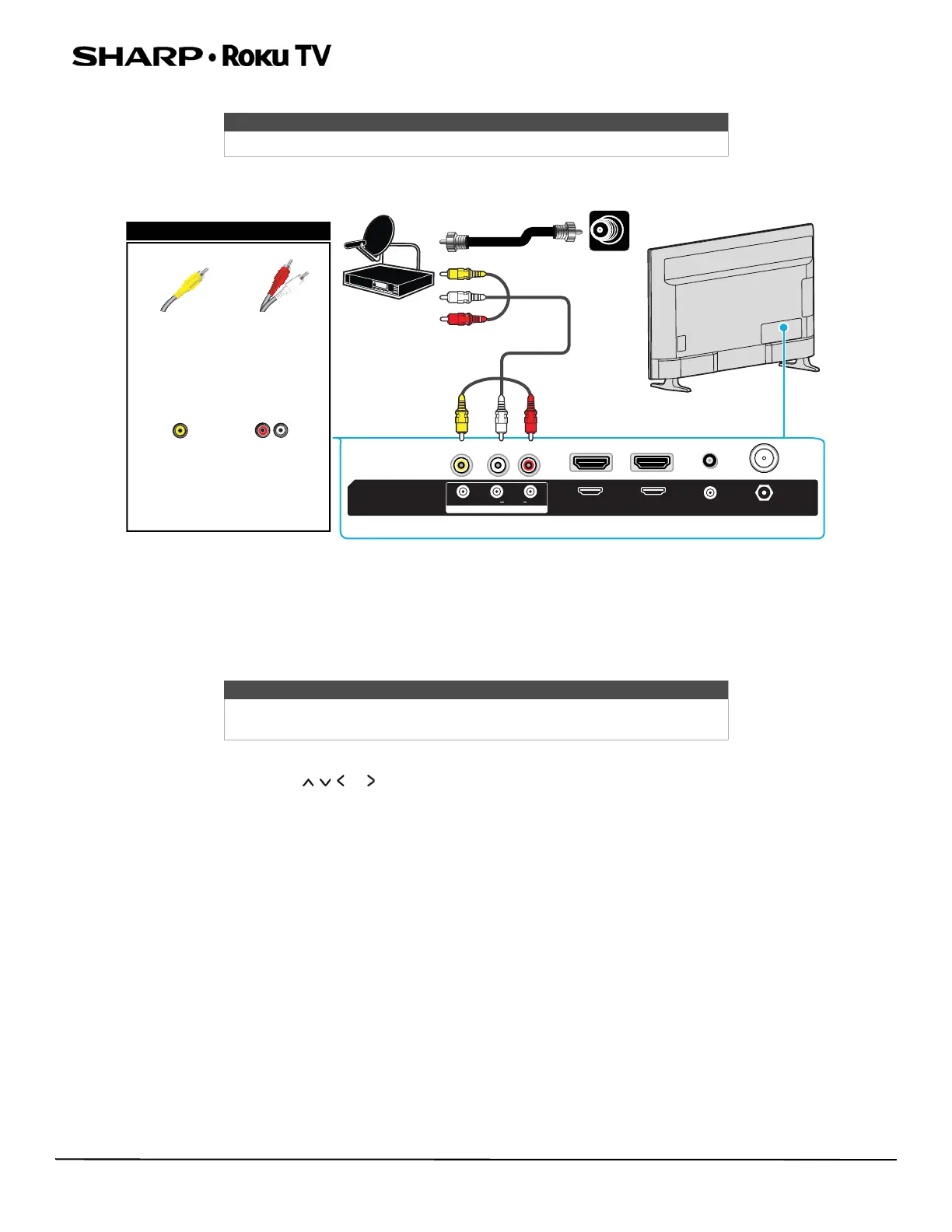

AV (good)
1 Make sure that your TV’s power cord is unplugged and all connected devices are turned off.
2 Connect the incoming cable from the cable wall jack to the cable-in jack on the cable or satellite box.
3 Connect an AV cable (not provided) to the VIDEO jack and L and R AUDIO jacks on the back of your TV and to the AV and
audio out jacks on the cable or satellite box.
4 Plug your TV’s power cord into a power outlet, turn on your TV, then turn on the cable or satellite box.
5 On the Home screen, press or to highlight the AV tile, then press OK.
Notes
Cables are often color-coded to match color-coded jacks.
Note
When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.
AUDIO OUT
A
V IN
VIDEO
AUDIO
L
R
ANT
/CABLEHDMI2HDMI1(ARC)
Cable or
satellite box
AV cable
Back of TV
AV cable
connector
AV jack
Audio cable
connectors
Analog
audio jacks
On your TV
Cable
wall jack
