LC-43LB601U / LC-50LB601U / LC-43LB601C / LC-50LB601C
43" / 50" Full HD LED 1080p Sharp Roku TV
AV (good)

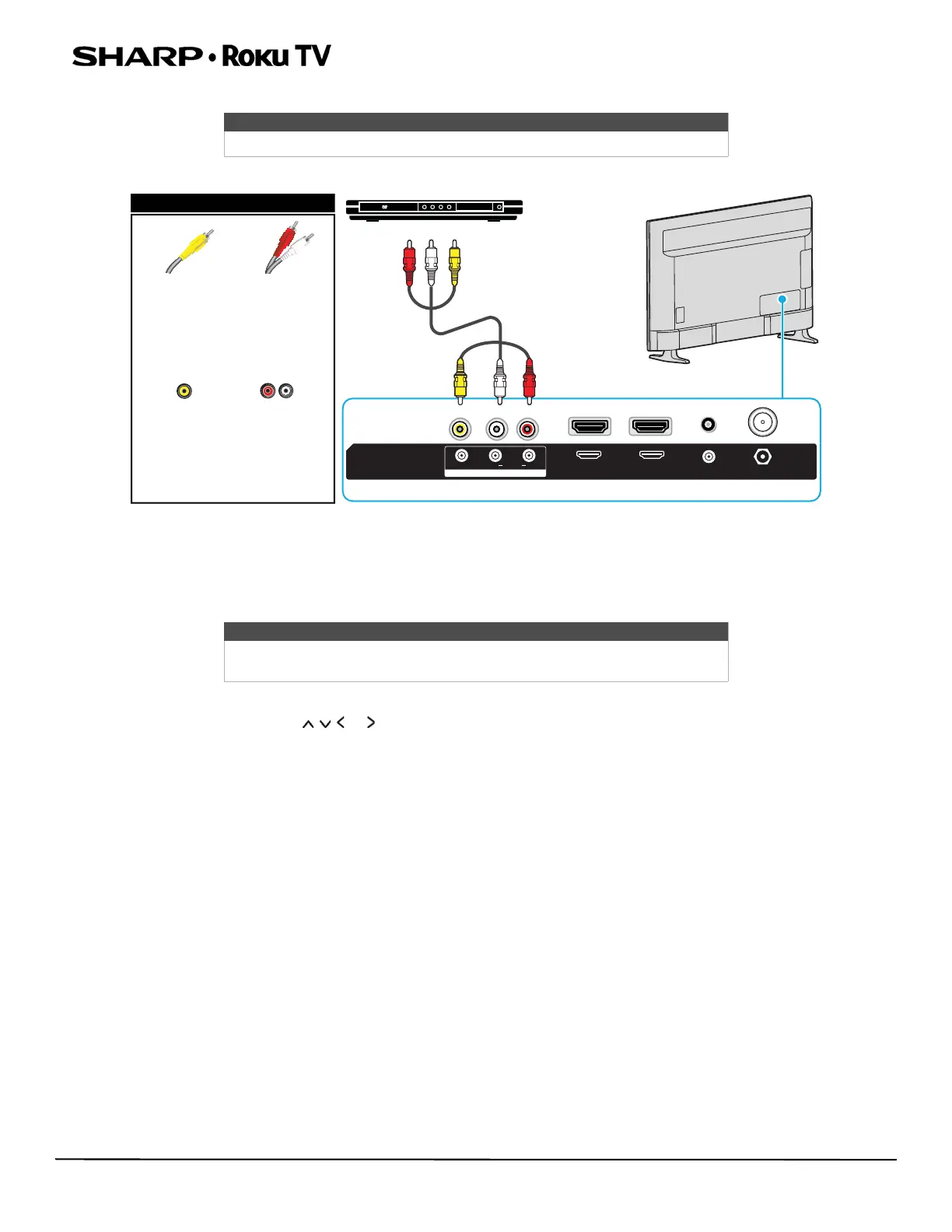

1 Make sure that your TV’s power cord is unplugged and the DVD or Blu-ray player is turned off.
2 Connect an AV cable (not provided) to the VIDEO jack and L and R AUDIO jacks on the back your TV and to the AV OUT
jacks on the DVD or Blu-ray player.
3 Plug your TV’s power cord into a power outlet, then turn on your TV and DVD or Blu-ray player.
4 On the Home screen, press or to highlight the AV tile, then press OK.
Note
Cables are often color-coded to match color-coded jacks.
Note
When you connect the audio using the L and R AUDIO jacks, the audio
output is analog.
AUDIO OUT
A
V IN
VIDEO
AUDIO
L
R
ANT
/CABLEHDMI2HDMI1(ARC)
AV cable
Back of TV
AV cable
connector
AV jack
Audio cable
connectors
Analog
audio jacks
DVD or Blu-ray player
On your TV
