14.Remove the R/C, LED Unit.
15.Remove the 3 lock screws and detach the Mini AV Ass’y.
16.Remove the 2 lock screws, 2 lock screws and detach the Mini AV Shield and SIDE Unit from the Mini AV Ass’y.
17.Remove the KEY Unit from the Mini AV Ass’y.
18.Remove the 4 lock screws and detach the LCD Control Shield.
19.Remove the 14 lock screws and detach the Panel Support Angle.
20.Remove the 8 lock screws and detach the LCD Panel Module.

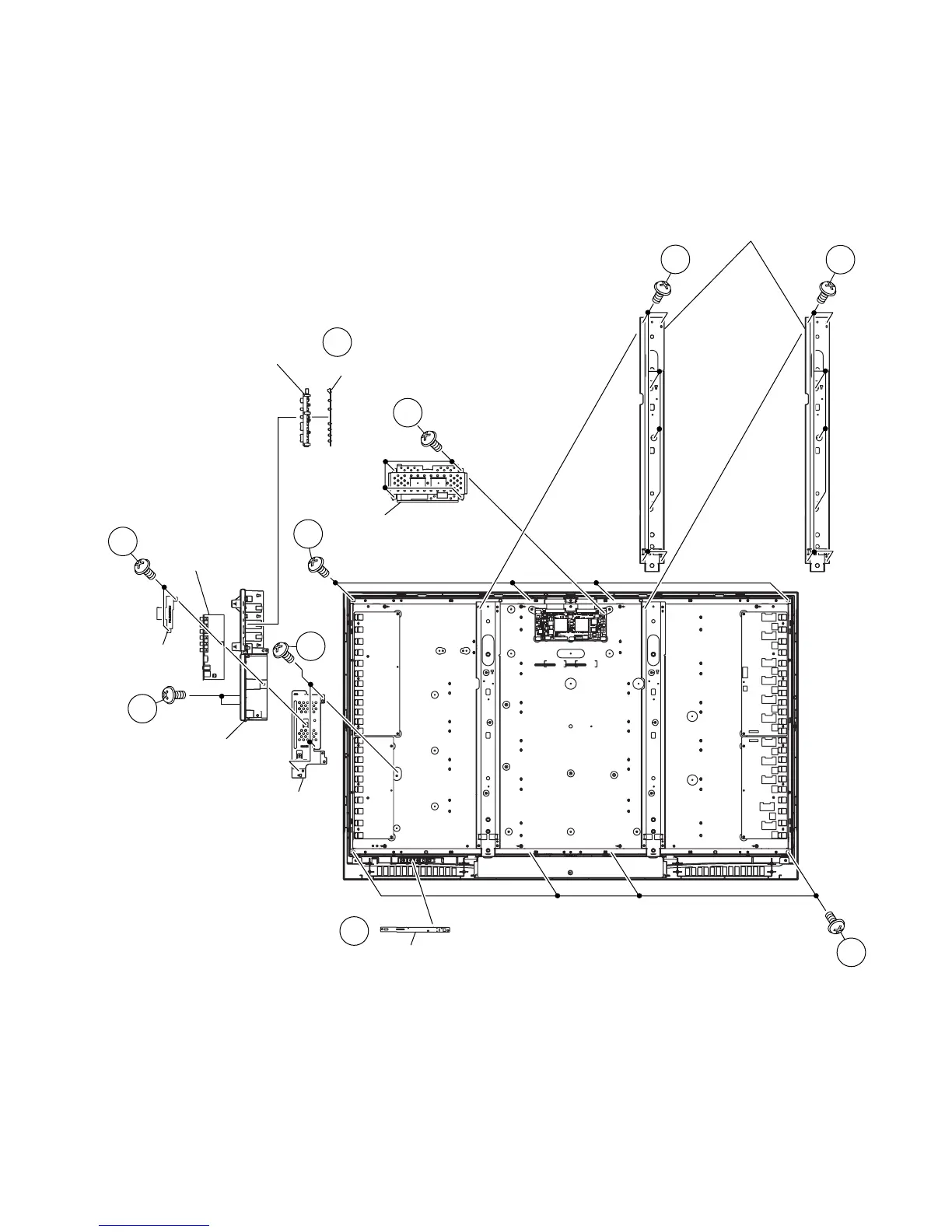

Panel Support Angle
LCD Control Shield
Operation Button
KEY Unit
R/C, LED Unit
Mini AV Angle
Mini AV KEY Cover
SIDE Unit
Mini AV Shield
15
16
17
18
19
19
16
14
20
20
