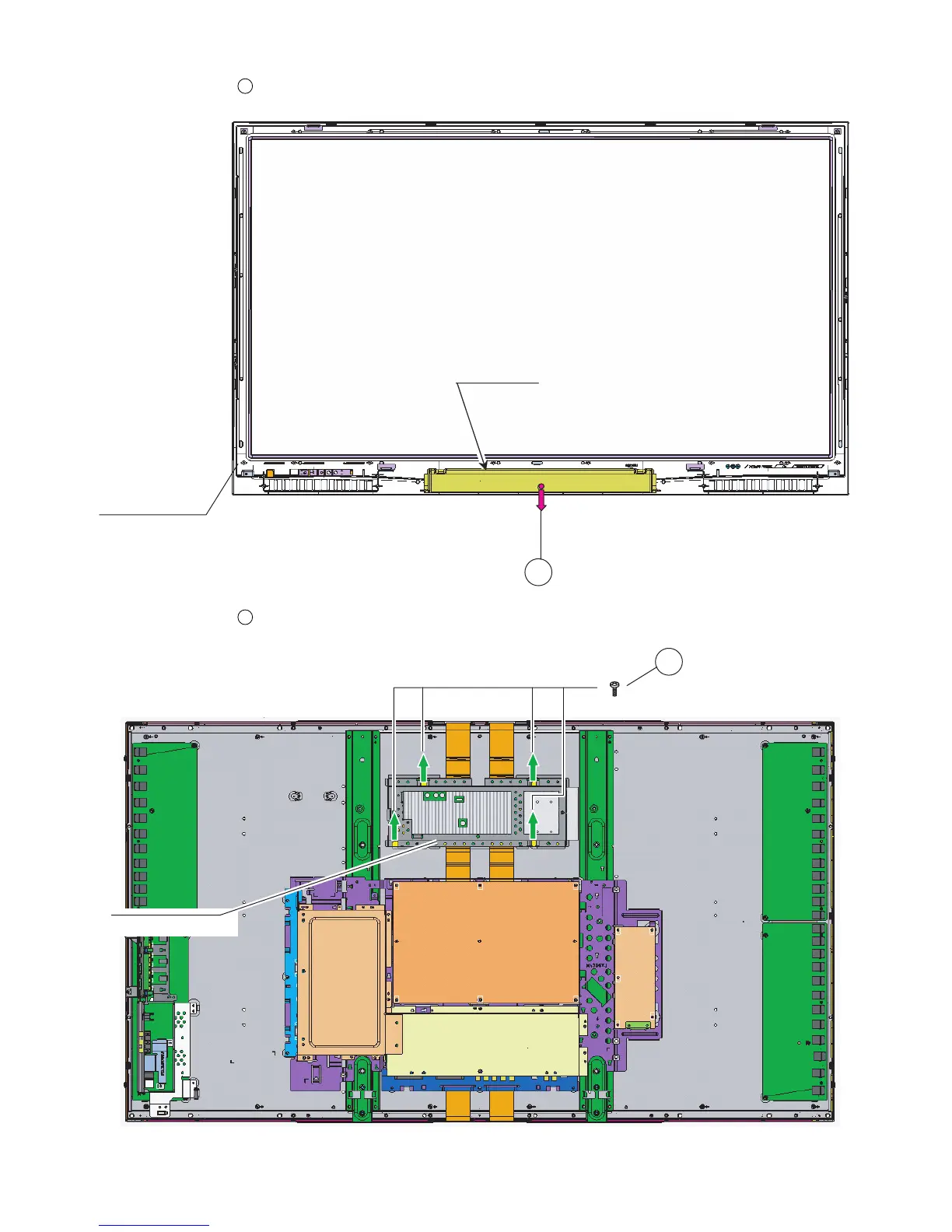

7. Remove the 2 lock screws . and detach the Bottom Cover.
8. Remove the 4 lock screws . and detach the CTL SHIELD with RADIATOR.
7
FRONT CABINET
Bottom Cover
7
8
CTL Shield Sub Ass'y
8
