LC-46D82U/LC-52D82U
2 – 17

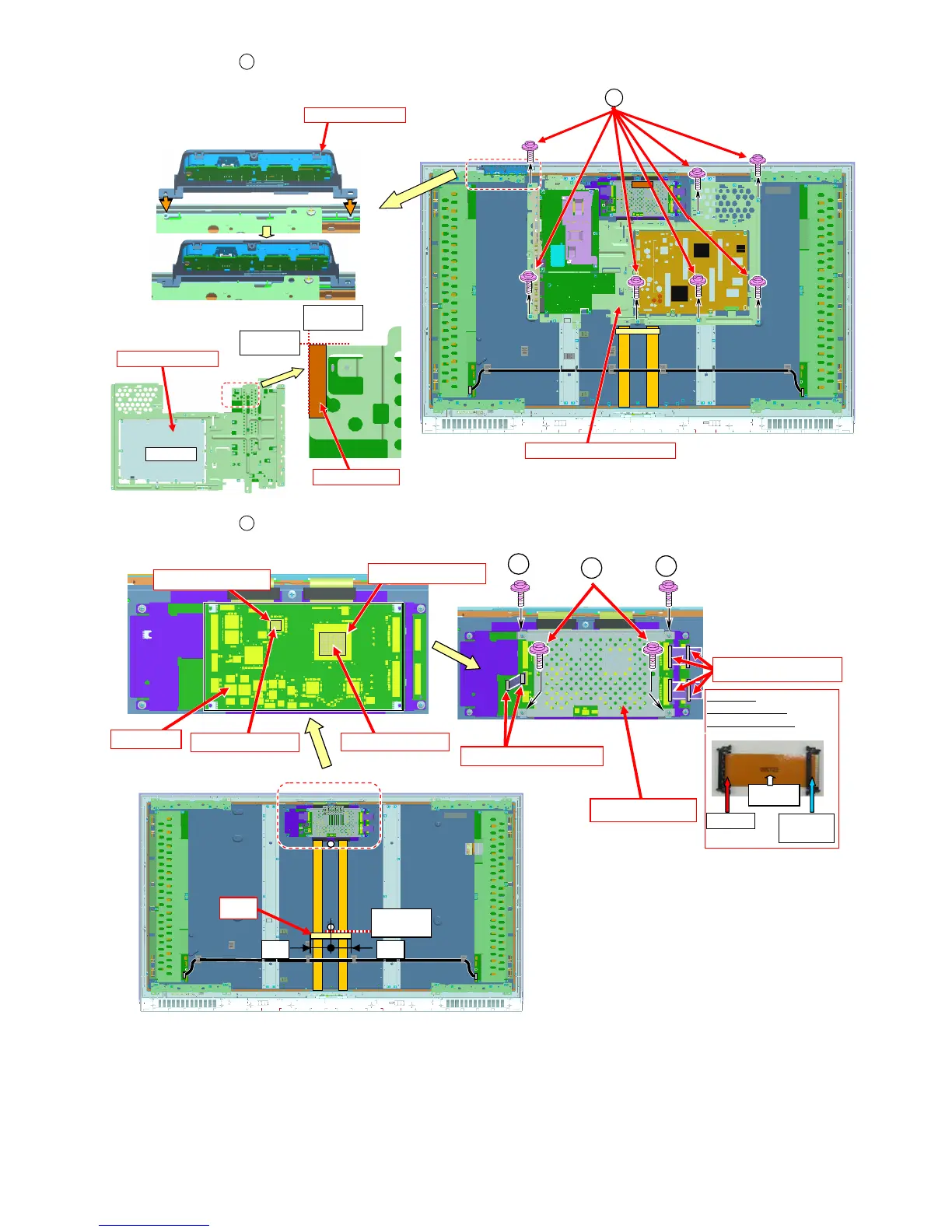

12.Remove the 7 lock screws and PWB Ass’y unit.
13.Remove the 4 lock screws and detach the FRC PWB Angle.
10
㵘㪧㪩㪜㪧㪘㪩㪜㪛㩷㪫㪦㪧㩷㪚㪦㪭㪜㪩
㵘㵘
㵘㵘
PREPARED PWB ASEMBLY UNIT
Base line
(Edge of Tray)
Base line
(Edge of Tray)
㵘㵘
GASKET 13×7×50
㵘㵘PWB ASEMBLY UNIT
BACK SIDE
10
11
FRC_PWB_ANG
FL: WIRE (LCDCON-FRC)
FRC-LCDCONT(FPC)
FRC_UNIT
COOL SHEET IC6001
SILICON GREASE
COOL SHEET IC5801
SILICON GREASE
