LC-46D82U/LC-52D82U
2 – 18

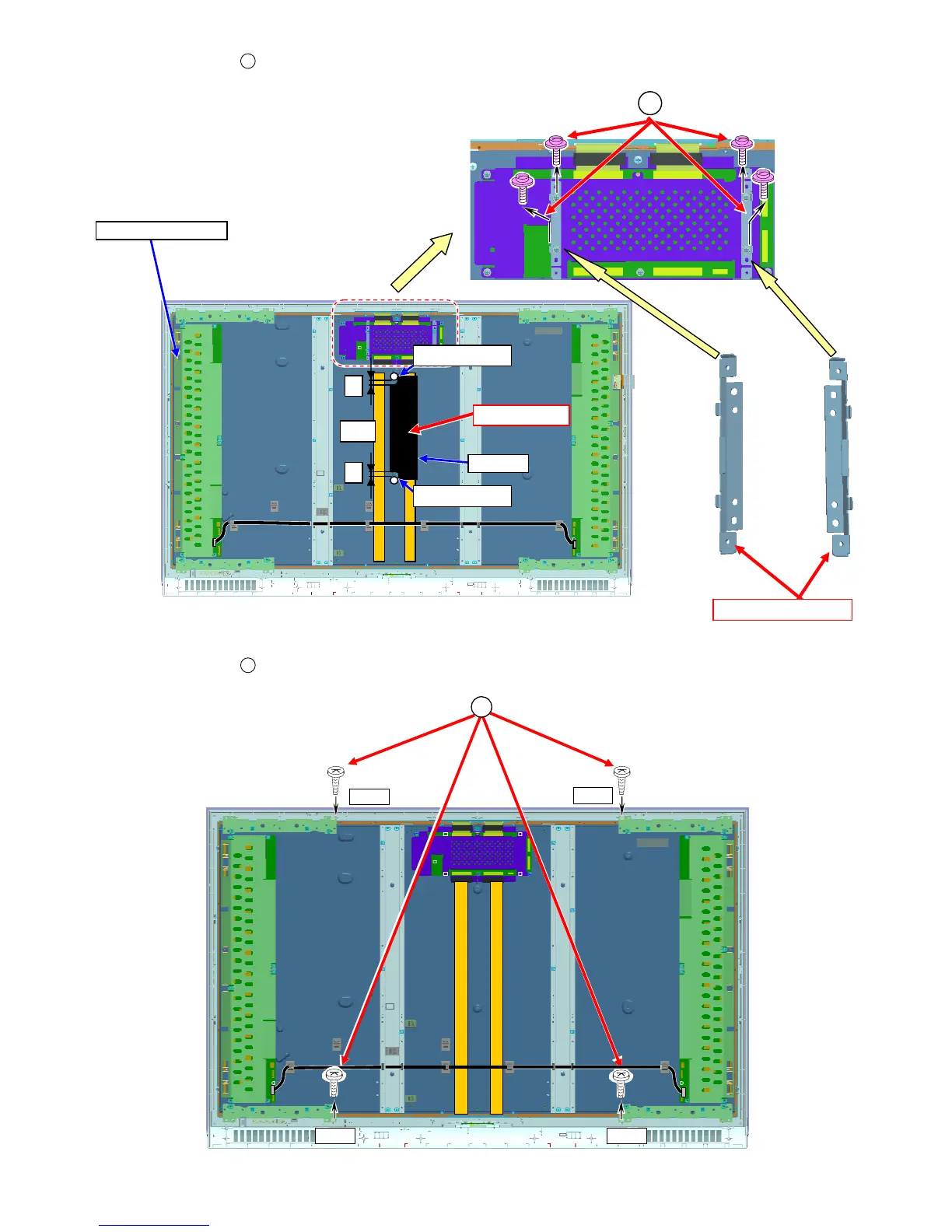

14.Remove the 4 lock screws and detach the FRC PWB Set Angle.
15.Remove the 4 lock screws and detach the Panel Module Ass’y.
12
PANEL MODULE ASS’Y
FRC PWB SET ANG
㪘
㪙
㪘㪔㪙
㪝㪠㪫㩿㪚㪦㪩㪥㪜㪩㪀
㪝㪠㪫㩿㪚㪦㪩㪥㪜㪩㪀
ARRIER SHEET
Put pastes
12
13
INSIDE
INSIDE
INSIDEINSIDE
13
